ID: 1189728
5906623496402
zł234.32
Tax included

zł190.50 tax excl.

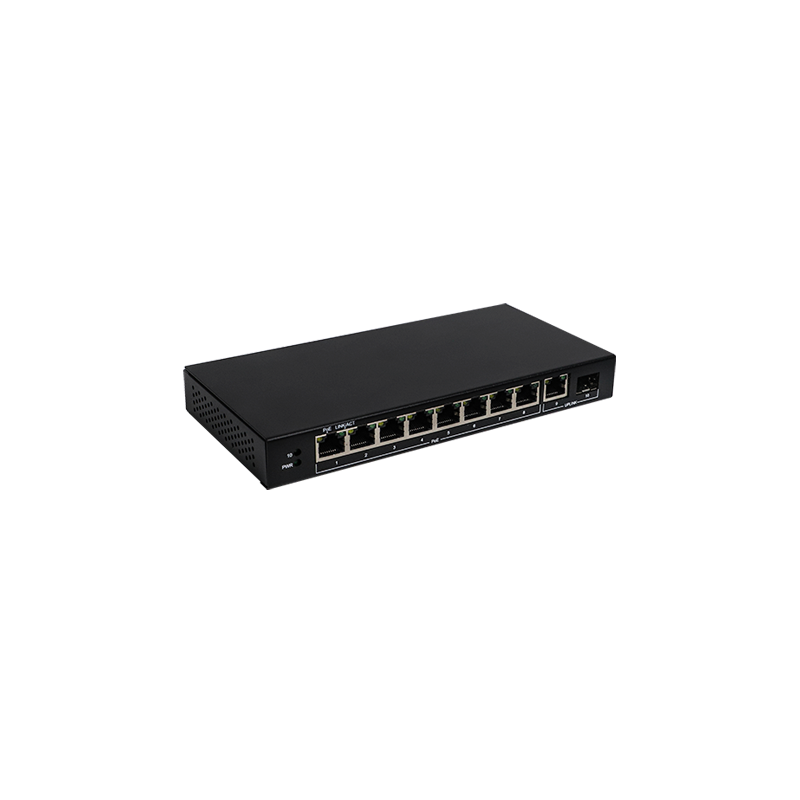

10-Port Gigabit PoE Switch, equipped with 8 IEEE 802.3af/at compliant Ethernet PoE ports, providing up to 30W per port and 120W total power, as well as 1 Gigabit port and 1 SFP fiber port. With One-Click VLAN, support for energy-saving IEEE 802.3az standard, and a rugged metal housing that is resistant to surges and electrostatic discharge, the switch is suitable for demanding network environments, offering flexible desktop or wall mounting options. PUSR USR-S1210P

24h
Available
Available quantity: 5
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The S1210P is a 10-port Gigabit PoE switch designed for high performance and flexibility in various network environments. Equipped with 8 PoE Ethernet ports, it supports IEEE 802.3af/at standards, providing up to 30W per port and a total power output of 120W. Additionally, it features 1 Gigabit Ethernet uplink port and 1 SFP fiber port, allowing diverse network configurations.


The switch supports line-speed data transmission and automatic speed negotiation on all ports. With the One-Click VLAN function, VLAN isolation can be easily enabled to prevent network loops and reduce broadcast storms. It also supports IEEE 802.3az Energy-Efficient Ethernet (EEE), which lowers power consumption when idle. The durable matte metal housing enhances resistance to pressure, wear, and high temperatures while also providing protection against electrostatic discharge (ESD) and power surges. The switch offers two mounting options: desktop and wall-mounted, ensuring flexibility for different working environments.

Features

  • Supported standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3af/at
  • Switching capacity: 20G
  • Packet forwarding rate: 14.88Mpps
  • MAC address table: 4K
  • Transmission mode: Store-and-forward
  • Ethernet ports: 1 x RJ45 + 1 x SFP + 8 x PoE (10/100/1000 Mbps, auto MDI/MDIX)
  • Uplink ports: 1 x RJ45 (10/100/1000 Mbps), 1 x SFP (1000 Mbps)
  • PoE ports: 8 x RJ45, compliant with IEEE 802.3af/at, max. 120W total power, up to 30W per port
  • VLAN support: Yes, VLAN mode switch
  • Supported cables: UTP Cat 5 and above
  • Maximum transmission distance: 100m
  • Power supply: 100 to 240V AC, 50/60Hz, output: 53.5V DC / 1.22A
  • Power consumption: ≤5W (without PoE)
  • EMC protection:
    • IEC 61000-4-2, level 4, ESD
    • IEC 61000-4-5, level 4, surge protection
  • Mounting options: Desktop, wall-mounted
  • Operating temperature: -10℃ ~ 45℃
  • Storage temperature: -40℃ ~ 70℃
  • Operating humidity: 5% - 95% (non-condensing)
  • Dimensions: 200 x 100 x 26 mm
1189728

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
