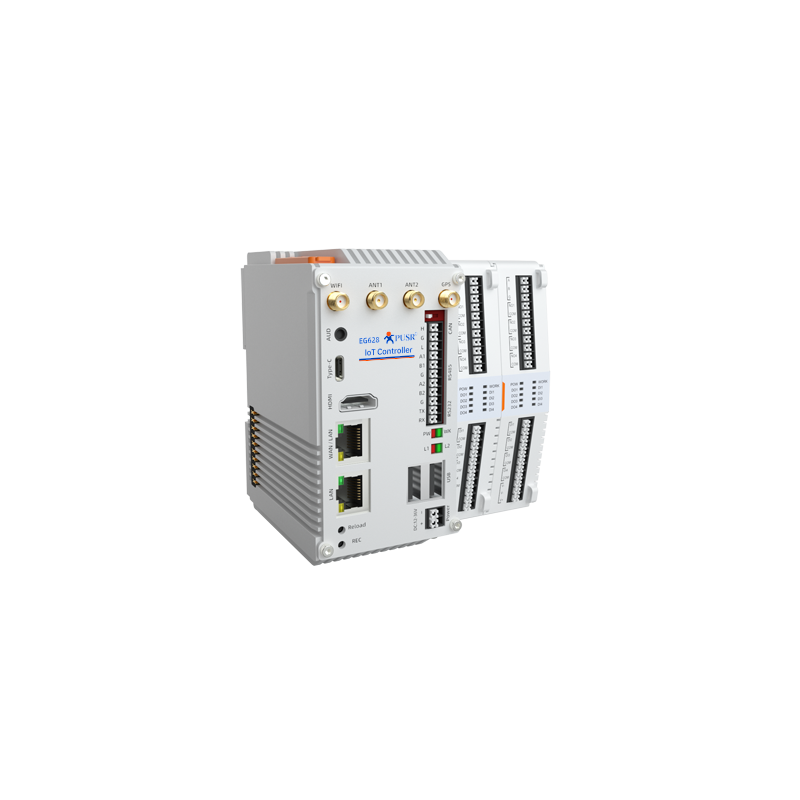

USR-EG628 – Industrial Edge Computing Device with 4G Communication, GPS, and AI NPU
search
  • USR-EG628 – Industrial Edge Computing Device with 4G Communication, GPS, and AI NPU
ID: 1199949
zł999.01
Tax included

zł812.20 tax excl.

USR-EG628 is an industrial edge computer with support for LTE, WiFi 6, GPS, and a rich set of wired and wireless interfaces. Thanks to its 1 TOPS NPU processor and support for popular AI frameworks, it enables the deployment of machine learning and data analysis applications directly on the device. It provides a comprehensive solution for IoT, industrial automation, and applications requiring reliable edge data processing.

24h
Available
Available quantity: 1
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The USR-EG628 is an advanced edge computing device designed for industrial applications, automation, IoT, and artificial intelligence. Equipped with a quad-core ARM Rockchip RK3562J processor (2.0 GHz), integrated ARM G52 GPU, and a neural processor NPU with 1.0 TOPS@INT8 performance, it enables local data processing, machine learning, and real-time image analysis. The system runs on Linux Ubuntu 20.04 and supports development environments C/C++, Node-RED, and Docker, which facilitates integration into existing industrial systems.

The device provides a rich set of interfaces: gigabit and fast Ethernet, WiFi 6 (2.4/5 GHz), GPS, 4G LTE (Dual SIM), HDMI 4K, USB 2.0/3.0, RS232, RS485, CAN, and expandable I/O. Additionally, it offers compatibility with many industrial protocols (Modbus, OPC UA, IEC104, IEC61850, Bacnet), as well as a built-in RTC clock and scheduling support.

Properties

  • Processor: Rockchip RK3562J, ARM quad-core 64-bit, up to 2.0 GHz
  • GPU: ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 2D hardware acceleration
  • NPU: 1.0 TOPS@INT8, supports Caffe, MXNet, TensorFlow, TFLite, ONNX, Darknet models
  • Operating system: Linux Ubuntu 20.04
  • RAM: DDR4 4 GB
  • Internal storage: eMMC 32 GB
  • SD slot: up to 128 GB
  • 1 × Ethernet 10/100/1000 Mbps
  • 1 × Ethernet 10/100 Mbps
  • Dual-band WiFi (2.4 GHz and 5 GHz, IEEE 802.11 a/b/g/n/ac/ax)
  • 4G LTE support (Dual SIM: configurations depending on version)
  • Built-in GPS/BD, sensitivity -162 dBm, accuracy <10 m
  • 1 × HDMI 2.0 (4K60fps)
  • 1 × headphone output
  • 2 × USB 2.0 HOST
  • 1 × USB 3.0 OTG (Type-C, default HOST)
  • 1 × RS232
  • 2 × RS485
  • 1 × CAN
  • Expandable I/O
  • RTC clock: built-in battery, supports power on/off scheduling
  • Decoding: H.265/H.264 4K60fps
  • Encoding: H.265/H.264 1080p100fps
  • ISP up to 8 Mpx, HDR support
  • Edge computing: over 2000 points, data acquisition and reporting support
  • Protocol conversion: Modbus, OPC UA, JSON, IEC104, IEC61850, Bacnet
  • PLC protocol support: IEC104, IEC61850, DL/T645 and others
  • Compliance with IEC61131-3, supports 5 PLC programming languages
  • Power LED (red)
  • Work LED (green, blinking)
  • 2 × configurable LEDs (L1, L2)
  • Upgrade key (firmware update)
  • Factory restore (reset to defaults)
  • Power supply: 9–36 V DC (wide range)
  • Operating temperature: -20°C to +70°C
  • Operating humidity: 5%–95%

Set includes

  • USR-EG628 module
  • Mounting accessories
  • User manual
