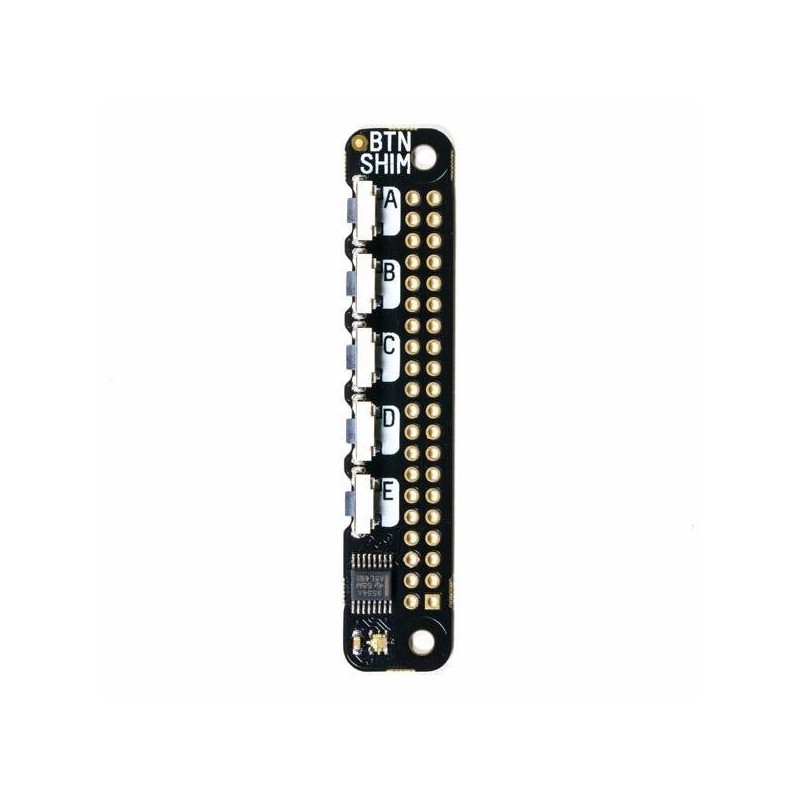

A module with 5 buttons and an RGB diode, designed to work with the Raspberry Pi. The buttons are connected to the minicomputer through the GPIO expander controlled by the I2C interface. Pimoroni PIM301

4 weeks
Awaiting delivery
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.



Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

A module with 5 buttons and an RGB diode, designed to work with the Raspberry Pi. The buttons are connected to the minicomputer through the GPIO expander controlled by the I2C interface. The board has a small size and can be plugged between the Raspberry Pi and a full-size HAT, as well as serving as a separate board. It allows you to add an interface for interaction with the user, e.g. when building an audio player or for controlling lighting. Documentation with a library and examples in Python is available in the GitHub repository.

Attention!
The kit does not include the Raspberry Pi. They must be purchased separately.

Features

  • 5 buttons at right angles
  • RGB LED (APA102)
  • Buttons operated by the I/O expander (TCA9554A)
  • Board in SHIM format (PCB 0.8 mm thick)
  • Can be used with HAT and pHAT caps
  • Compatible with all Raspberry Pi models with a 40-pin connector
  • Python library
  • Dimensions: 65 x 13 x 4.5 mm

Kit contains

  • Button SHIM module
  • 2x20 pin female connector
585223

Data sheet

Compatible with
Raspberry Pi 5/4/3/2/1 A/B, Zero/Zero 2 H/WH
