DC blower fan 8,6W 97x94x33 mm
ID: 1193664
zł66.42
Tax included
zł54.00 tax excl.

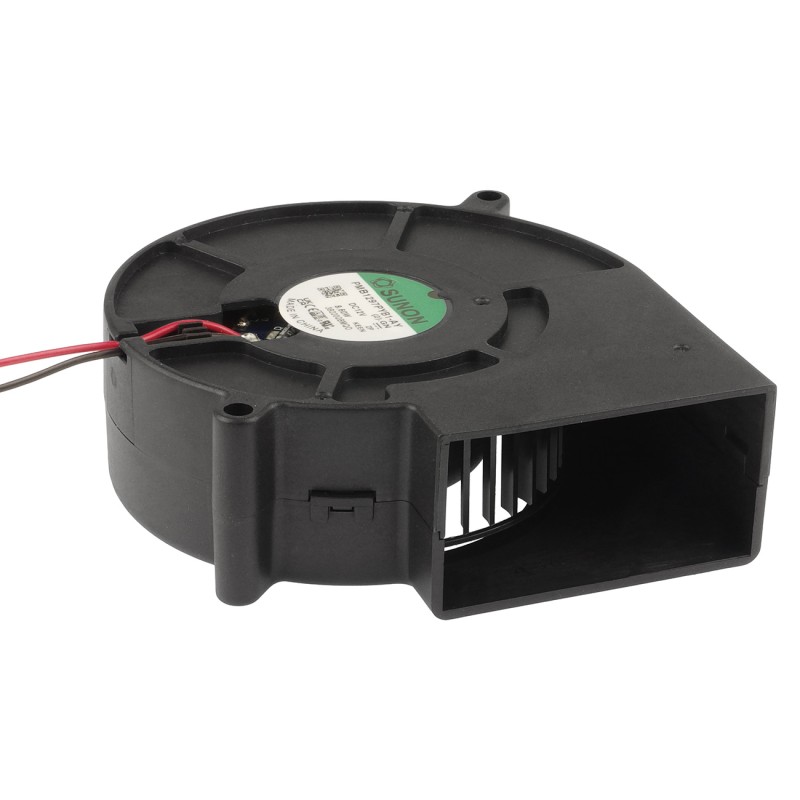

The SUNON blower fan with dimensions 97x94x33 mm, with an operating voltage of 6...13.8V, provides effective cooling with high air flow and high static pressure, ideal for demanding applications in difficult working conditions. Sunon PMB1297PYB1-AY
Description
SUNON blower fan with dimensions of 97x94x33 mm, designed for efficient cooling in applications requiring high air flow. It operates in the voltage range of 6...13.8V, offering an efficiency of 51.85 m³/h with a power consumption of 8.6W. With a rotation speed of 3600 rpm (±10%) and a noise level of 55.8 dBA, the fan provides effective cooling at a high static pressure of 23.35 mm H2O. Equipped with a ball bearing and a brushless DC motor, it ensures long life and reliability. The housing and impeller made of durable thermoplastic meet stringent UL94V-0 and ECE R-118 flammability standards, which guarantees safety in various operating conditions. Additionally, the fan has an auto-restart function, which increases its reliability, especially in the event of power outages.
Properties
- Operating voltage: 6...13.8V
- Power consumption: 8.6W
- Rated current: 720mA
- Productivity: 51.85 m³/h
- Noise level: 55.8 dBA
- Rotational speed: 3600 rpm (±10%)
- Bearing type: ball
- Static pressure: 23.35 mm H2O
- Current and power consumption tolerance: ±15%
- Insulation resistance: min. 10MΩ
- Housing and impeller material: thermoplastic
- Insulation class: E
- Flammability class: UL94V-0, ECE R-118
- Pinouts: cable x2
- Wire size: 24 AWG
- Cable length: 0.3 m
- Operating temperature: -10...70°C
- Additional functions: autorestart
- Motor: Brushless DC
1193664
Data sheet
- Voltage
- 6 - 13,8 V
- Power
- 8,6 W
- Length
- 97 mm
- Width
- 94 mm
- Height
- 33 mm
- Weight
- Other
- Noise level
- 55,8 dBA
- Air flow efficiency
- 51,85 m³/h
- Rated current
- 720 mA
- Fan type
- Blower
