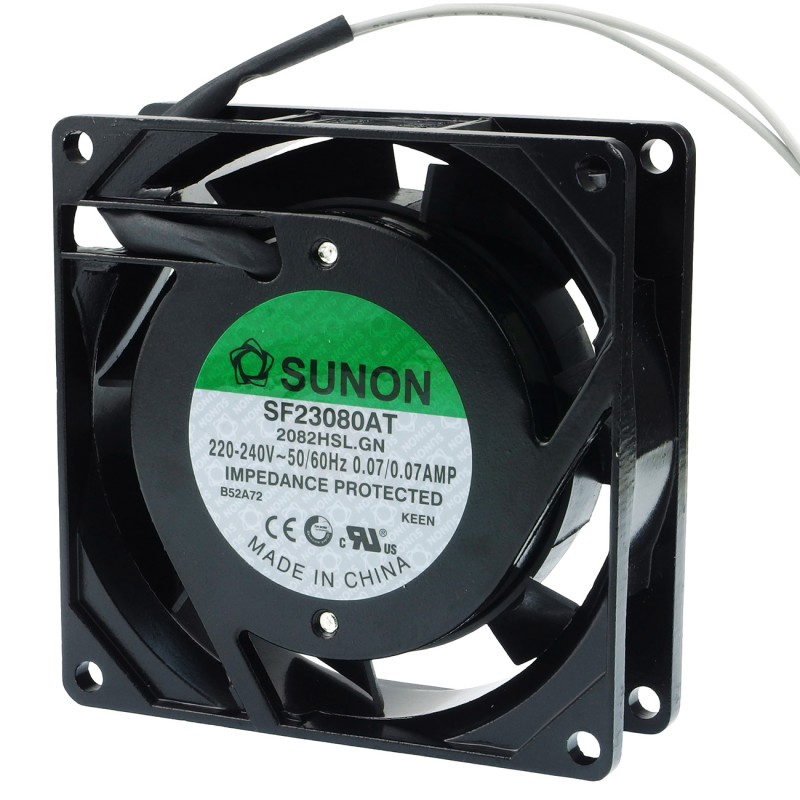

Sunon SF23080AT2082HSL.GN – Axial AC Fan, 230VAC, 80×80×25 mm
search
  • Sunon SF23080AT2082HSL.GN – Axial AC Fan, 230VAC, 80×80×25 mm
  • Sunon SF23080AT2082HSL.GN – Axial AC Fan, 230VAC, 80×80×25 mm
  • Sunon SF23080AT2082HSL.GN – Axial AC Fan, 230VAC, 80×80×25 mm
ID: 1191584
zł37.90
Tax included

zł30.81 tax excl.

The Sunon SF23080AT2082HSL.GN 230 V AC axial fan provides efficient cooling with low noise and high reliability. It is suitable for industrial and electronic systems, including applications requiring compliance with UL94 and ECE R-118 flammability standards.

24h
Available
Available quantity: 3

Description

The Sunon SF23080AT2082HSL.GN axial AC fan, measuring 80 × 80 × 25 mm, is designed for use in electronic and industrial equipment requiring effective cooling. Powered by 230 V AC, it consumes 14 W and delivers an airflow of 28.9 m³/h with a noise level of 29 dBA. Equipped with sleeve bearings, a thermoplastic impeller, and an aluminum frame, the fan ensures quiet and reliable operation within a temperature range of -10°C to +70°C. It complies with flammability standards UL94V-0 and ECE R-118, making it suitable for automotive and industrial applications.

Features

  • fan type: AC
  • design: axial
  • dimensions: 80 × 80 × 25 mm
  • operating voltage: 230 V AC
  • frequency: 50 Hz
  • power consumption: 14 W
  • rated current: 70 mA ±15%
  • rotational speed: 2300 RPM
  • airflow: 28.9 m³/h ±5%
  • noise level: 29 dBA
  • static pressure: 3.05 mm H₂O
  • bearing type: sleeve
  • impeller material: thermoplastic
  • housing material: aluminum
  • leads: 2 × 24 AWG wires, 0.33 m length
  • insulation resistance: ≥500 MΩ
  • operating temperature: -10°C to +70°C
  • flammability rating: UL94V-0, ECE R-118
  • gross weight: 235.2 g
1191584

Data sheet

Voltage
230 V AC
Power
14 W
Length
80 mm
Width
80 mm
Height
25 mm
Weight
235 g
Noise level
29 dBA
Air flow efficiency
28,9 m³/h
Rated current
70 mA
Fan type
Axial
