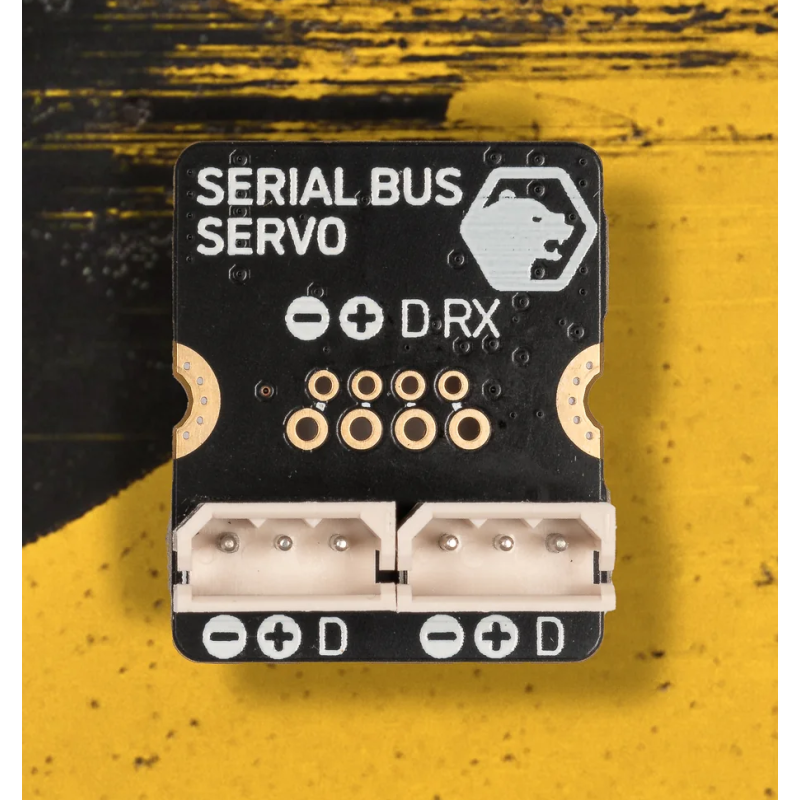

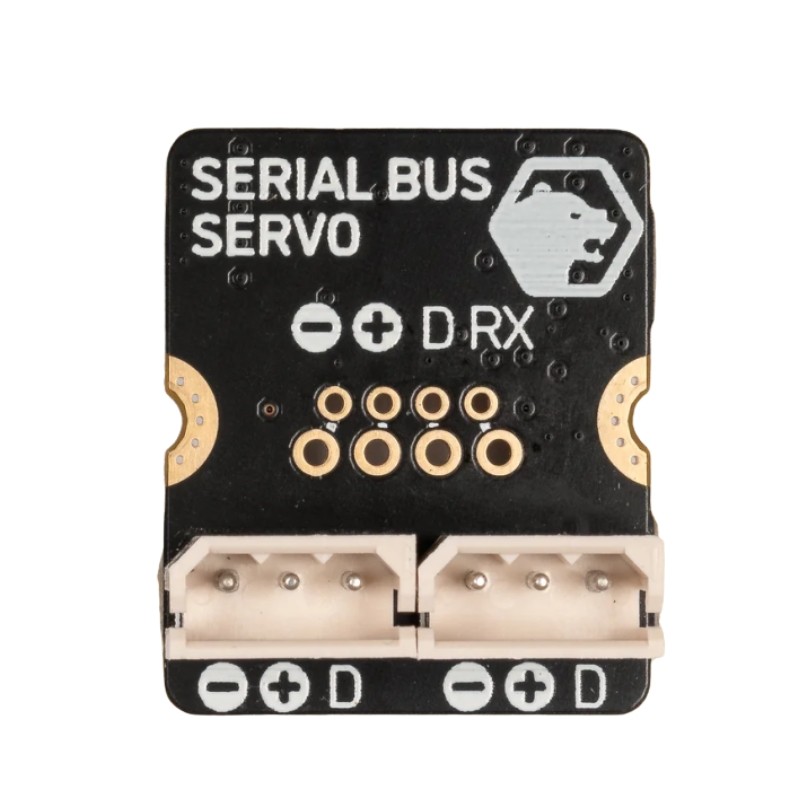

Main view
search
  • Main view
  • Bottom view
ID: 1202073
769894024751
zł50.47
Tax included

zł41.03 tax excl.

This compact module allows for convenient control of servos communicating via UART in half-duplex or full-duplex mode, making it suitable for a variety of robotic projects. Equipped with Molex connectors and additional pins, it allows for easy integration of popular servos, such as the LX-16A, as well as models from other manufacturers. The module offers high-current power output, ensuring stable operation of complex systems with multiple servos. Pimoroni PIM697

24h
Available
Available quantity: 1
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Serial Servo Module is a compact and versatile solution that enables convenient control of serial-bus servo chains in projects based on the Pimoroni Yukon platform. With support for servos operating in both half-duplex and full-duplex modes, the module ensures wide compatibility and flexible configuration options. Its design, featuring dual-pin Molex connectors, allows easy connection of popular servos such as the LX-16A, while additional free pins make it possible to adapt the module to servos from other manufacturers.


The device also offers a high-current output, making it suitable for advanced robotics installations that require stable and reliable power delivery. The module is fully factory-assembled, allowing immediate use in projects without the need for additional soldering. It is ideal for robotic applications, manipulators, and any motion-based systems using servos. Combined with the capabilities of the Yukon controller, it delivers high power, reliability, and precise control. Its compact dimensions make it a great choice for small constructions where portability and easy installation are essential.

Features

  • Controller for servos communicating via UART (half-duplex and full-duplex)
  • Two 3-pin Molex connectors for half-duplex servos
  • 5 V – level shifting for TX and RX
  • Direct high-current output for stable servo power supply
  • Switches for configuring half-duplex mode
  • Pins for mounting other connector types
  • Fully compatible with the Pimoroni Yukon platform
  • Dimensions: 24 × 20 × 11.2 mm
