This module supports four servos with direct power supply ranging from 5-17V, allowing for the construction of high-power designs. The module features standard servo connectors and two analog inputs that can be used to interface with sensors or servos with feedback. Pimoroni PIM695

24h
Available
Available quantity: 1
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

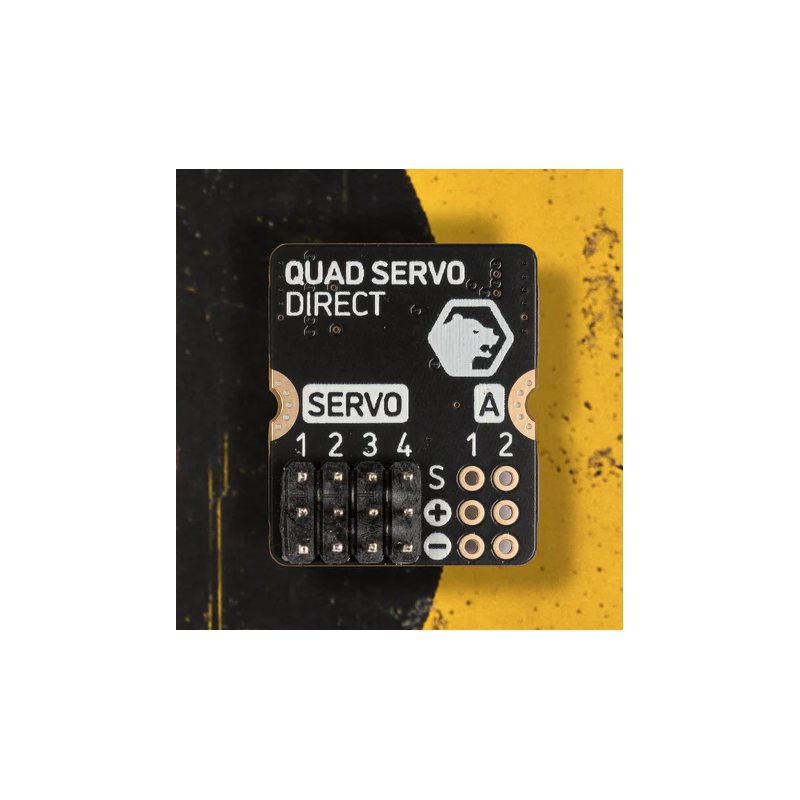

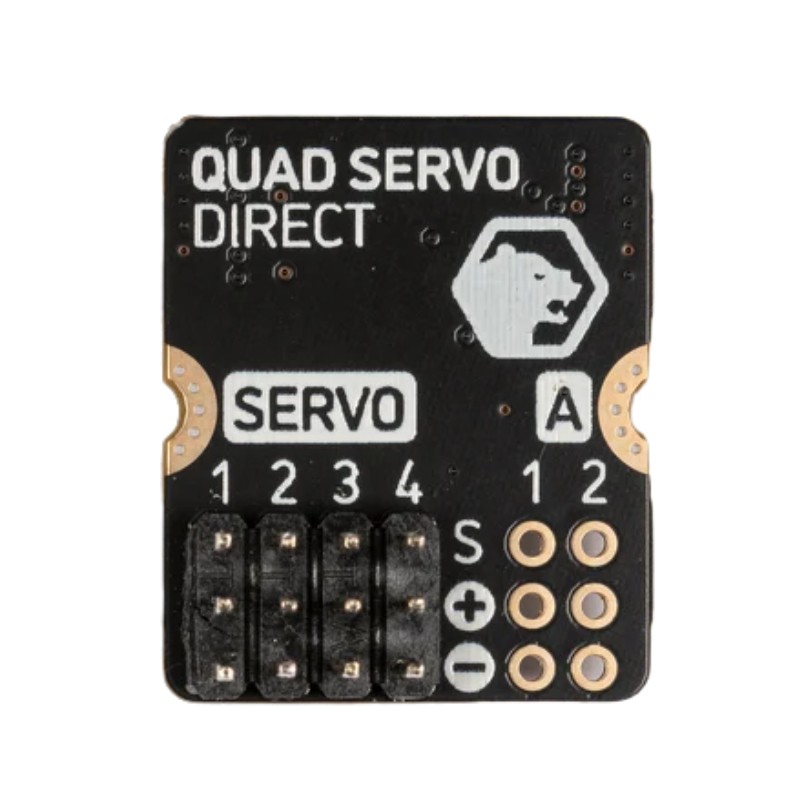

The Quad Servo Module is a compact and fully integrated module designed to control four servos in projects based on the Pimoroni Yukon platform. With direct servo power input ranging from 5 to 17 V, it enables the creation of high-power constructions such as walking robots, robotic arms, or advanced motion-control systems. Its design allows the supply voltage to be matched directly to the servos in use, giving engineers great flexibility when developing systems with diverse power requirements.


The module provides four sets of pins for connecting standard hobby servos, making it ideal for educational and semi-professional projects. It is also equipped with two analog inputs which, once soldered, can be used with feedback-enabled servos or for connecting sensors that detect pressure, ground contact, or other parameters. As part of the Yukon ecosystem, the module works together with the powerful RP2040 microcontroller and an e-Fuse-based power management system, ensuring reliability and safety in demanding applications. Its construction is optimized for performance in varied environments, including those requiring fast response times and resistance to dynamic loads. The Quad Servo Module is an excellent choice for robotics builders, automation enthusiasts, and developers of high-precision mobile systems.

Features

  • Support for four servos
  • Direct power input in the 5–17 V range

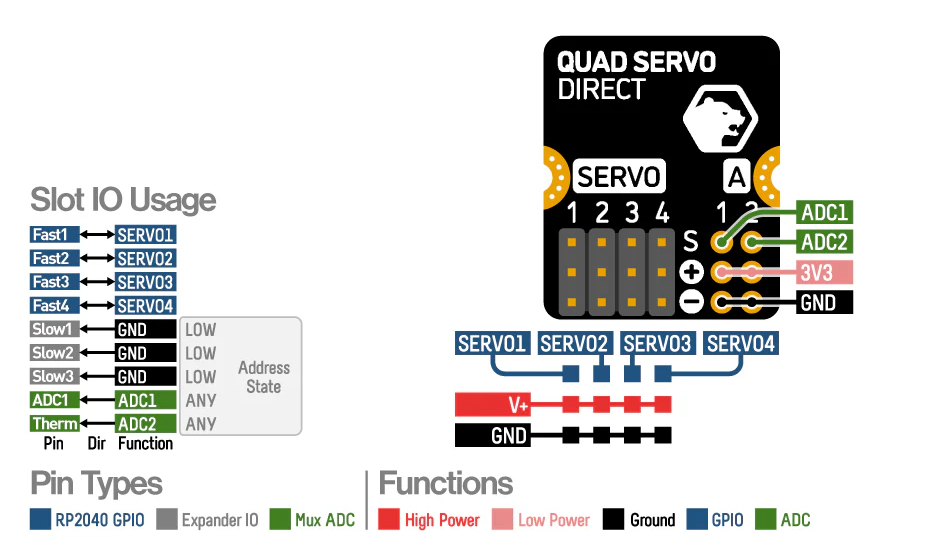

  • Four sets of 3-pin servo connectors
  • Two analog inputs for sensors or feedback-enabled servos (soldering required)
  • Fully assembled module, ready to use
  • Fully compatible with the Pimoroni Yukon platform
  • Dimensions: 24 × 20 × 13.9 mm
