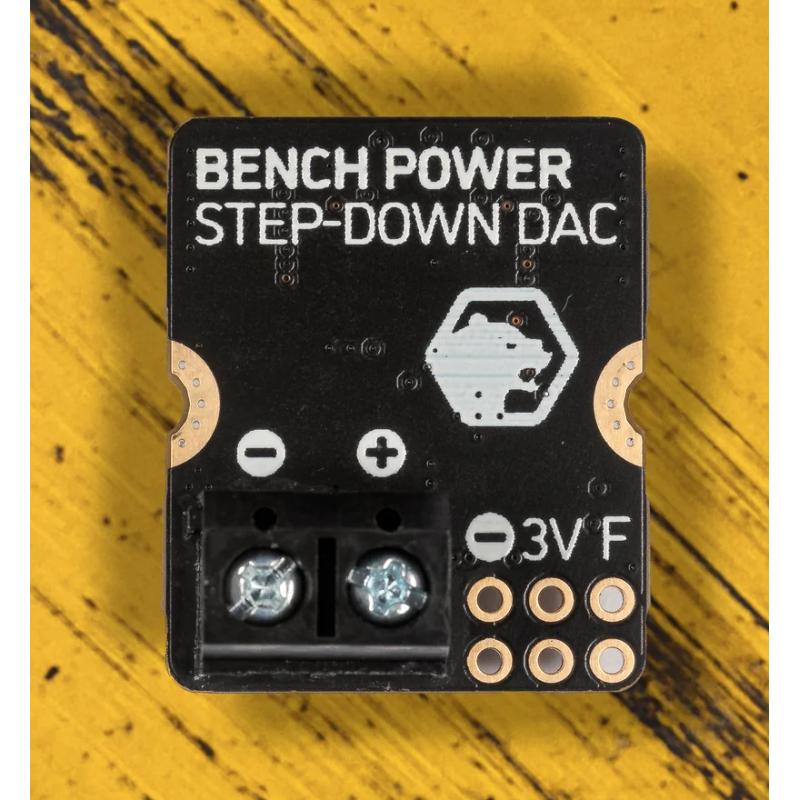

Bench Power Module - module with DC-DC Step-Down converter 3-12V 5A
ID: 1202081
769894024683
zł87.79
Tax included
zł71.37 tax excl.
This power supply module for the Pimoroni Yukon offers an adjustable output voltage from 3 to 12V using a powerful step-down converter. It provides stable power with a continuous current of 5A and a peak current of up to 10A, as well as the ability to set a fixed 5V output by cutting a dedicated trace. The module allows for the use of additional digital signals and monitoring of voltage, temperature, and power supply status. Pimoroni PIM690
Description
The Bench Power module is an advanced power supply solution designed for projects built on the Pimoroni Yukon platform, enabling delivery of a variable output voltage of up to 12 V. Using a high-efficiency step-down converter, the module allows for smooth and programmable voltage regulation in real time, opening up a wide range of application possibilities. It is ideal for powering devices that require adjustable voltage, such as PC fans or single-colour LED strips. A built-in voltage lock function allows you to set a fixed 5 V output by cutting a dedicated trace on the underside of the module. The design also includes two free digital signals that can be used to connect sensors or other elements for feedback control.
The module delivers stable operation thanks to an extensive system monitoring voltage, temperature, and power status. It is engineered to provide a maximum continuous current of 5 A with peak values up to 10 A. Bench Power comes fully assembled, although using the additional digital I/O signals requires soldering. Thanks to full compatibility with the Yukon platform, the module can serve as a key component in advanced engineering and robotics projects. It uses the RP2040 microcontroller’s hardware PWM, which means certain limitations apply when multiple modules operate simultaneously. The module is well suited for both professional and hobby applications, providing stable and controllable power delivery.
Features
- TPS54A24 DC–DC step-down converter
- Adjustable output voltage from 3 V to 12 V
- 5 A continuous current (10 A peak)
- Fixed 5 V output possible by cutting a trace
- 5 mm screw terminals for load connection

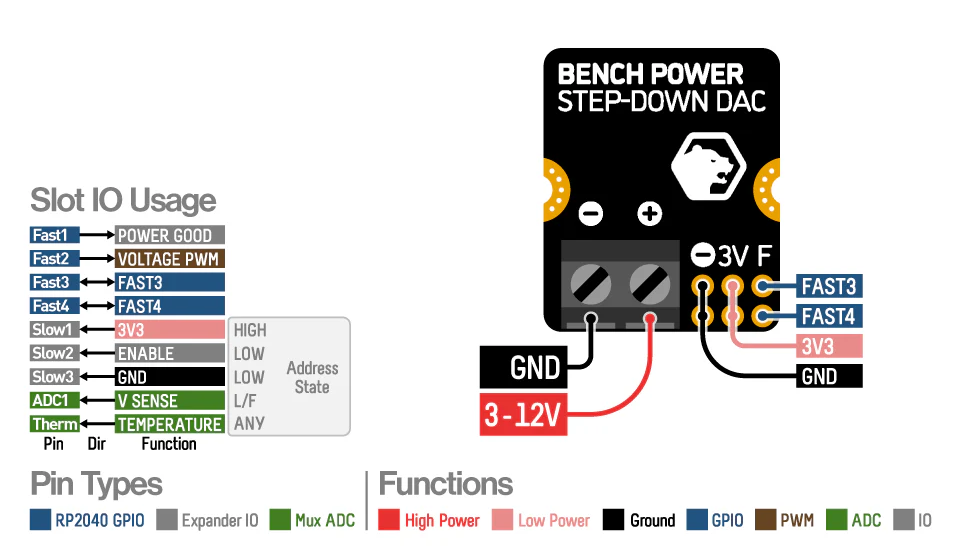

- Free digital I/O signals for connecting sensors
- Voltage, temperature, and power-status sensors
- Fully assembled module
- Soldering required only when using IO signals
- Compatible with Pimoroni Yukon
- Dimensions: 24 × 20 × 15.3 mm
1202081
Data sheet
- Output voltage
- 3 V - 12 V
- Output current
- 5A
- Converter type
- Step-down
- Supply voltage min
- 4,5 V
- Supply voltages max
- 17 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
