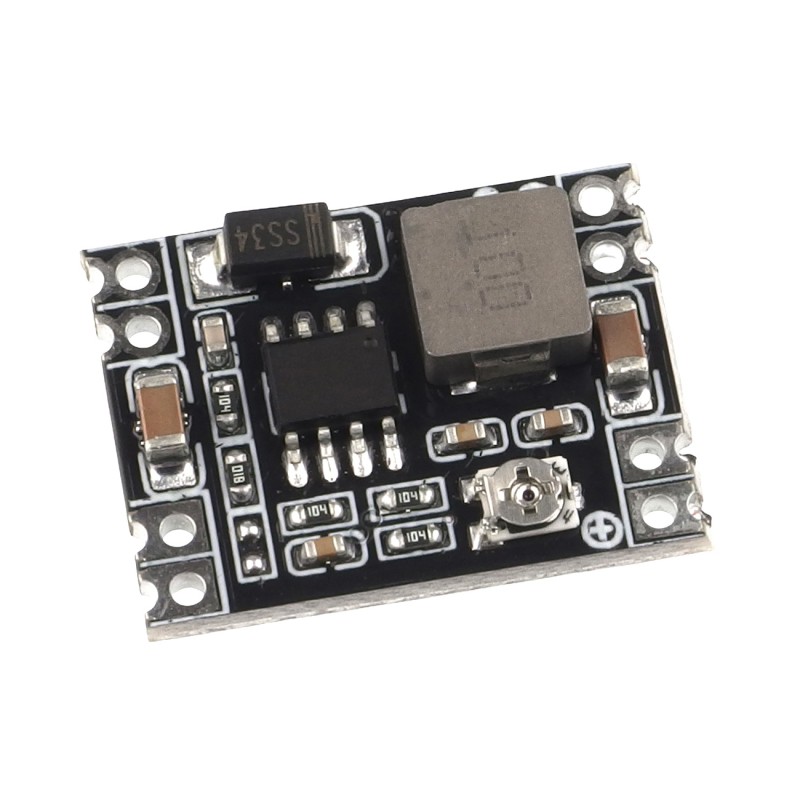

Step-Down converter module 0.8-25V 3A
ID: 1185870
5902186302099
zł5.41
Tax included
zł4.40 tax excl.
The Step-Down Converter Module converts 0.5V-26V input voltage to 0.8-25V constant, with a maximum output current of 3A, recommended up to 2.3A for long-term use. The conversion efficiency of the device is 96%, and the module size is 22.3mm x 17mm x 4.2mm.
Description
The 0.8-25V 3A Step-Down Converter Module is a compact device that converts 0.5V-26V input voltage to 0.8-25V DC output voltage, with a maximum output current of 3A, although it is recommended to control the output current below 2 .3A when operating for a long time. The conversion efficiency of this module is a maximum of 96%, which is optimized when the difference between the input and output voltage is greater than or equal to 2V, and the output ripple is below 30mV. The device can operate in temperatures from -40 to 85 ° C and has compact dimensions of 22.3mm x 17mm x 4.2mm.
Features
- Input voltage: 0.5V-26V
- Output voltage: 0.8-25V
- Output current: 3A (maximum)
- Conversion efficiency: 96% (maximum)
- Output Ripple: <30mV
- Working Temperature: -40-85°C
- Size: 22.3mm x 17mm x 4.2mm
1185870
Data sheet
- Output voltage
- 0,8 - 25 V
- Output current
- 3A
- Converter type
- Step-down
- Supply voltage min
- 0,5 V
- Supply voltages max
- 26 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
