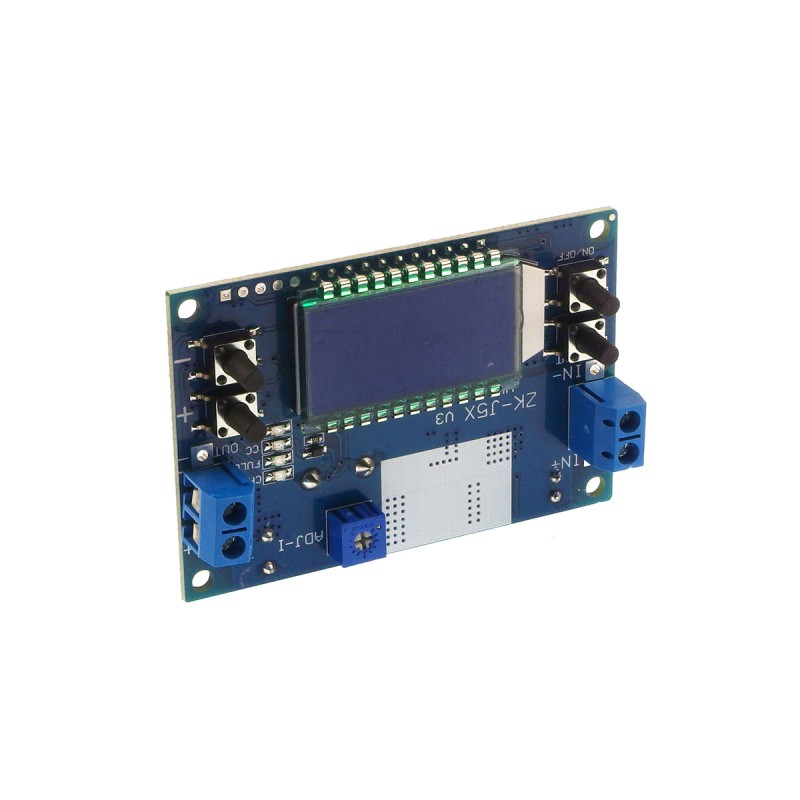

Step-Down Converter Module with Voltmeter and Ammeter 1.2–32V 5A
ID: 1185875
5906623488995
zł57.67
Tax included
zł46.89 tax excl.
The HW-212 enables precise voltage and current regulation across a wide range of parameters, while maintaining high efficiency and clear operational control via an LCD display. The module is ideal for test benches, electronics power supply projects, battery charging, and high-power LED control
Description
The HW-212 module is designed to regulate voltage and current in DC power supply systems, operating in step-down (buck) mode. The system supports voltage and current regulation, enabling precise adjustment of output parameters to the requirements of the powered load. The built-in LCD display simultaneously displays input or output voltage, current, power, and operating status, facilitating parameter monitoring during testing and operation. The module can be used as a regulated bench power supply, a battery charger with CC/CV mode, and a high-power LED current driver.
Features
- DC input voltage range: 6.5–36 V
- Adjustable DC output voltage: 1.2–32 V
- Adjustable output current: up to 5 A
- Maximum output power: up to 75 W
- Constant voltage (CV) and constant current (CC) operating modes
- Conversion efficiency: up to 94%
- LCD display of voltage, current, power, and operating status
- Voltage resolution: 0.05 V
- Current resolution: 0.005 A
- Short circuit protection
- Input reverse polarity protection
- Soft start to limit current surges
- Operating temperature range: -20°C to 85°C
1185875
Data sheet
- Output voltage
- 1,3 - 32 V
- Output current
- 12 A
- Converter type
- Step-down
- Supply voltage min
- 5,3 V
- Supply voltages max
- 32 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
