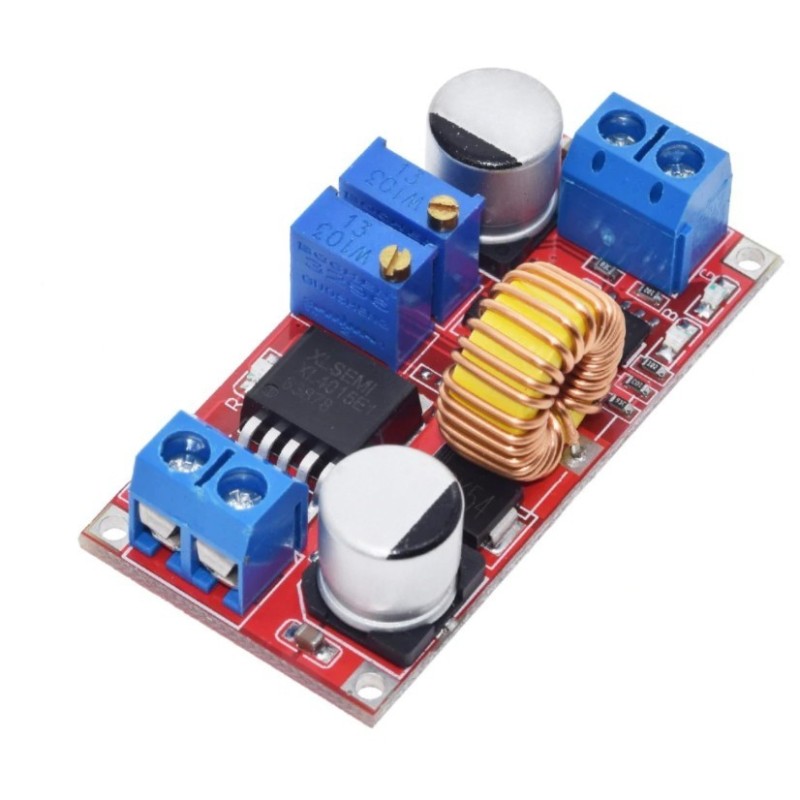

1.25-33V Step-Down 5A XL4015 converter module
ID: 585156
5906623462445
zł9.73
Tax included
zł7.91 tax excl.
Step-Down XL4015 converter module with adjustable output voltage in the range from 1.25 to 33 V with a wide input voltage range from 4 to 35 V and a maximum output current of 5 A
Description
Step-Down XL4015 converter module with an adjustable output voltage in the range from 1.25 to 33 V with a wide input voltage range from 4 to 35 V. The maximum current load of the module is 5 A. The converter can achieve efficiency up to 96% and has built-in protection against overheating and short circuit.
Attention!
The module is not reverse polarity protected. Incorrect connection of the power supply will cause permanent damage.
Features
- Input voltage: 4 to 35V
- The output voltage is adjustable from 1.25 to 33 V
- Maximum current: 5 A
- Built-in short circuit and overheating protection
- Max. efficiency: 96%
- Screw connections
- Dimensions: 61.7 x 26.2 x 15 mm
- Weight: 20 g
585156
Data sheet
- Output voltage
- 1,25 - 36 V
- Output current
- 5A
- Converter type
- Step-down
- Supply voltage min
- 4 V
- Supply voltages max
- 38 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
