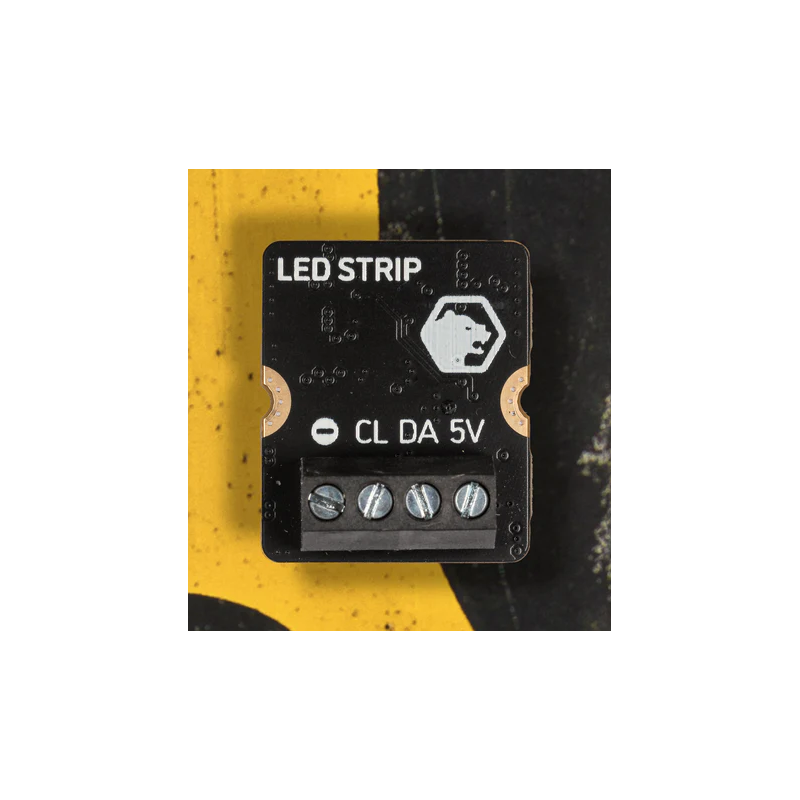

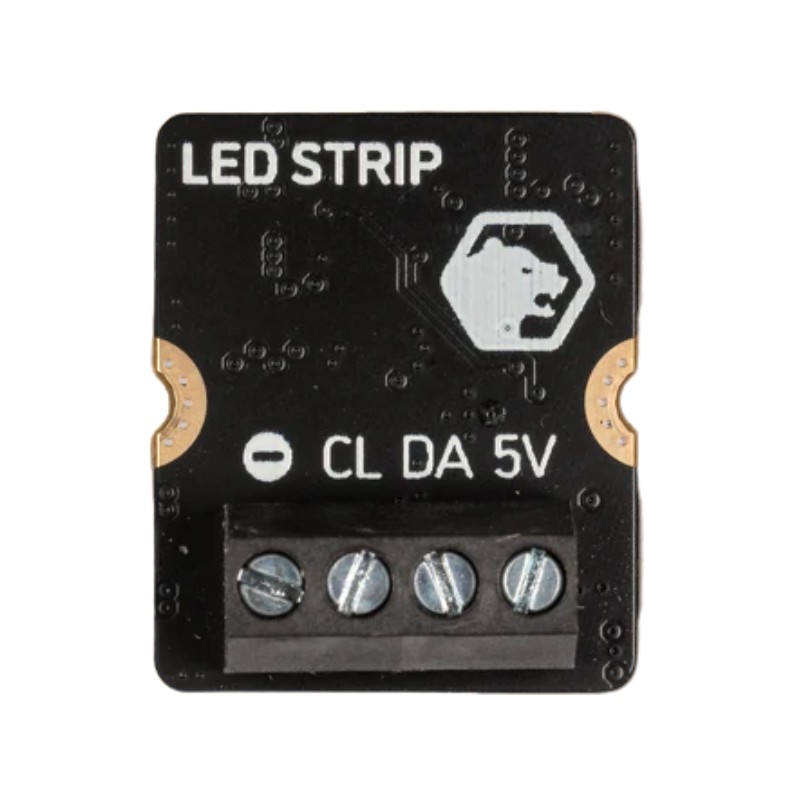

LED Strip Module - addressable RGB LED controller for Yukon
ID: 1202077
769894024720
zł87.79
Tax included
zł71.37 tax excl.
This module controls addressable LED strips in the Pimoroni Yukon system, featuring a stable 5V/5A output and a voltage level converter for proper communication with RGB LEDs. It allows for easy connection of strips via screw terminals and works with popular standards such as WS2812, SK6812, APA102, and Dotstar. The module can even control two WS2812 strips simultaneously, offering high performance and flexibility. Pimoroni PIM694
Description
The LED Strip module is a compact and efficient solution designed for controlling addressable LED strips in projects based on the Pimoroni Yukon platform. With a built-in 5 V / 5 A regulator and a level-shifting circuit, the module provides stable power and reliable communication with popular RGB LEDs. It is ideal for applications requiring visually impressive lighting, such as robots, remote-controlled models, or visual installations.
Connecting an LED strip is exceptionally easy thanks to convenient screw terminals, allowing quick and safe project setup. The module is compatible with both WS2812/Neopixel LEDs and APA102/Dotstar LEDs, offering versatility and compatibility with various lighting types. Its design even allows for powering two WS2812 strips from a single module, making it especially useful in more complex installations. The high current capacity ensures stable operation even with a larger number of LEDs. The module is also equipped with temperature and power-status sensors, increasing overall system safety.
Features
- Compatible with 5 V WS2812/Neopixel/SK6812 and APA102/Dotstar/SK9822 LEDs

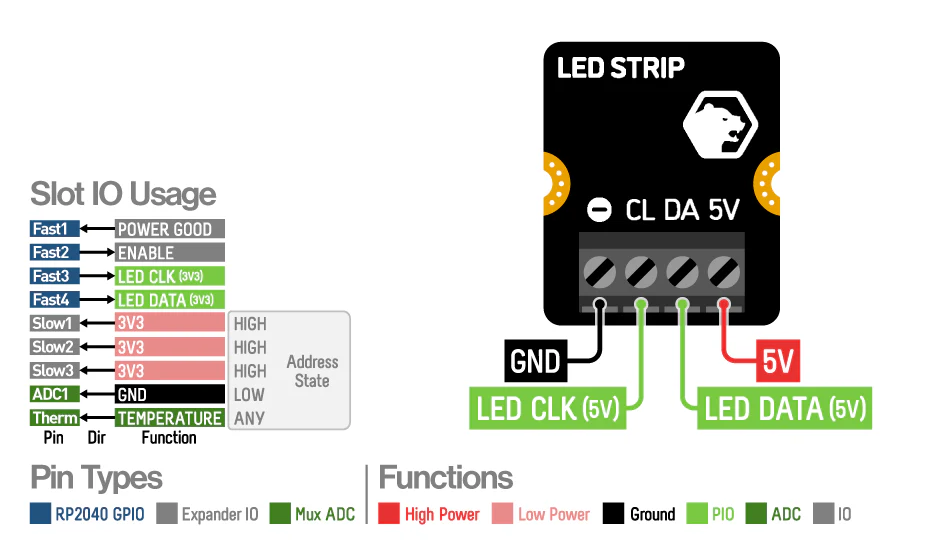

- Screw terminals for easy LED strip connection
- Built-in TPS54A24 converter
- Stable 5 V output
- Continuous current: 5 A (10 A peak)
- 5 V level shifter for data and clock lines
- Temperature and power-status sensors
- Fully assembled — no soldering required
- Compatible with Pimoroni Yukon
- Supports connecting two WS2812 strips to a single module
- Dimensions: 24 × 20 × 13.7 mm
1202077
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
