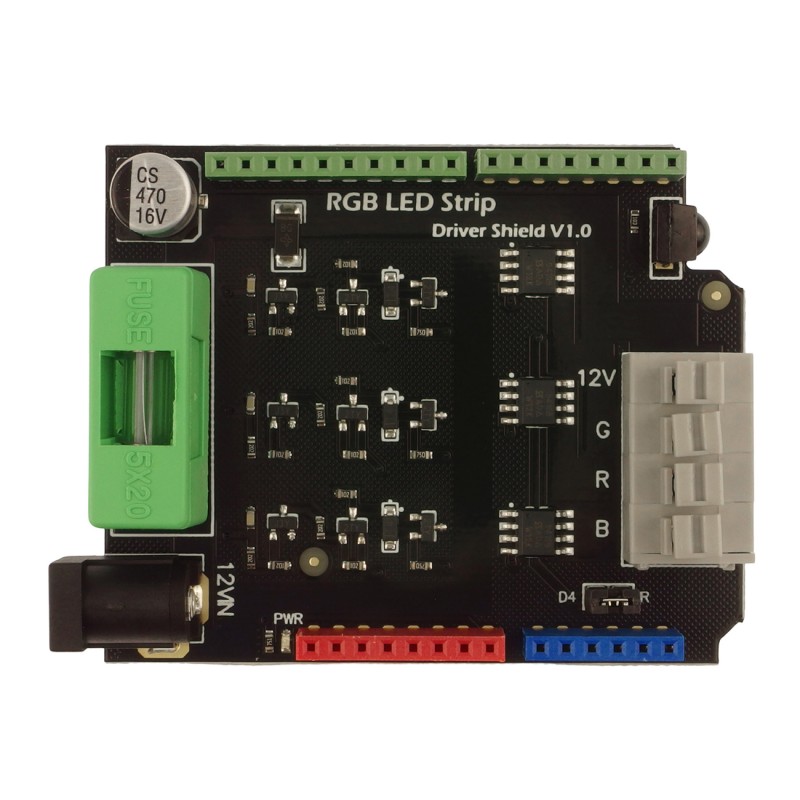

RGB LED Strip Driver Shield v1.0 - RGB LED strip driver module for Arduino
ID: 1179244
5902186310438
zł37.49
Tax included
zł30.48 tax excl.
RGB LED strip driver module dedicated to Arduino boards. It can work with tapes with a supply voltage of up to 12 V and a current consumption of up to 3 A. DFRobot DFR0274
Description
RGB LED strip driver module dedicated to Arduino boards. It can work with tapes with a supply voltage of up to 12 V and a current consumption of up to 3 A. The board has a fuse that protects the circuit against short-circuit and excessive load, and an IR receiver. It uses three PWM outputs to drive each color. It will be used in home lighting installations. Full documentation is available on the product page.
Features
- Compatible with Arduino Uno, Mega, Romeo etc.
- Compatible with 12V RGB LED strip (common anode)
- Recommended operating power: 72 W (2A per channel)
- It can control max. 10 m RGB LED strip
- Infrared remote control support
- Pins controlling RGB LED strip: D9, D10, D11 and D4 (IR receiver)
1179244
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
