Advanced ESP32-based LED driver board, designed for full compatibility with WLED and xLights. With a wide range of power supply options, ready-made connectors and built-in protection, it is ideal for creating both simple and complex lighting installations, offering convenience and reliability for both amateurs and professionals. Adafruit 6100

24h
Available
Available quantity: 2
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

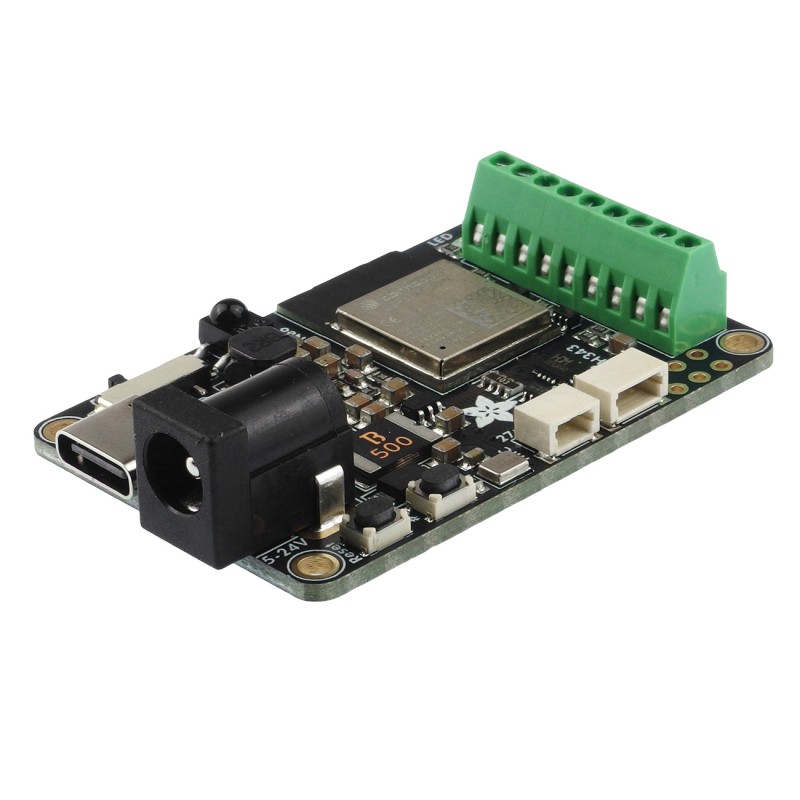

Adafruit Sparkle Motion is the flagship board in the "Sparkle Motion" LED controller series, designed for maximum compatibility with WLED and xLights. With input from experienced LED project developers, the board comes equipped with everything needed to create both small- and large-scale lighting installations. The built-in antenna ensures the device is ready to use straight out of the box. Sparkle Motion is based on the reliable ESP32 module with WiFi, Bluetooth LE, and Classic support, providing fast communication and high performance. It also offers power supply options via USB-C PD or standard DC jack, with a 5V/12V/20V voltage selector, making it versatile and resistant to overloads.

For user convenience, the board includes ready-to-use terminals for connecting LEDs, an I2S microphone, I2C sensors, and an IR receiver. Built-in protections such as a 5A fuse and low-dropout diodes ensure safe operation even under heavy load. Its compact size makes it a perfect fit for wearables and portable setups. Sparkle Motion is a powerful tool for both hobbyists and professionals looking to create impressive, intelligent lighting installations.

Features

  • Module: ESP32 mini with built-in antenna, 240 MHz, 4 MB flash
  • Support: WLED, xLights, Arduino, ESP-IDF, MicroPython, CircuitPython
  • Power option 1: USB-C Power Delivery (5V / 12V / 20V)
  • Power option 2: 2.1 mm DC jack (center positive)
  • Fuse: 5A for overload protection
  • LED outputs: 3 channels with terminals, level shifted to 5V
  • Built-in I2S microphone for audio-reactive projects
  • Built-in infrared (IR) receiver
  • Stemma QT connector for I2C sensors and displays
  • Additional JST connector for analog inputs or external IR receivers
  • GPIO: 6 pads + 3 additional power pads
  • Built-in LED (pin 4) and NeoPixel (pin 2)
  • User button on GPIO 0 and reset button
  • Dimensions: 33 x 45 mm
