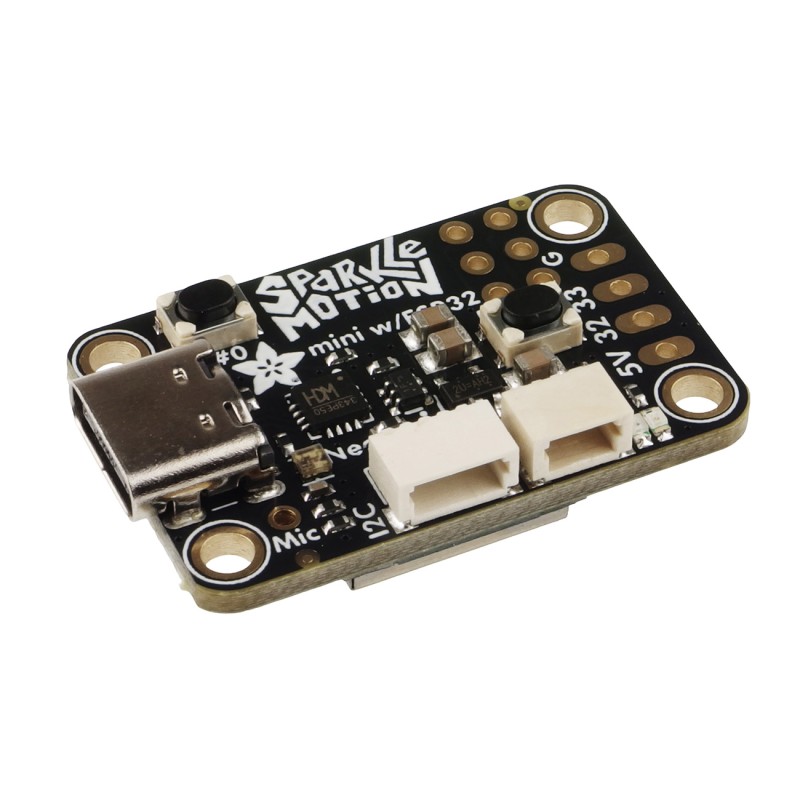

Mini Sparkle Motion - module with NexPixel ESP32 driver
ID: 1196816
5902186300835
zł90.27
Tax included
zł73.39 tax excl.
Compact ESP32 based board designed for lighting and WLED projects, offering WiFi, Bluetooth and efficient power supply via USB Type-C (up to 4A). It offers two LED outputs with logic level conversion, a built-in I2S microphone, STEMMA QT port, button, NeoPixel and additional GPIO pins. With support for multiple platforms (Arduino, MicroPython, CircuitPython, ESP-IDF), it is ideal for wearable devices and interactive projects. Adafruit 6160
Description
Adafruit Sparkle Motion Mini is a compact LED controller board designed for WLED enthusiasts and projects where small size and high performance are essential. Despite its tiny form factor, it offers a rich set of features, making it ideal for advanced lighting projects and wearable electronics. Thanks to a 4-layer PCB and double-sided assembly, it integrates a variety of advanced components in a minimal footprint. The device is powered by the popular ESP32 module, featuring a dual-core 240 MHz processor with built-in WiFi and Bluetooth (LE and Classic) support.
Sparkle Motion Mini is powered via USB Type-C and can draw up to 4 A at 5 V. A built-in resettable fuse automatically disconnects power in case of overload. Two signal outputs (with 5V logic level shifters) make it easy to control LED strips. The board also includes a built-in I2S microphone, a STEMMA QT port for additional sensors, a user button, a red LED, and a built-in NeoPixel. Extra GPIO pads and a JST port for analog input enhance project flexibility. While it is designed with WLED in mind, the board also works great with Arduino, MicroPython, CircuitPython, and ESP-IDF.
Features
- Microcontroller: ESP32 dual-core 240 MHz, 4 MB Flash, WiFi, Bluetooth LE/Classic
- Built-in USB-to-serial converter with auto-reset functionality
- 2 signal outputs with 5V logic level + power and ground (on 2.54 mm pads)
- Additional 2x3 GPIO pad set + 3V and GND
- Built-in I2S microphone
- STEMMA QT (I2C) port for sensors and displays
- User button (GPIO0), reset button
- Built-in red LED (GPIO12)
- Built-in NeoPixel (GPIO18)
- JST port for analog input (GPIO13)
- Power: USB Type-C 5V up to 4A
- Resettable fuse: 4A
- Dimensions: 31.6 x 19.8 x 7.3 mm
1196816
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
