LED Driver Board - LED driver for XIAO
ID: 1198706
5902186305625
zł30.97
Tax included
zł25.18 tax excl.
Compact 5V and 12V LED strip controller, supporting popular addressable models such as WS2812, WS2813 and WS2815. Compatibility with Seeed Studio XIAO boards and support for WLED and ESPHome applications allows easy integration with smart lighting and smart home systems. Thanks to the Grove interface and built-in security, the module is ideal for DIY projects, home automation and interactive lighting installations. Seeed Studio 105100021
Description

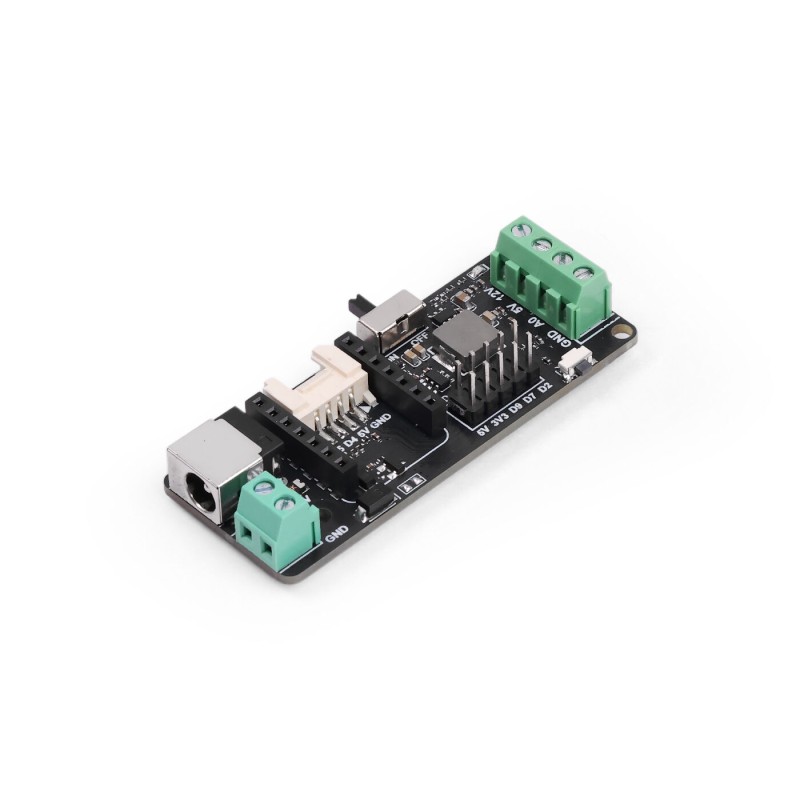

The LED Driver Board is a compact yet powerful solution for controlling 5V and 12V LED strips, including popular addressable RGB strips such as NeoPixel WS2812, WS2813, and WS2815. The device is fully compatible with Seeed Studio XIAO boards, and when paired with the XIAO ESP32 series (C3/S3/C6), it enables smart lighting control via the WLED app or Home Assistant through ESPHome. With Grove interface support, it can be quickly integrated with over 400 Seeed Studio modules, allowing the creation of interactive lighting effects responsive to motion, temperature, or other environmental factors.
The board offers flexible power options – either via a standard 5.5 mm x 2.1 mm DC barrel jack or direct wire connection. Built-in protections against overvoltage, overheating, short circuits, and overcurrent ensure safe operation and long lifespan of components. Its slim enclosure allows easy installation in tight spaces – making it an ideal solution for smart lighting setups at home, in the office, or in DIY projects.
Features
- Supported LEDs: single-color and addressable RGB (WS2811, WS2812(B), WS2813, WS2815, SK6812, 1-wire)
- Compatible with Seeed Studio XIAO boards (ESP32-C3/S3/C6, supports WLED and Home Assistant)
- Grove interface: compatible with over 400 Seeed Studio modules
- Power input: 12V/2A via DC adapter (5.5 mm x 2.1 mm barrel plug) or DC wires
- LED output: 12V or 5V, max. current 5V/3A, 12V/2A
- 4-pin screw terminal for LED strip: 12V, 5V, A0, GND
- User button (D3)
- Power LED
- Power switch
- Protections: overcurrent, overvoltage, overheating, short circuit
- Available pins: SPI x1, UART x1, digital x2
- Dimensions: 63 x 30 x 14.4 mm
