This module for the Pimoroni Yukon system allows for simultaneous control of four servos. It features a stabilized power supply with adjustable voltage of 5V, 6V, or 7.4V and a TPS54A24 step-down converter, supporting up to 5A continuous and 10A peak current. The module has built-in temperature sensors and a power status signal for increased safety. Pimoroni PIM696

24h
Available
Available quantity: 1
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

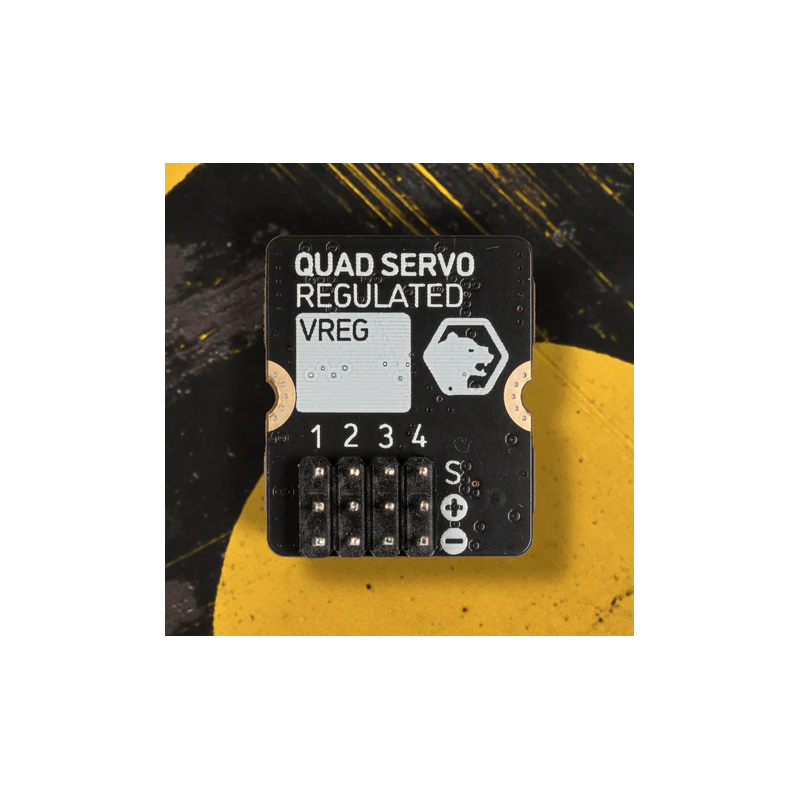

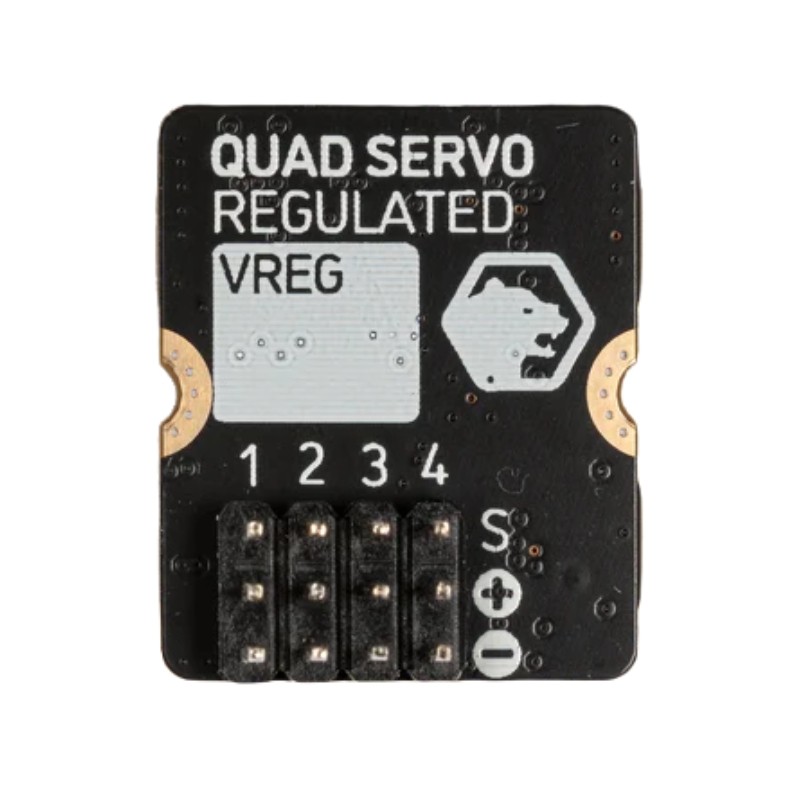

The Quad Servo Module is a fully assembled expansion module for the Pimoroni Yukon system, allowing simultaneous control of four standard servos. Featuring regulated power supply and an efficient TPS54A24 converter, the module ensures high reliability even in demanding robotic projects. By default, it provides 5 V output, but the user can easily switch it to 6 V or 7.4 V by cutting specific traces on the underside of the board. This design allows compatibility with most commercially available servos, including models with extended operating ranges.


The module also supports a high continuous current of 5 A (peak up to 10 A), making it suitable for powering even four high-torque servos. Built-in temperature sensors and a “power good” signal enhance safety and allow real-time monitoring of load conditions. The module is ready to use without soldering, significantly reducing project setup time. Its compatibility with the Yukon platform makes it ideal for walking robots, robotic arms, grippers, and creative installations requiring precise motion control. Solid connectors ensure secure servo connections, and the compact design fits easily in tight enclosures. It is an excellent solution for both hobbyists and advanced robotics developers.

Features

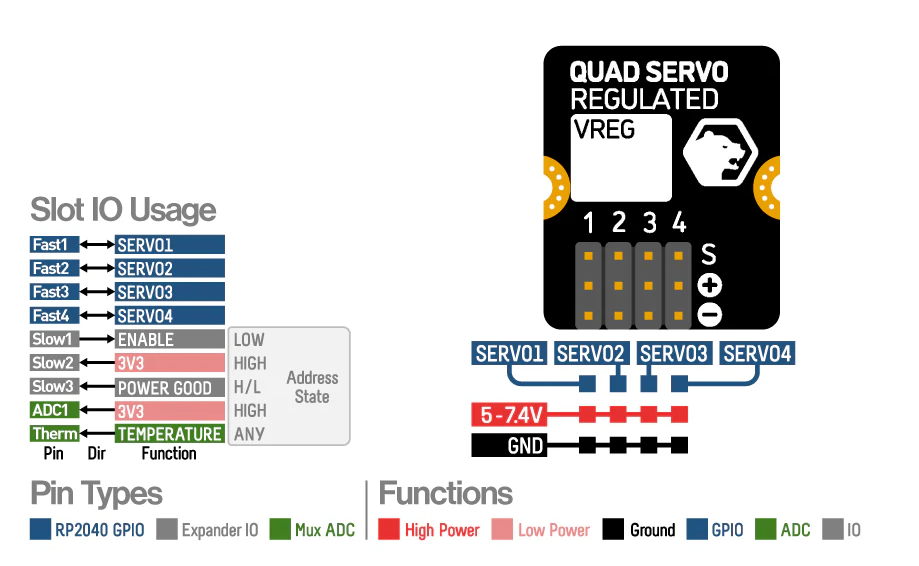

  • Four sets of pins for standard 3-pin servo connections
  • Efficient TPS54A24 step-down converter
  • Adjustable output voltage: 5 V / 6 V / 7.4 V (via trace cutting)
  • Continuous current: 5 A, peak current: 10 A
  • Voltage selection marking area (VREG)
  • Built-in temperature and power status sensors (“power good”)
  • Fully assembled, no soldering required
  • Fully compatible with the Pimoroni Yukon platform
  • Dimensions: 24 × 20 × 13.9 mm
