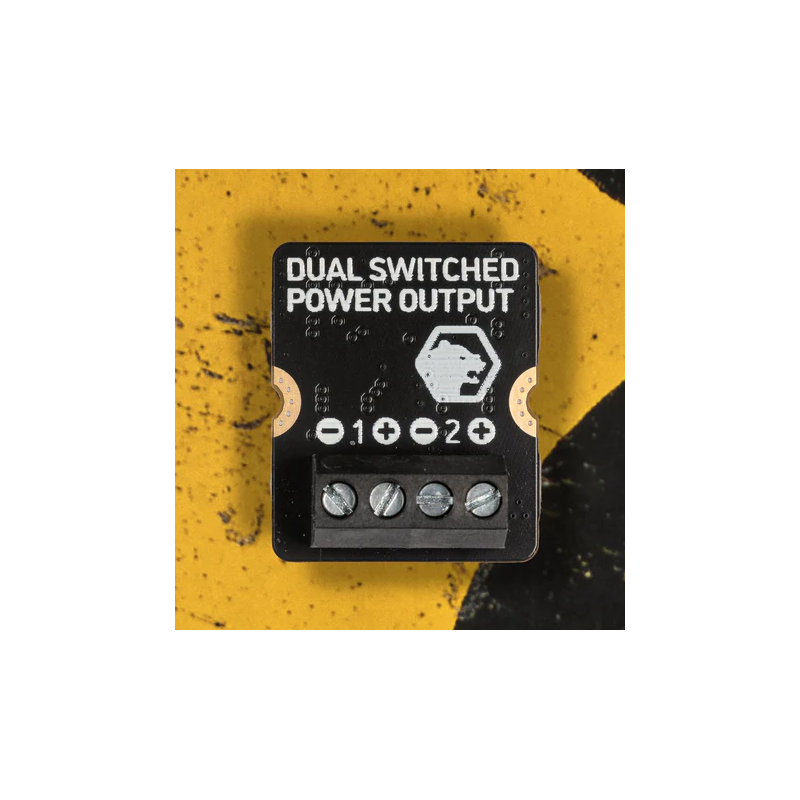

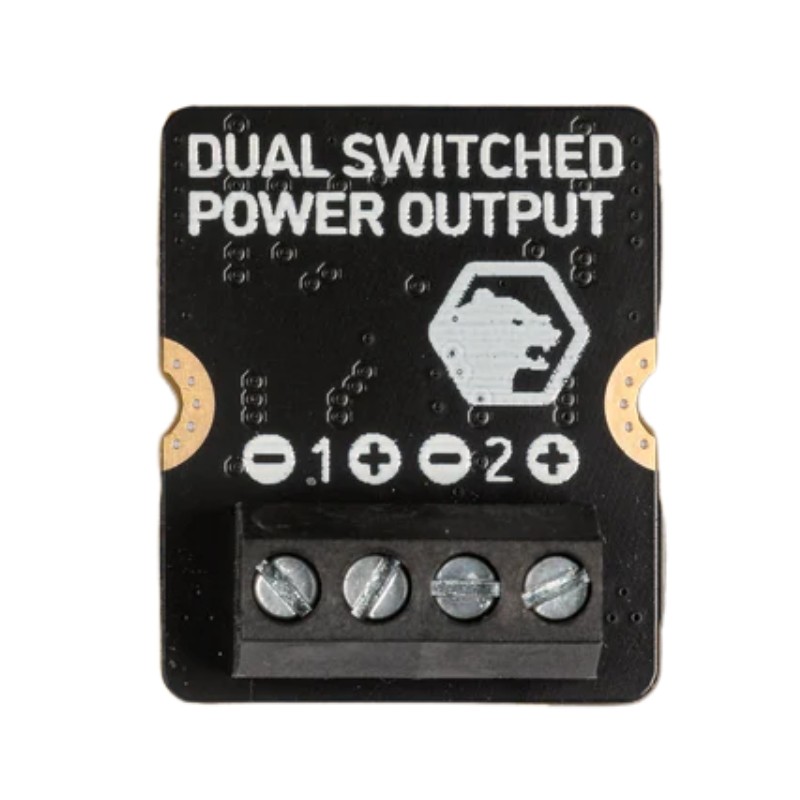

Dual Switched Power Output - 2-channel module with power outputs
ID: 1202079
769894024706
zł72.42
Tax included
zł58.88 tax excl.
A power module for the Pimoroni Yukon platform that allows independent control of two high-current outputs within a voltage range of 5 to 17 V. Built-in diodes and chokes enable excellent handling of inductive loads such as pumps, fans, and solenoids. Each channel can also operate in PWM mode, allowing for smooth power regulation in slow-response devices. The module supports a total current of up to 15 A and includes temperature sensors and a "power good" signal. Pimoroni PIM692
Description
The Dual Switched Power Output is a power module designed for the Pimoroni Yukon platform, enabling independent control of two high-current outputs. It is intended for driving power-demanding components such as 12 V pumps, fans, solenoids, and actuators, providing direct pass-through of the Yukon input voltage (5–17 V). With built-in inductors and flyback diodes, the module handles inductive loads safely and reliably. Each channel is controlled independently, increasing design flexibility and allowing the creation of more complex systems. The module can also operate in low-frequency PWM mode, offering smooth power regulation for devices with slow response times, such as heaters or heating elements.
The module is engineered to support high current — while the official connector specification rates it for 6 A, testing has demonstrated stable operation up to 15 A total (7.5 A per channel). This makes it an excellent choice for robotics, automation, control systems, and creative installations requiring substantial power. Integrated temperature sensors and a “power good” indicator allow real-time monitoring and improve overall system safety. The module is delivered fully assembled, enabling immediate integration without any soldering.
Features
- Two independently controlled high-current outputs
- Input voltage range: 5 to 17 V (direct Yukon input)
- Built-in diodes for inductive load handling
- Low-frequency PWM support
- Control ICs: 2 × SLG55021
- Integrated power FETs
- Operating current: up to 15 A total (7.5 A per channel)
- Temperature sensors and “power good” indicator
- Screw terminal for easy load connection
- Compatibility: Pimoroni Yukon
- Dimensions: 24 × 20 × 13.7 mm
1202079
Data sheet
- Output current
- 6A
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
