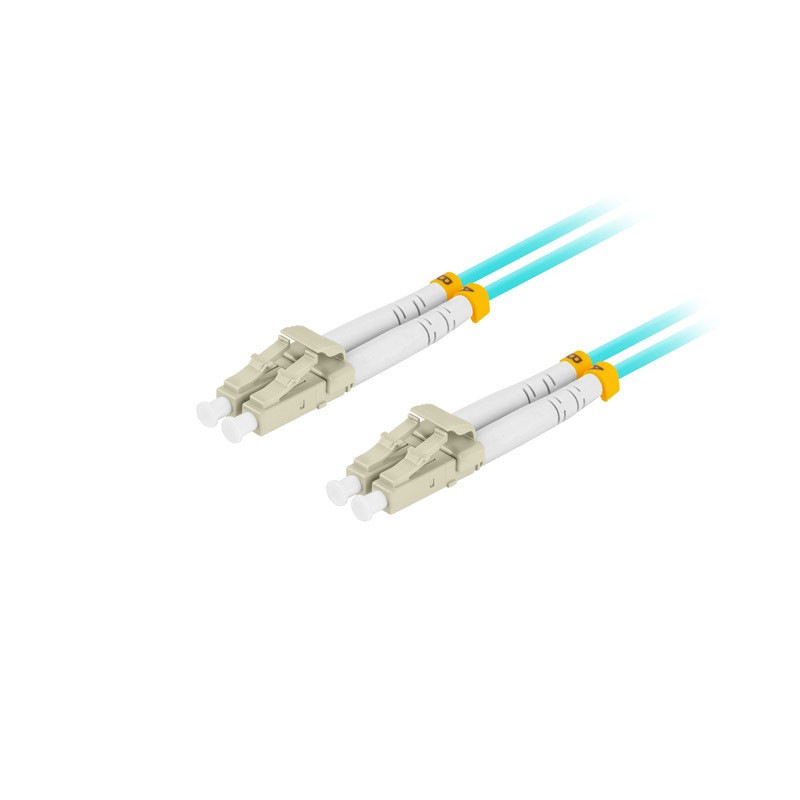

Fiber Patchcord LC/UPC–LC/UPC OM3 Duplex 2 m - Lanberg FO‑LULU‑MD31‑0020‑TQ
ID: 1198744
5901969433340
zł14.61
Tax included
zł11.88 tax excl.
Multimode fiber patchcord LC/UPC–LC/UPC Duplex 3,0 mm OM3 50/125 with LSZH jacket, 2 m length. Lanberg FO‑LULU‑MD31‑0020‑TQ
Description
The Lanberg FO‑LULU‑MD31‑0020‑TQ fiber patchcord is an optical cable designed for implementing fiber optic connections in telecommunication and network installations. The cable uses OM3 50/125 µm multimode fibers, which support optical signal transmission with low attenuation in multimode bands. The Duplex construction with two fibers enables parallel transmit and receive paths required for bidirectional links.
The patchcord has a 3,0 mm diameter and is equipped with a LSZH (Low Smoke Zero Halogen) jacket, reducing smoke and harmful gas emission in case of fire. The minimum bend radius of 7,5 mm facilitates routing in constrained spaces. The cable operates reliably across a wide temperature range from -40°C ~ 85°C, maintaining stable signal characteristics in varying environmental conditions. The patchcord is utilized for connecting active network equipment, distributing optical signals, and in FTTH installations.
Features
- Number of fibers: 2 Duplex
- Connector type: LC/UPC–LC/UPC
- Fiber type: multimode (MM)
- Fiber specification: OM3 50/125 µm
- Cable diameter: 3,0 mm
- Jacket type: LSZH
- Minimum bend radius: 7,5 mm
- Insertion loss: < 0,20 dB
- Return loss: > 30 dB
- Operating temperature: -40°C ~ 85°C
- Cable length: 2 m
- Color: aqua
- Application: fiber optic connections with LC ports in optical networks
1198744
Data sheet
- Cable length (m)
- 2 m
- Colour
- Aqua
- Optic fiber connector
- LC
- Optic fiber type
- Multi-mode
- Cable construction
- DUPLEX
- Polishing standard
- UPC
Manufacturer IMPAKT SPÓŁKA AKCYJNA Stanisława Lema 16 62-050 Mosina Poland zgody@impakt.com.pl
Responsible person IMPAKT SPÓŁKA AKCYJNA Stanisława Lema 16 62-050 Mosina Poland formularz kontaktowy na stronie osoby odpowiedzialnej
