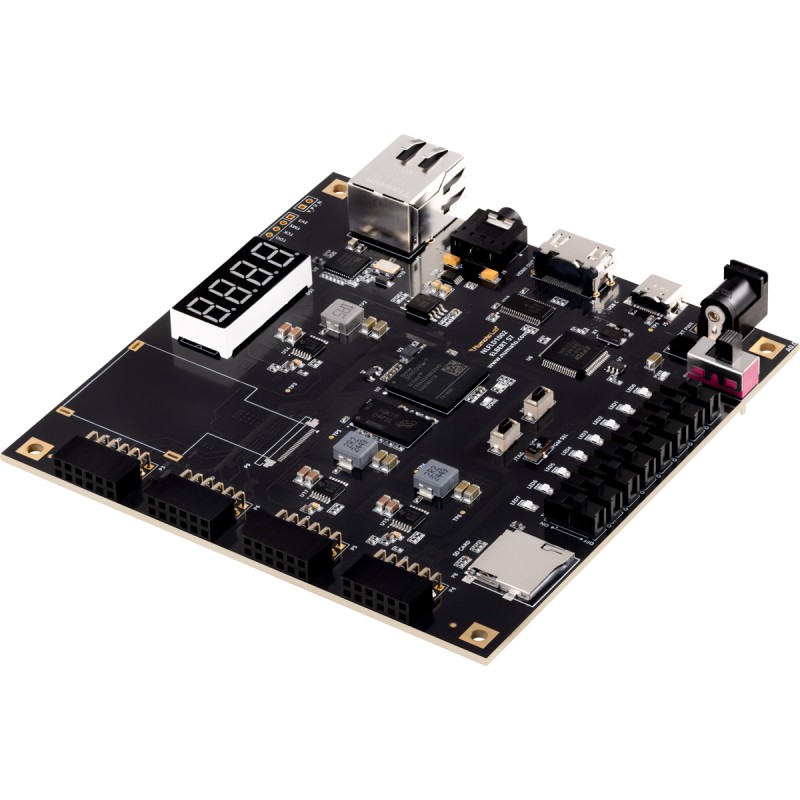

ELBERT S7 - development board with Spartan-7 XC7S50 FPGA
ID: 1202956
zł991.60
Tax included
zł806.18 tax excl.
This Spartan-7 XC7S50 FPGA development board is ideal for learning, prototyping, and educational projects. It features QSPI flash memory, a seven-segment display, eight LEDs, eight switches, an SD slot, and an HDMI video transmitter. The board supports Gigabit Ethernet, audio, and PMOD extensions, enabling extensive experimentation with digital signals, multimedia, and accelerated processing systems. FPGA configuration is possible via JTAG and USB. Numato Lab NLFPDM1001
Description
Elbert S7 is a versatile FPGA development board featuring the Spartan-7 (XC7S50–1CSG324C) chip, designed for a wide range of applications. The board is compact and easy to use, making it ideal for both learning and professional prototyping. It is equipped with QSPI flash memory for efficient data storage and an FTDI FT2232H interface for smooth communication with a computer. Users also have access to 8 LEDs and 8 switches that can serve various control functions. The board also includes a seven-segment display for presenting numerical values. Additionally, a built-in SD card slot allows for external memory expansion, and an HDMI transmitter enables video output.
The board supports Gigabit Ethernet for fast network communication and includes an audio jack for multimedia applications. Four PMOD connectors expand the possibilities for connecting additional modules and sensors. Elbert S7 is ideal for digital signal processing, prototyping electronic circuits, and educational projects. It allows for developing advanced applications, testing custom embedded processors, and integrating with accelerated processing systems. With its wide range of features, users can experiment with communication, video and audio processing, and real-time data handling. The board supports FPGA configuration via JTAG and USB, enabling fast project loading. It is a robust and flexible platform for anyone looking to develop FPGA skills or create their own innovative projects.

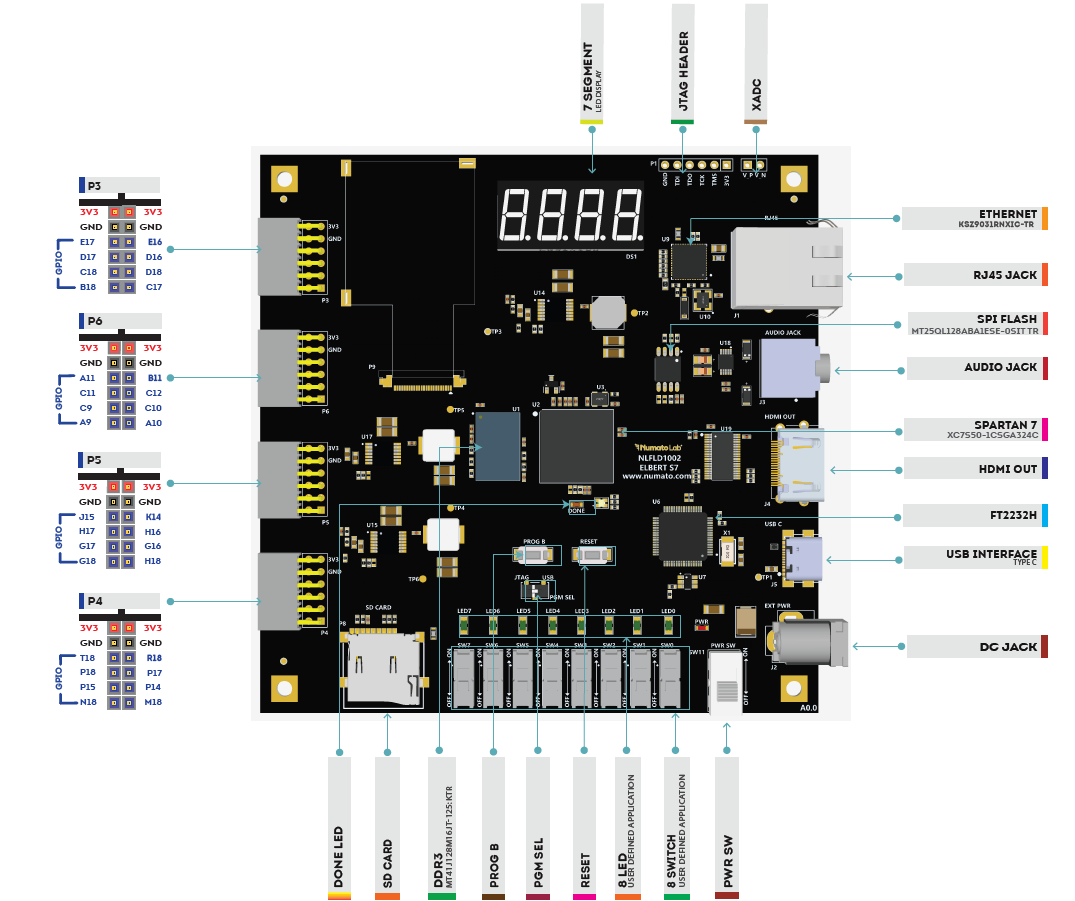

Features
- FPGA: XC7S50 in CSGA324 package, speed grade -1
- DDR3: 2 GB
- Flash memory: 128 MB Quadbit SPI flash
- CMOS oscillator 100 MHz
- Host interface: FTDI FT2232H
- FPGA configuration via JTAG and USB
- 8 switches and 8 LEDs for user-defined functions
- Four PMOD connectors for user expansion
- Seven-segment display for numerical data
- SD card slot for external memory
- HDMI transmitter for video output
- Gigabit Ethernet for fast networking
- Audio jack for multimedia applications
- Dimensions: 112 × 115 × 48 mm
1202956
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
