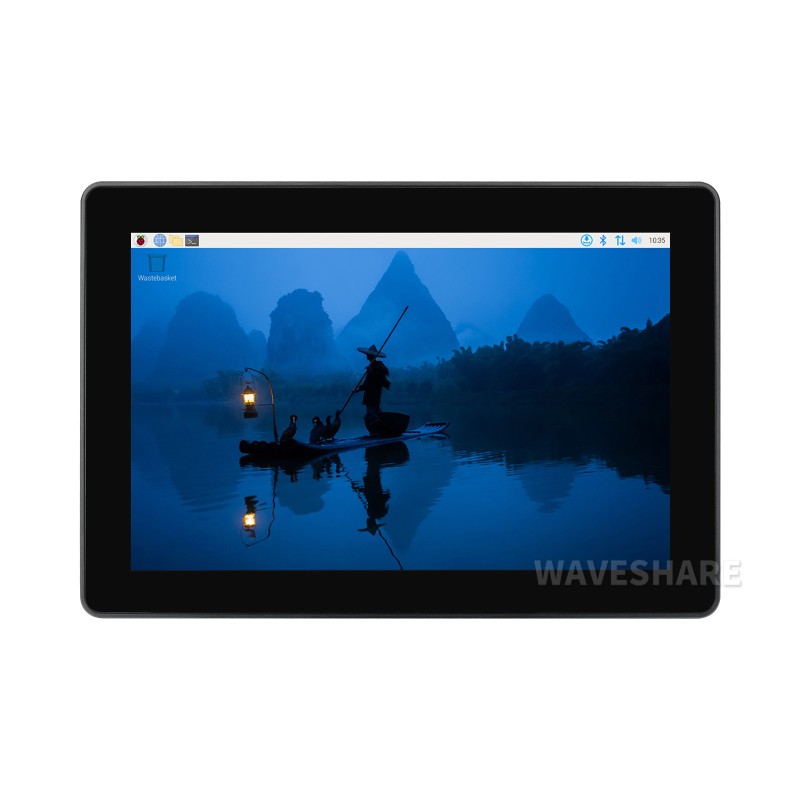

8inch Industrial HMI All-in-one Touch Display – 1280x800 Touchscreen Display for Raspberry Pi with Accessories - Waveshare 31550
ID: 1198457
zł492.09
Tax included
zł400.07 tax excl.
8-inch industrial touchscreen display RPI-HMI-080D-ACCE-B with capacitive panel, aluminum enclosure, and 4K HDMI support, designed for projects using Raspberry Pi. Its compact form and extensive interface capabilities make it a suitable solution for automation, user interfaces, and HMI systems.
Description
8-inch industrial touchscreen display designed for use with Raspberry Pi computers. It features an IPS screen with a resolution of 1280×800 and a wide 178° viewing angle, along with a capacitive touch panel supporting up to 10 simultaneous touch points. The panel is covered with tempered glass up to 6H hardness and utilizes optical bonding for improved visibility and dust resistance. The aluminum enclosure provides fanless passive cooling. The display is equipped with a 5 MP camera, two HDMI ports with 4K output support, four USB ports (2× USB 3.0, 2× USB 2.0), an Ethernet port, TF card slot, power button, and status indicator. Power is supplied via USB Type-C port or 5 V screw terminal. The VESA-compatible design allows flexible mounting. The RPI-HMI-080D-ACCE-B version includes the screen and an accessory kit, excluding the power supply, TF card, and Raspberry Pi.
Features
- Screen size: 8″
- Resolution: 1280×800
- Panel: IPS
- Viewing angle: 178°
- Touch type: capacitive, 10-point
- Surface: tempered glass, optical bonding
- Camera: 5 MP
- Video interface: 2× HDMI with 4K support
- USB ports: 2× USB 3.0, 2× USB 2.0
- Ethernet: 1× Gigabit Ethernet
- Power supply: USB Type-C or 5 V screw terminal
- Enclosure: aluminum, with passive cooling
- Mounting: VESA compatible
- Extras: software brightness adjustment
Included in the set
- 8″ touchscreen display
- Mounting kit: 4× brackets, screw set
- 5 W thermal pad (16×16×1 mm)
- Pi5-HMI accessory kit: side panel, aluminum heatsink, 12 cm DSI cable, silicone button, 15 cm camera ribbon cable
- Pi4-HMI accessory kit: side panel, copper heatsink, 2× 15PIN 160 mm FFC cables
1198457
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 8
- Resolution
- 1280 x 800 px
- Interface
- HDMI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
