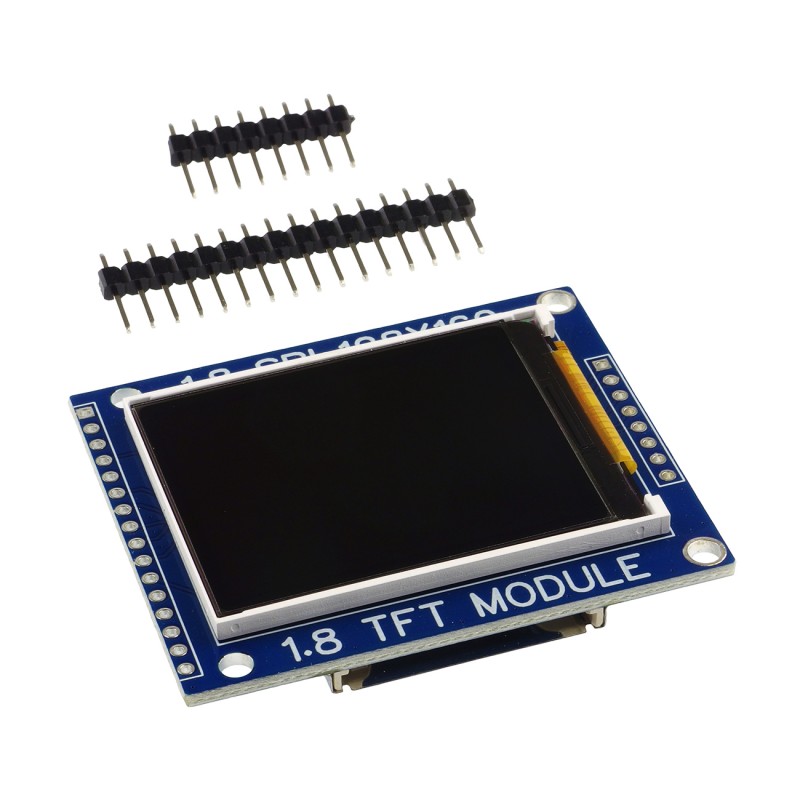

1.8 "TFT display module with SD slot
ID: 576257
5906623457335
zł30.59
Tax included
zł24.87 tax excl.
1.8 "TFT display module with SD slot. The module is based on the ST7735S controller, SPI interface. It has support in the form of libraries for Arduino and STM32. MSP1804
Description
1.8 "TFT display module with SD slot. The module is based on the ST7735S controller, which communicates with the control system via the SPI interface. The display has a resolution of 128x160 px and a 16-bit RGB color (65K colors). It has backlight in the form white LEDs .The module has support in the form of libraries for Arduino and STM32.
Features
- Color display: 16-bit RGB, 65K
- 1.8 "screen size
- Display type: TFT
- IC driver: ST7735S
- Resolution: 128 x 160 px
- 4-pin SPI interface
- Backlight 2 x white LED
- Supply voltage VCC 3.3 V to 5 V
- Operating temperature -20 ℃ to 60 ℃
- 28.03 x 35.04 mm active area
- Module circuit board size 44.96 x 53.47 mm
- Roughness (packaging contains) 18 (g)
576257
Data sheet
- Screen type
- TFT
- Diagonal (inch)
- 1,8
- Resolution
- 128 x 160 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
