128x64 0.96inch White OLED Display - OLED-CG-O12864-WHITE-0i96
ID: 1199518
zł16.40
Tax included
zł13.33 tax excl.
OLED display with a resolution of 128x64 pixels and a 0.96 inch diagonal, monochrome (white), manufactured using COG technology, driven by the SSD1306 controller, with I2C, SPI and 8-bit parallel interfaces. Allvision OHEM12864-03
Description

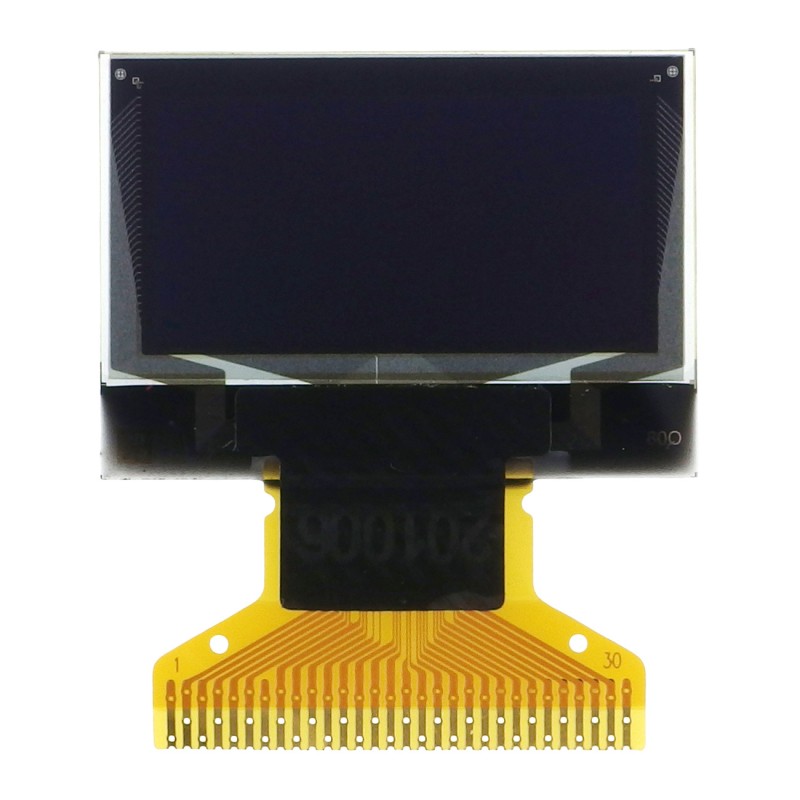

The OLED-CG-O12864-WHITE-0i96 OLED display is intended for use in embedded systems, measurement devices, and microcontroller-based projects. The graphic matrix with a resolution of 128x64 pixels and a 0.96 inch diagonal provides high contrast and good readability without the need for backlighting.
The module is manufactured using COG technology, in which the SSD1306 controller is directly integrated onto the display glass. The design supports communication via I2C, 3-wire and 4-wire SPI, as well as an 8-bit parallel interface, enabling integration with a wide range of microcontrollers. The display supports both an internal DC/DC converter and external power supply, offering flexibility in power system design.
Features
- Controller: SSD1306
- Display type: Graphic OLED
- Display mode: Passive matrix
- Resolution: 128 x 64 pixels
- Screen diagonal: 0.96 inch
- Display color: White
- Manufacturing technology: COG
- Communication interfaces: I2C, 3-wire SPI, 4-wire SPI, 8-bit parallel (68XX, 80XX)
- Logic supply voltage: 1.65 – 3.3 V
- Display supply voltage: 7.0 – 12.5 V

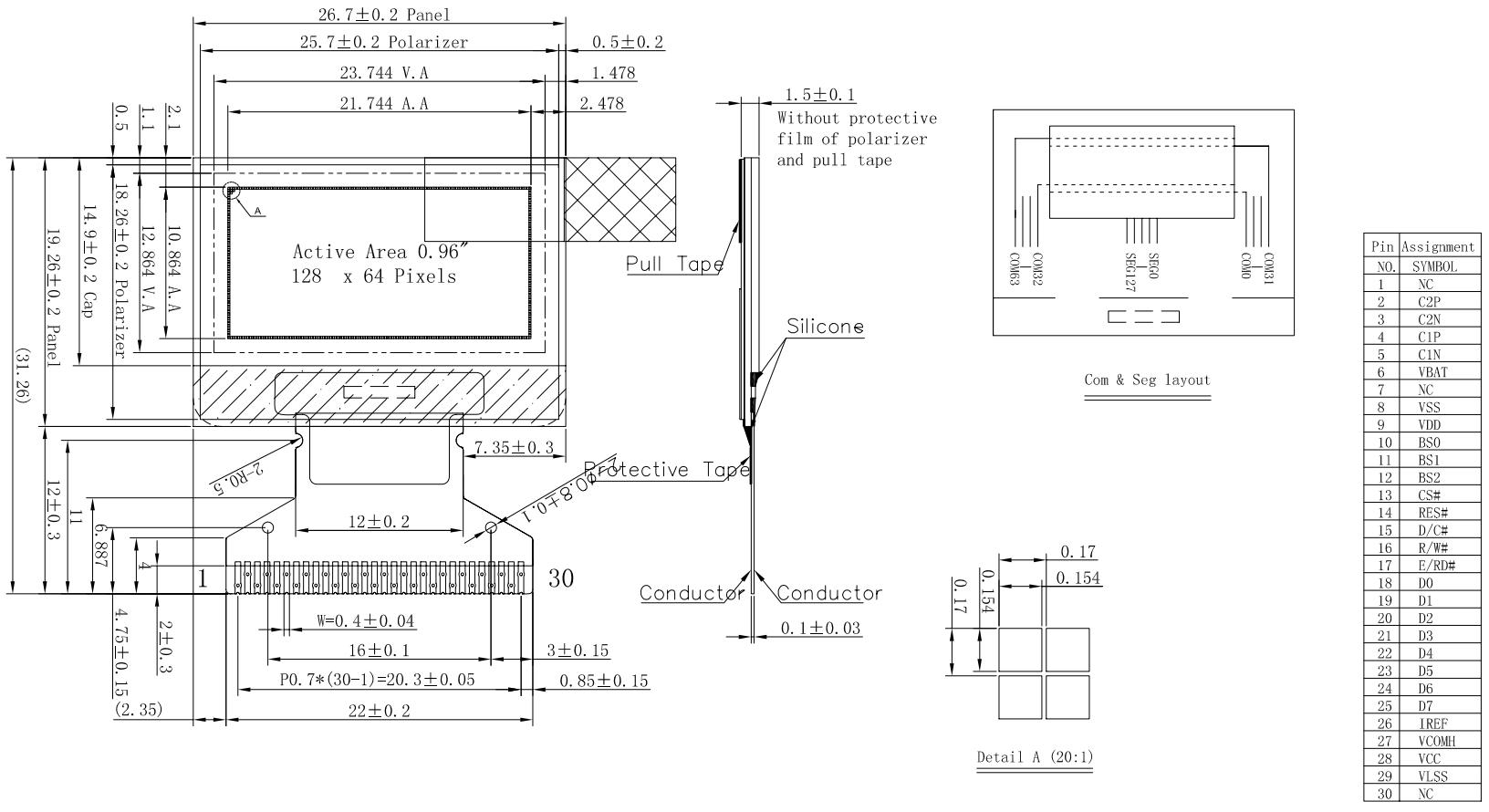

- Active area: 21.744 x 10.864 mm
- Pixel pitch: 0.17 x 0.17 mm
- Pixel size: 0.154 x 0.154 mm
- Operating temperature: -40°C ~ 85°C
- Panel dimensions: 26.7 x 19.26 x 1.4 mm
- Weight: 1.54 g
1199518
Data sheet
- Screen type
- OLED graphic
- Diagonal (inch)
- 0,96
- Resolution
- 128 x 64 px
- Interface
- SPI/I2C
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
