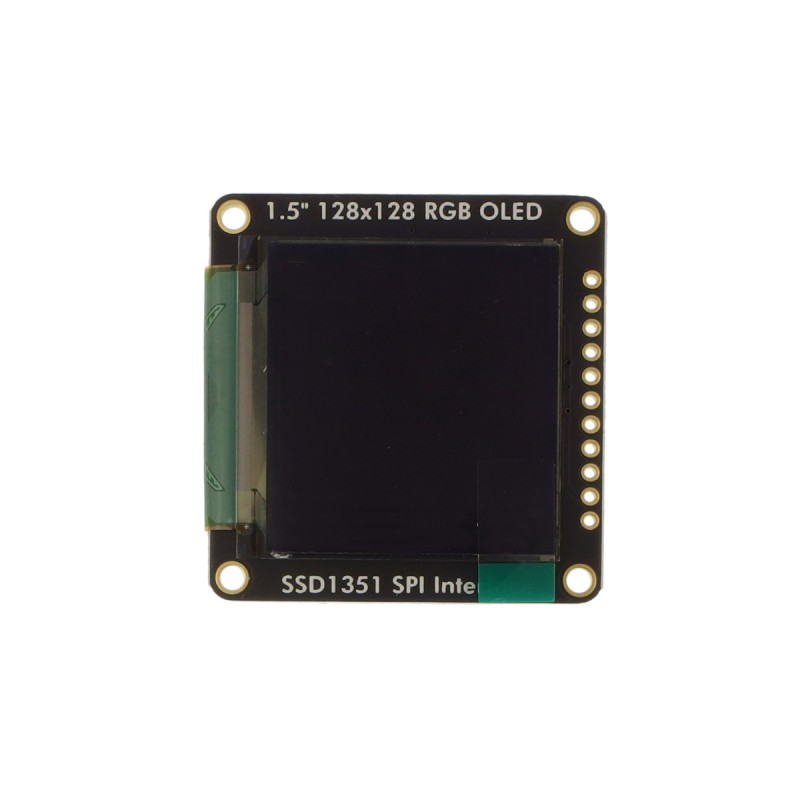

OLED Breakout Board - OLED 1.5" 128x128 display module
ID: 211025
5906623433773
zł215.21
Tax included
zł174.97 tax excl.
OLED color display module with a diagonal of 1.5" and a resolution of 128x128 pixels. It has a built-in SSD1351 driver and communicates via SPI interface. It is equipped with a microSD card slot and an EYESPI connector. Adafruit 1431
Description
OLED color display module with a screen diagonal of 1.5" and a resolution of 128x128 pixels. It has a built-in SSD1351 driver and communicates via SPI interface. It is equipped with a microSD card slot for storing images displayed on the screen and an EYESPI connector. A logic level converter is also included on the board, so it works with circuits powered by 3.3V and 5V. It will find use as a display in small device projects. Full documentation and examples of use are available on the product page.
Features
- Diagonal: 1.5"
- Resolution: 128x128 pixels
- Display type: OLED
- 16-bit resolution colors
- Display controller: SSD1351
- Communication: SPI
- EYESPI interface
- MicroSD card slot
- Power supply voltage: 3.3 to 5.5 V
- Dimensions: 43.17 x 42 x 5.42 mm
Kit contains
- OLED 1.5" 128x128 display
- 16-pin straight goldpin strip
211025
Data sheet
- Screen type
- OLED
- Diagonal (inch)
- 1,5
- Resolution
- 128 x 128 px
- Interface
- SPI
- Touch
- No
