Crowtail – A6 GPRS/GSM Module – GSM/GPRS communication module, quad-band 2G, AT commands, 5–12 V
search
  • Crowtail – A6 GPRS/GSM Module – GSM/GPRS communication module, quad-band 2G, AT commands, 5–12 V
  • Crowtail – A6 GPRS/GSM Module – GSM/GPRS communication module, quad-band 2G, AT commands, 5–12 V
ID: 1201706
zł40.29
Tax included

zł32.76 tax excl.

Crowtail – A6 GPRS/GSM Module enables data transmission, voice calls, and SMS messaging over the 2G network, integrating with Crowtail/Arduino systems. Ideal for remote IoT applications, automation, monitoring, and communication projects.

Delivery date unknown
Out-of-Stock

Description

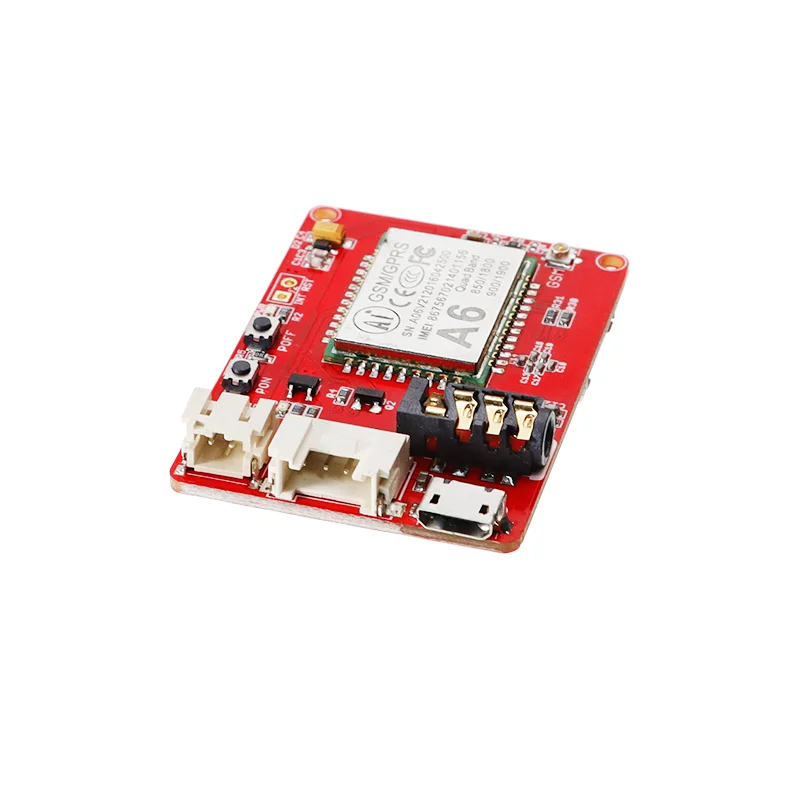

The Crowtail – A6 GPRS/GSM module is a compact wireless communication solution based on the A6 chip, designed for 2G technology. It supports GPRS data transmission, voice calls, and SMS messaging in four GSM bands: 850, 900, 1800, and 1900 MHz, ensuring compatibility with the global GSM network. Intended for M2M applications, tracking systems, smart meters, industrial automation, and environmental monitoring systems. The module is integrated with the Crowtail interface, making it easy to use with Crowduino or Arduino boards. It supports AT commands, TCP/IP transmission, and a wide supply voltage range from 5 to 12 V.

Properties

  • Power supply: 5–12 V
  • Operating temperature range: –30°C to +80°C
  • Standby mode: average current consumption <3 mA
  • Supported GSM bands: 850 / 900 / 1800 / 1900 MHz
  • Support for GSM/GPRS networks (China Mobile, China Unicom, global 2G)
  • GPRS Class 10: up to 85.6 kbps (downlink), 42.8 kbps (uplink)
  • Support for voice calls, SMS, USSD
  • Data transmission support: PPP, TCP, UDP, HTTP, FTP, SMTP
  • AT interface: standard GSM 07.07, 07.05 commands and extended Ai-Thinker commands
  • Voice codecs: HR, FR, EFR, AMR
  • Support for two serial ports (for data and commands)
  • Dimensions: 50.0 × 35.0 × 7.2 mm

Included

  • Crowtail – A6 GPRS/GSM module x1
  • Crowtail 4-pin cable x1
