Advanced IoT module combining global LTE-M/NB-IoT connectivity with precise GNSS positioning (GPS, GLONASS, BeiDou, Galileo). With wide compatibility, two antenna interfaces and AT Command support, it is ideal for projects requiring reliable data transmission and real-time location tracking. M5Stack U137

24h
Available
Available quantity: 1

Description

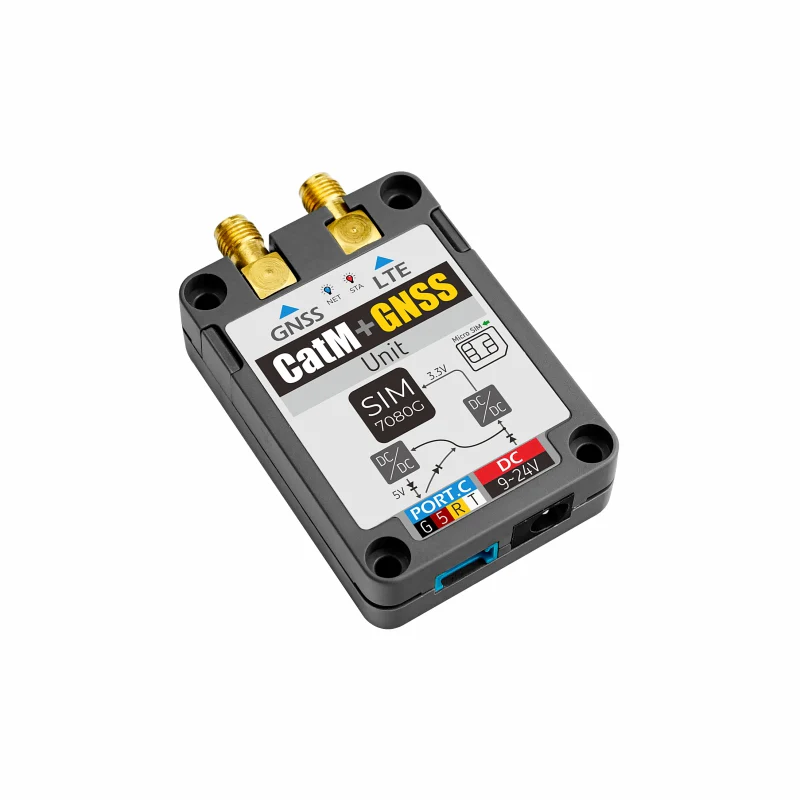

The CatM+GNSS Unit is a next-generation global communication module that combines wireless data transmission capabilities with precise GNSS positioning. Equipped with the internal SIM7080G module, it supports both CAT-M (LTE-M) and NB-IoT technologies, operating across multiple frequency bands worldwide. This ensures reliable connectivity for global IoT projects.


The device supports satellite positioning via GPS, GLONASS, BeiDou, and Galileo systems, enabling accurate tracking and real-time location. Communication is handled through a UART interface (3.3V TTL), and control is managed via AT commands, allowing for easy integration with popular platforms like Arduino IDE and UIFlow. Two SMA connectors for antennas (LTE and GNSS) enhance signal quality and transmission stability, especially in challenging environments. The module also features a MicroSIM slot and supports two power input options: external 9 to 24 V or 5 V via HY2.0-4P cable. This versatile unit is ideal for applications such as remote monitoring, asset tracking, remote control, and other projects requiring global connectivity and positioning.

Features

  • Supported communication modes: Cat-M (LTE-M), NB-IoT
  • Global CAT-M bands: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
  • Global NB-IoT bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
  • GNSS: GPS, GLONASS, BeiDou, Galileo
  • Data rates: Cat-M (Uplink: 1119Kbps, Downlink: 589Kbps), NB-IoT (Uplink: 150Kbps, Downlink: 136Kbps)
  • Supported protocols: TCP, UDP, HTTP, HTTPS, TLS, DTLS, PING, LWM2M, COAP, MQTT
  • Antenna connectors: 2x SMA (LTE + GNSS)
  • SIM slot: MicroSIM
  • Power supply: DC 9 to 24V (5.5/2.1mm jack) or DC 5V (via HY2.0-4P)
  • Communication interface: UART (3.3V TTL), controlled via AT commands
  • Development platforms: Arduino IDE, UIFlow
  • Mounting: 4 mounting holes
  • Dimensions: 62 x 40 x 18.4 mm

Kit contains

  • CatM+GNSS Unit
  • 4G Antenna (Telec)
  • GPS Antenna
  • HY2.0-4P Cable (20 cm)
