ID: 1195208
5902186308527
zł1,492.63
Tax included

zł1,213.52 tax excl.

5G+Wi-Fi 6 router, offering download speeds of up to 790 Mbps on the 5G network and speeds of up to 3000 Mbps on dual-band Wi-Fi, providing exceptional speed and stability of the connection. Equipped with the Qualcomm IPQ5018 chipset and Snapdragon SDX 62 5G, the router supports Wi-Fi roaming technologies and provides high performance in demanding applications. With a metal housing, 4 SMA-K ports for external antennas and 1 micro SIM port, the U300 is a reliable solution for commercial and industrial applications. PUSR U300-G

24h
Available
Available quantity: 1
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

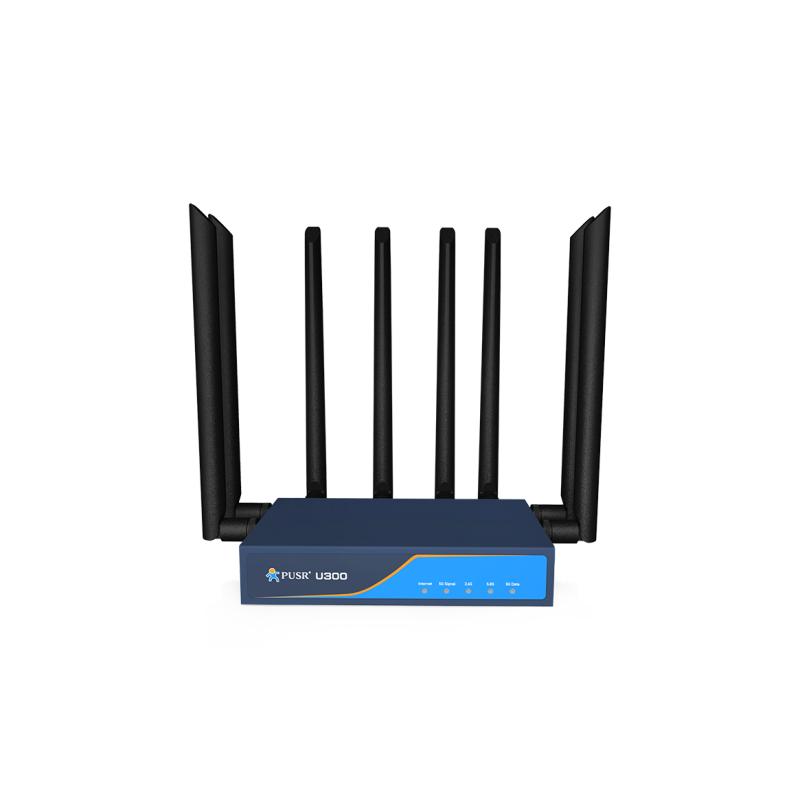

The U300 is a modern 5G+Wi-Fi 6 router designed to deliver exceptional speed, wide coverage, low latency, and high connection stability. The device supports 5G NR SA/NSA technologies, offering download speeds up to 790 Mbps on the 5G network, ensuring ultra-fast internet access. With support for Wi-Fi 6, the U300 provides users with fast and reliable connections. The router is equipped with the Qualcomm IPQ5018 chipset and a Dual-Core processor, as well as the Qualcomm Snapdragon SDX 62 5G Chip, which ensures high performance and excellent network handling.


The U300 supports dual-band Wi-Fi (2.4 GHz and 5 GHz) with speeds up to 3000 Mbps, and thanks to Wi-Fi roaming technology, users can enjoy seamless switching between networks. The router features 4 SMA-K connectors for external antennas and 1 micro SIM slot, offering full flexibility in adapting the device to different needs. Powered by DC 12V/2A, the U300 has low power consumption and a robust metal casing, resistant to external conditions. With advanced network management features and easy software updates, the U300 is an ideal solution for commercial and industrial applications requiring stable and fast connections.

Features

  • Chipsets: Qualcomm IPQ5018 + Qualcomm Snapdragon SDX 62
  • Cellular Interface: 5G Qualcomm Snapdragon SDX 62 Chip
  • Bands:
    • 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
    • 5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
    • LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
    • LTE TDD: B34/B38/B39/B40/B41/B42/B43/B46(LAA)/B48
  • MIMO:
    • 5G NR SA: 4 x 4(DL) / 2 x 2(UL)
    • 5G NR NSA: 4 x 4(DL)
    • LTE: 4 x 4(DL)
  • Maximum Data Transfer Speeds:
    • SA: 2.4 Gbps (DL) / 900 Mbps (UL)
    • NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
    • LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
  • Antenna: 4 × SMA-K Connectors (Center Pin: SMA Female)
  • SIM Slot: 1 x Micro SIM slot
  • Wi-Fi Interface:
    • Wi-Fi Chipsets:
      • 2.4GHz: Qualcomm IPQ5018
      • 5GHz: Qualcomm QCN6102 (Wi-Fi 6)
    • Antenna:
      • 2.4G: 2 × SMA-K Connectors (Center Pin: SMA Female)
      • 5G: 2 × SMA-K Connectors (Center Pin: SMA Female)
    • MIMO:
      • 2.4GHz: 2 x 2
      • 5GHz: 2 x 2
    • Encryption: WPA2, WPA3
    • Standards:
      • 2.4 GHz: IEEE802.11b/g/n/ax
      • 5.8 GHz: IEEE 802.11a/n/ac/ax
    • Data Transfer Speeds:
      • 2.4G Wi-Fi: maximum speed up to 573 Mbps
      • 5G Wi-Fi: maximum speed up to 2474 Mbps
    • 2.4 GHz Channels: 1/2/3/4/5/6/7/8/9/10/11/12/13
    • 5 GHz Channels: 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140
  • WAN/LAN Port: 1 x WAN (can be configured as LAN), 10/100/1000 Mbps, auto MDI/MDIX
  • LAN Port: 2 x LAN, 10/100/1000 Mbps, auto MDI/MDIX
  • System Status: System information, WAN, LAN, WLAN
  • Mobile Settings: SIM card information
  • Network Settings: Operation mode, WAN/LAN switch, WAN settings, wireless connection, 5G AT and 5G NR
  • WLAN Settings: 2.4G settings, 5G settings
  • LAN Settings: IP address, subnet mask, etc.
  • Software Update: Software update via web page
  • WPS/Reset: WPS: Press button once. Reset: Hold button for 5 seconds
  • Restart: Restart CPE router
  • UART: Type-C interface for software updates
  • LED Indicators: Internet, 5G signal, 2.4G, 5G, 5G Data
  • Power Supply: DC 12V/2A
  • Metal Housing, IP30 Protection Rating
  • Wall Mountable
  • Operating Temperature: -10℃ to +45℃

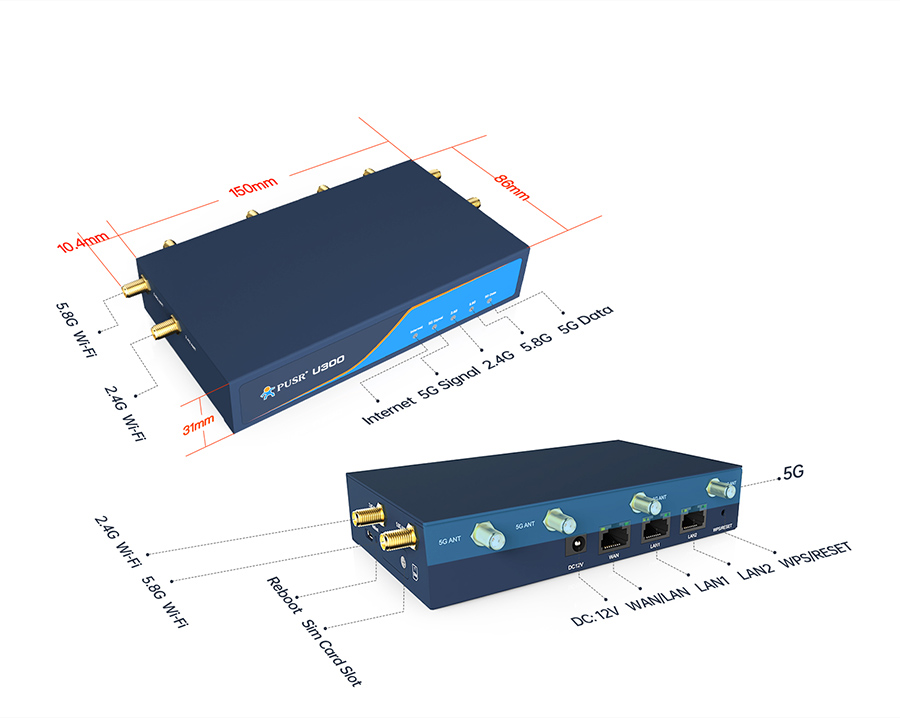

  • Dimensions: 170.8 x 86 x 31.2 mm

Kit contains

  • U300-G Router
  • 2 x 2.4GHz Antenna
  • 2 x 5.8GHz Antenna
  • 4 x 5G Antenna Rod
  • Mounting Brackets
  • 4 x Screw Set
