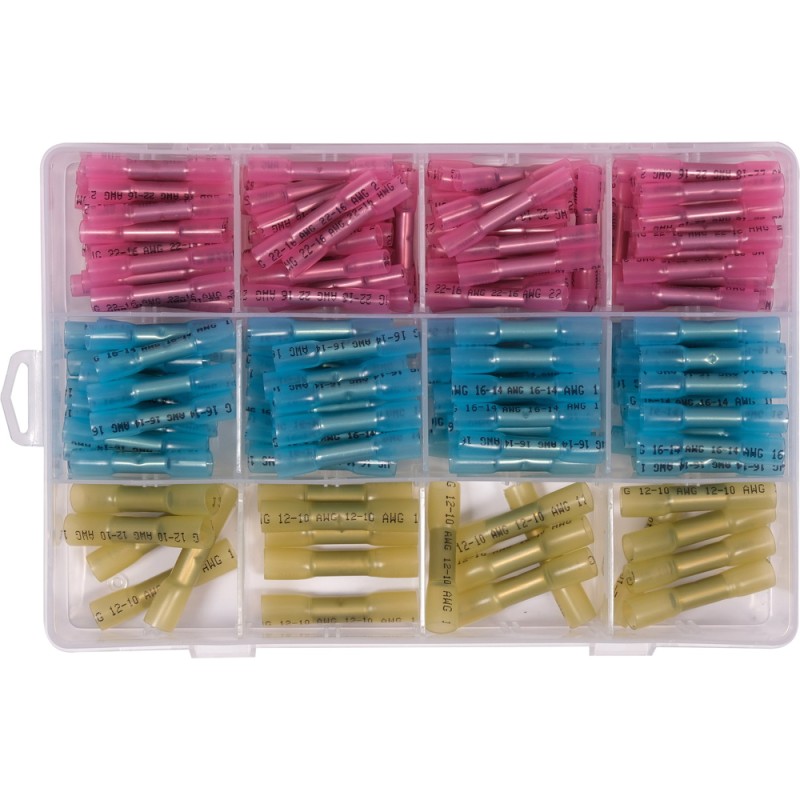

Close-up of YT‑81461 sleeve set – top view
search
  • Close-up of YT‑81461 sleeve set – top view
  • Open YT‑81461 sleeve set – front view
ID: 1192497
5906083079672
zł42.14
Tax included

zł34.26 tax excl.

Set of crimp heat‑shrink sleeves for 0.5‑6 mm² wires with copper connectors and internal adhesive lining. Yato YT‑81461

24h
Available
Available quantity: 2

Description

The Yato YT‑81461 set includes 200 crimp heat‑shrink sleeves designed to create durable, sealed connections on electrical wires with cross‑sections from 0.5 to 6 mm² (20‑10 AWG). Each sleeve consists of a copper barrel connector mounted inside a heat‑shrink tube with an outer PE jacket and an inner thermally activated adhesive layer that melts upon heating to form an additional seal at the interface between the wire insulation and the connector.

When the copper connectors are properly crimped, electrical conductivity is maintained with minimal resistance, and the shrunk heat‑shrink tube provides a hermetically sealed and mechanically stable joint without the need for extra insulation or tape. The product is used in electrical installations, vehicles, machines, and equipment where connections must withstand moisture and vibration.

Features

  • Product type: crimp heat‑shrink sleeves
  • Quantity in set: 200
  • Wire cross‑section range: 0.5 – 6 mm² (20‑10 AWG)
  • Connector material: copper
  • Heat‑shrink tube material: PE with internal thermoplastic adhesive
  • Shrink temperature: ~80 °C
  • Sealing: yes
  • Colors: standard set (e.g., red, blue, yellow)
  • Application: durable electrical wire connections
  • Intended use: electrical installations, machinery, vehicles, electrical equipment

Kit includes

  • 200 × crimp heat‑shrink sleeves Yato YT‑81461 0.5–6 mm²
1192497

Manufacturer TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl

Responsible person TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
