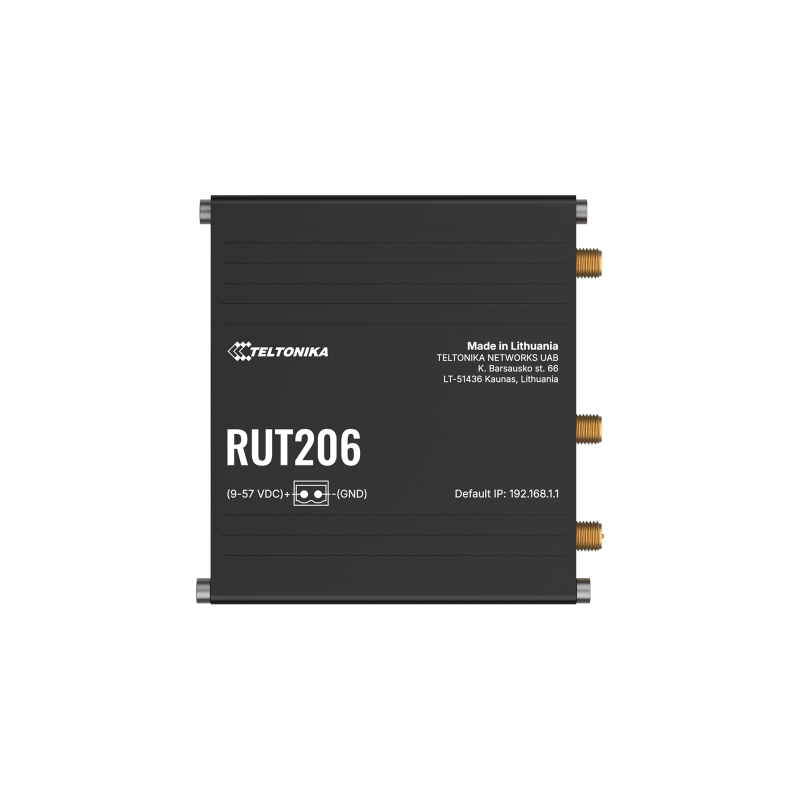

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1207994
4779051842049
zł615.62
Tax included

zł500.50 tax excl.

Industrial cellular router for communication with automation equipment and M2M systems; 4G LTE Cat 4 up to 150 Mbps; 3G and 2G; Dual SIM with automatic switching; RS232 and RS485; WiFi 4; 1 x WAN and 1 x LAN 10/100 Mbps; active 802.3af PoE In and passive PoE; 9-57 VDC power supply; microSD slot up to 2 TB; Modbus RTU/TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; RutOS operating system; Teltonika RMS support. Teltonika RUT206

24h
Available
Available quantity: 1

Description

Industrial cellular router designed for integrating automation equipment using RS232 and RS485 interfaces with IP networks and IoT/M2M systems. Teltonika RUT206 supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as 3G and 2G networks. Two Mini SIM slots enable automatic SIM switching in cases including weak signal, roaming, network loss or data connection failure. The router also provides WiFi 4 802.11b/g/n with support for up to 50 simultaneous clients, one 10/100 Mbps WAN port, one 10/100 Mbps LAN port and RS232 and RS485 interfaces. An internal microSD slot supports cards with capacities up to 2 TB, providing expandable local data storage.

OpenWrt-based RutOS provides routing, load balancing, firewall, VLAN, VPN, Hotspot 2.0 and support for Modbus RTU/TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT. The RS485 interface operates in half-duplex mode with a 2-wire connection, while RS232 operates without hardware flow control. The router can be powered from 9-57 VDC, via active 802.3af PoE In or passive 16-57 VDC PoE, providing several power options for industrial installations. An anodized aluminium housing, an operating temperature range from -40°C to 75°C and remote management through Teltonika RMS support deployment in industrial automation, telemetry, measurement systems, machine control and distributed IoT and M2M installations.

Features

  • Cellular connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 9
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Band management and band lock
    • SIM PIN management
    • Auto APN
    • Bridge and Passthrough modes
    • 2 x SMA connector for mobile antennas
  • Dual SIM
    • SIM slots: 2 x Mini SIM (2FF)
    • SIM voltage: 1.8 V / 3 V
    • Automatic SIM switching
    • SIM Idle Protection
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denial, data connection failure
  • WiFi
    • Standard: IEEE 802.11b/g/n
    • Class: WiFi 4
    • Operating modes: Access Point (AP), Station (STA)
    • Maximum number of simultaneous clients: 50
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11s Wireless Mesh
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • Relayd
    • SSID hiding
    • MAC address-based access control
    • MAC allowlist and blocklist
    • QR code generator for WiFi connection
    • TravelMate
    • Antenna connector: 1 x RP-SMA for WiFi
  • Ethernet
    • 1 x RJ45 WAN port, 10/100 Mbps
    • 1 x RJ45 LAN port, 10/100 Mbps
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3az compliance
    • Auto MDI/MDIX
  • RS232 and RS485
    • 1 x RS232 interface
    • RS232 without hardware flow control signals
    • 1 x RS485 interface
    • RS485 Half Duplex
    • RS485: 2-wire connection
    • Shared RS232 and RS485 connector: 6-pin terminal block
  • microSD storage
    • Internal microSD slot
    • Maximum card capacity: 2 TB
    • Supported file systems: FAT32, NTFS, ext2, ext3, ext4
    • Samba Share support
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • Modbus RTU: Client, Server via RS232 and RS485
    • DNP3: TCP Master, Outstation
    • DNP3 via RS232, RS485 and TCP
    • DLMS/COSEM: Client via TCP
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • BACnet RTU via RS485
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, mobile, VRRP, wired connection
    • Automatic Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • Hotspot 2.0
    • SSHFS
    • Real-time network traffic monitoring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port-based and tag-based VLAN
    • DDoS attack prevention
    • Port scan prevention
    • Mobile data quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Pre-shared key and X.509 certificate authentication
    • TACACS+
    • RADIUS
    • 802.1X
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • CPU: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash storage: 32 MB NOR Flash
  • PoE and power supply
    • Input voltage: 9-57 VDC
    • Power connector: industrial 2-pin connector
    • Active PoE In: IEEE 802.3af Class 0
    • Active PoE In available on the LAN port
    • Passive PoE over spare pairs 4,5 (+) / 7,8 (-)
    • Passive PoE voltage: 16-57 VDC
    • Reverse polarity protection
    • Surge protection
    • Idle power consumption: < 2 W
    • Maximum power consumption: < 3.5 W
  • Mechanical and environmental specifications
    • Housing: anodized aluminium
    • Dimensions: 83 x 25 x 83 mm
    • Weight: 132 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional kit
    • 3 x connection type status LED
    • 3 x connection strength LED
    • 2 x Ethernet status LED
    • 1 x power LED
    • Reset button

Kit includes

  • Teltonika RUT206 router
  • Quick Start Guide
  • 2-pin power connector
  • 2 x 3-pin connector
  • Hex key
  • SIM adapter kit
1207994

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n
WiFi Band
2,4 GHz
Number of Ethernet Ports
2
Number of SIM Cards
2
eSIM
No
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
1
RS485
1
DIN Rail Mounting
No
Power supply voltage
9 - 57 V DC
Tightness class
IP30
