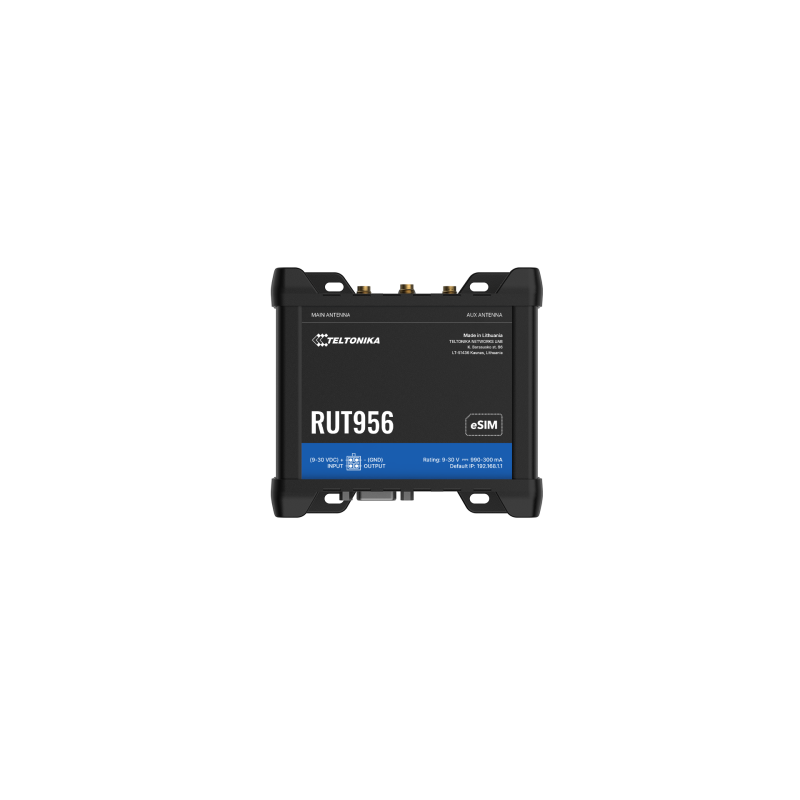

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208023
4779051840175
zł1,049.60
Tax included

zł853.33 tax excl.

Industrial cellular router for automation, telemetry, IoT and M2M systems; 4G LTE Cat 4 up to 150 Mbps; 3G and 2G; Dual SIM with automatic switching; WiFi 4; 1 WAN port and 3 LAN 10/100 Mbps ports; RS232 and RS485; GNSS with GPS, GLONASS, BeiDou, Galileo and QZSS; USB 2.0; digital, analog and relay inputs and outputs; Modbus RTU/TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; passive PoE 9-30 VDC; RutOS; Teltonika RMS; operating temperature from -40°C to 75°C. Teltonika RUT956

2 weeks
Awaiting delivery

Description

Industrial cellular router designed to connect automation devices, measurement systems, controllers and IoT infrastructure with cellular, Ethernet and WiFi networks. Teltonika RUT956 supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as 3G and 2G networks. Two Mini SIM slots enable automatic SIM switching in cases such as weak signal, roaming, network loss or data connection failure. The router provides WiFi 4 802.11b/g/n, one WAN port and three 10/100 Mbps LAN ports, automatic WAN Failover and load balancing.

RS232 and RS485 interfaces and a USB 2.0 port, combined with an extensive set of inputs and outputs, enable integration of industrial devices, meters, sensors and controllers using serial communication. The GNSS receiver supports GPS, GLONASS, BeiDou, Galileo and QZSS, as well as NMEA 0183, NTRIP and geofencing functions, allowing the router to operate in location systems, transport applications and mobile installations. RutOS based on OpenWrt provides routing, firewall, VLAN, VPN and support for Modbus RTU/TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT, while Teltonika RMS enables remote configuration and monitoring. 9-30 VDC power supply and passive PoE on the LAN1 port, combined with the aluminium enclosure and operating temperature range from -40°C to 75°C, support use in industrial automation, energy systems, telemetry, monitoring and remote infrastructure supervision.

Features

  • Cellular connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 11
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Multiple PDN
    • Band management and band lock
    • SIM PIN code management
    • Auto APN
    • Bridge and Passthrough modes
    • 2 x SMA connector for LTE antennas
  • Dual SIM
    • 2 x Mini SIM slot (2FF)
    • SIM voltage: 1.8 V / 3 V
    • External SIM holders
    • Automatic SIM switching
    • SIM Idle Protection
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure
  • WiFi
    • Standard: IEEE 802.11b/g/n
    • Class: WiFi 4
    • Operating modes: Access Point (AP), Station (STA)
    • Maximum simultaneous connections: 100
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11s Wireless Mesh
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • Relayd
    • SSID hiding
    • MAC address-based access control
    • MAC allowlist and blocklist
    • WiFi connection QR code generator
    • TravelMate
    • 2 x RP-SMA connector for WiFi antennas
  • Ethernet
    • 1 x WAN RJ45 10/100 Mbps port
    • 3 x LAN RJ45 10/100 Mbps ports
    • Total: 4 x 10/100 Mbps Ethernet ports
    • IEEE 802.3 and IEEE 802.3u compliant
    • WAN port also compliant with IEEE 802.3az
    • Auto MDI/MDIX
    • Port Mirroring
  • RS232 and RS485
    • 1 x RS232 interface
    • RS232 connector: DB9
    • RTS/CTS flow control
    • 1 x RS485 interface
    • RS485 Full Duplex: 4-wire
    • RS485 Half Duplex: 2-wire
    • RS485 baud rate: 300 to 115200 baud
    • RS485 connector: 6-pin industrial connector
    • Serial functions: Console, Serial over IP, Modem, Modbus Gateway, NTRIP Client
  • GNSS
    • Supported systems: GPS, GLONASS, BeiDou, Galileo, QZSS
    • Coordinate access via WEB UI, SMS, TAVL and RMS
    • NMEA 0183 support
    • NTRIP support
    • Geofencing
    • TAVL and RMS support
    • 1 x SMA connector for GNSS antenna
  • USB
    • 1 x USB Type-A port
    • Standard: USB 2.0
    • Samba Share support
    • USB-to-Serial support
    • External HDD support
    • Flash drive support
    • Additional modem support
    • Printer support
    • USB-Serial adapter support
    • Supported file systems: FAT, FAT32, exFAT, NTFS read-only, ext2, ext3, ext4
  • Inputs and outputs
    • 1 x digital dry input 0-3 V
    • 1 x galvanically isolated digital input 0-30 V
    • 1 x analog input 0-24 V with 4-20 mA support
    • 1 x digital open collector output 30 V / 250 mA
    • 1 x SPST relay output 40 V / 4 A
    • Event support via Email, RMS and SMS
    • I/O Juggler
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • Modbus RTU over RS232 and RS485
    • Modbus over USB
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • BACnet RTU over RS485 and USB
    • DNP3: Station, Outstation
    • DNP3 over RS232, RS485, TCP and USB
    • DLMS/COSEM: Client
    • DLMS/COSEM over RS232, RS485 and TCP
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, mobile, VRRP, wired
    • Automatic WAN Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • Hotspot 2.0
    • SSHFS
    • VRF
    • Real-time traffic monitoring
    • Port Mirroring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port- and tag-based VLAN
    • DDoS attack prevention
    • Port scan prevention
    • Mobile data quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Authentication using pre-shared keys and X.509 certificates
    • TACACS+
    • RADIUS
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: RutOS based on OpenWrt
    • WEB UI over HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • Processor: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash memory: 16 MB SPI Flash
  • Power supply
    • Power connector: industrial 4-pin DC connector
    • Input voltage: 9-30 VDC
    • Reverse polarity protection
    • Surge protection
    • Passive PoE over spare pairs of the LAN1 port
    • Passive PoE: Mode B, 9-30 VDC
    • Passive PoE not compliant with IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt
    • Idle power consumption: below 2 W
    • Maximum power consumption: below 7 W
  • Mechanical and environmental parameters
    • Housing: aluminium with plastic panels
    • Dimensions: 110 x 50 x 100 mm
    • Weight: 287 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional mounting kit
    • 1 x bi-colour connection status LED
    • 5 x mobile signal strength LED
    • 4 x Ethernet status LED
    • 1 x power LED
    • Reset button

Kit includes

  • Teltonika RUT956 router
  • 9 W power supply
  • 2 x LTE antenna
  • 2 x WiFi antenna
  • GNSS antenna
  • RS485 connector
  • I/O connector
  • 1.5 m Ethernet cable
  • SIM adapter kit
  • Quick Start Guide
1208023

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n
WiFi Band
2,4 GHz
Number of Ethernet Ports
4
Number of SIM Cards
2
eSIM
No
GNSS
Yes
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
1
RS485
1
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
