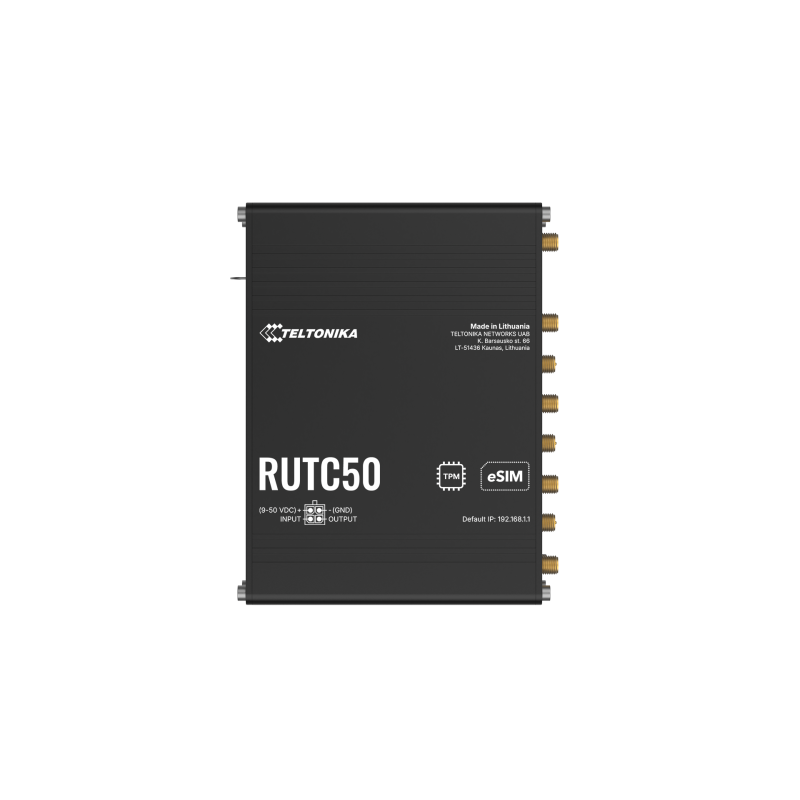

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208037
4779051844081
zł3,065.43
Tax included

zł2,492.22 tax excl.

Industrial 5G router for IoT systems, automation, edge computing and infrastructure requiring high-speed data transmission; 5G Sub-6 GHz SA/NSA up to 3.4 Gbps download and 900 Mbps upload; 4G LTE Cat 19/18 up to 1.6 Gbps / 200 Mbps; 3G; Dual SIM and eSIM; dual-band WiFi 6 with MU-MIMO up to 2402 Mbps at 5 GHz and 576 Mbps at 2.4 GHz; up to 512 WiFi clients; 1 WAN port and 4 Gigabit Ethernet LAN ports; Docker; dual-core 1.3 GHz ARM Cortex-A53 processor; 1 GB DDR4 RAM; 8 GB eMMC; GNSS; USB 2.0; digital input and output; TPM 2.0; Modbus TCP/USB, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; passive PoE 9-50 VDC; RutOS; Teltonika RMS; operating temperature from -40°C to 75°C. Teltonika RUTC50

24h
Available
Available quantity: 1

Description

Industrial 5G router designed for high-speed data transmission and local data processing in IoT systems, automation, monitoring and distributed industrial infrastructure. Teltonika RUTC50 supports 5G Sub-6 GHz SA/NSA with download speeds up to 3.4 Gbps and upload speeds up to 900 Mbps, as well as 4G LTE Cat 19/18 and 3G networks. Two Mini SIM slots and eSIM support enable automatic connection switching in cases such as weak signal, roaming, network loss or data connection failure. The router provides dual-band WiFi 6 802.11b/g/n/ac/ax with MU-MIMO, speeds up to 2402 Mbps at 5 GHz and 576 Mbps at 2.4 GHz, support for up to 512 simultaneous clients and five Gigabit Ethernet ports: one WAN and four LAN ports.

A dual-core 1.3 GHz ARM Cortex-A53 processor, 1 GB DDR4 RAM and 8 GB eMMC storage provide resources for local data processing, while Docker support enables containerized applications and custom services to run directly on the router. The GNSS receiver supports GPS, GLONASS, BeiDou, Galileo and QZSS, while the USB 2.0 port and digital input and output expand integration capabilities with external equipment. RutOS provides routing, firewall, VLAN, VPN and support for Modbus, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT, while TPM 2.0 supports device identification and authentication. Teltonika RMS enables remote configuration and monitoring. A 9-50 VDC input range, passive PoE through LAN1, anodized aluminium enclosure and operating temperature range from -40°C to 75°C support use in edge computing, industrial automation, energy systems, monitoring and applications requiring high cellular network throughput.

Features

  • Cellular connectivity
    • Standard: 5G Sub-6 GHz SA/NSA
    • 5G download speed: up to 2.4 Gbps SA / 3.4 Gbps NSA
    • 5G upload speed: up to 900 Mbps SA / 550 Mbps NSA
    • 5G MIMO: 4x4 for download / 2x2 for upload
    • 4G LTE: Cat 19 for download / Cat 18 for upload
    • 4G LTE speed: up to 1.6 Gbps download / 200 Mbps upload
    • 3G speed: up to 42 Mbps download / 5.76 Mbps upload
    • 3GPP: Release 16
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Multiple PDN
    • Band management and band lock
    • SIM Idle Protection
    • SIM PIN code management
    • Auto APN
    • Bridge and Passthrough modes
    • Framed Routing
    • 4 x SMA connector for cellular antennas
  • Dual SIM and eSIM
    • 2 x Mini SIM slot (2FF)
    • SIM voltage: 1.8 V / 3 V
    • External SIM holders
    • eSIM support
    • Up to 7 eSIM profiles
    • eSIM profile download and removal
    • Automatic SIM and eSIM switching
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure
    • SIM Idle Protection
  • WiFi
    • Standard: IEEE 802.11b/g/n/ac/ax
    • Class: WiFi 6
    • Bands: 2.4 GHz and 5 GHz
    • Dual Band
    • MU-MIMO
    • Maximum speed at 5 GHz: 2402 Mbps
    • Maximum speed at 2.4 GHz: 576 Mbps
    • Maximum simultaneous connections: 512
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11s Wireless Mesh
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • SSID hiding
    • MAC address-based access control
    • MAC allowlist and blocklist
    • WiFi connection QR code generator
    • TravelMate
    • 3 x RP-SMA connector for WiFi antennas
  • Ethernet
    • 1 x WAN RJ45 10/100/1000 Mbps port
    • 4 x LAN RJ45 10/100/1000 Mbps ports
    • Total: 5 x Gigabit Ethernet ports
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3az compliant
    • Auto MDI/MDIX
    • Port Mirroring
  • Edge Computing and Docker
    • Docker container support
    • Running custom applications and services directly on the router
    • Local data processing and storage
    • Cloud service integration
  • GNSS
    • Supported systems: GPS, GLONASS, BeiDou, Galileo, QZSS
    • Coordinate access via WEB UI, SMS, TAVL and RMS
    • NMEA 0183 support
    • NTRIP support
    • Geofencing
    • TAVL and RMS support
    • 1 x SMA connector for GNSS antenna
  • USB
    • 1 x USB Type-A port
    • Standard: USB 2.0
    • Samba Share
    • USB-to-Serial
    • External HDD support
    • Flash drive support
    • Additional modem support
    • Printer support
    • USB-Serial adapter support
    • Supported file systems: FAT, FAT32, exFAT, NTFS read-only, ext2, ext3, ext4
  • Inputs and outputs
    • 1 x digital input
    • Input logic low: 0-6 V
    • Input logic high: 8-50 V
    • 1 x digital open collector output
    • Maximum output parameters: 50 V / 300 mA
    • Input and output on the 4-pin power connector
    • Event support via Email, RMS and SMS
    • I/O Juggler
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • Modbus over USB
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • BACnet RTU over USB
    • DNP3: Station, Outstation
    • DNP3 over TCP
    • DLMS/COSEM: Client
    • DLMS/COSEM over TCP and USB
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Lua scripting support in Data to Server
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, mobile, VRRP, wired
    • Automatic WAN Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • Hotspot 2.0
    • SSHFS
    • Real-time network traffic monitoring
    • Port Mirroring
  • Security and VPN
    • TPM 2.0
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port- and tag-based VLAN
    • 802.1X Client
    • DDoS attack prevention
    • Port scan prevention
    • Mobile data quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Authentication using pre-shared keys and X.509 certificates
    • TACACS+
    • RADIUS
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • Tailscale
    • NetBird
    • GRE
    • EoIP
    • OpenConnect
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: RutOS based on OpenWrt
    • WEB UI over HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • Email notifications
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
    • Docker
  • Hardware
    • Processor: MediaTek Dual-core 1.3 GHz ARM Cortex-A53
    • RAM: 1 GB DDR4
    • Flash memory: 16 MB Serial NOR Flash
    • eMMC storage: 8 GB
  • Power supply
    • Power connector: industrial 4-pin DC connector
    • Input voltage: 9-50 VDC
    • Reverse polarity protection
    • Surge and transient voltage protection
    • Passive PoE through LAN1
    • Passive PoE: Mode B, 9-50 VDC
    • Passive PoE not compliant with IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt
    • Idle power consumption: below 5.6 W
    • Maximum power consumption: below 20.2 W
  • Mechanical and environmental parameters
    • Housing: anodized aluminium
    • Dimensions: 130.4 x 42.6 x 103.4 mm
    • Weight: 452 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 10% to 90%, non-condensing
    • 5 x RJ45 10/100/1000 Mbps ports
    • 1 x USB Type-A port
    • 1 x 4-pin power connector
    • 4 x SMA connector for cellular antennas
    • 3 x RP-SMA connector for WiFi antennas
    • 1 x SMA connector for GNSS antenna
    • 1 x grounding screw
    • WAN, cellular connection, signal strength, Ethernet, WiFi and power status LEDs
    • Reset button
    • DIN rail, wall or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika RUTC50 router
  • 24 W power supply
  • 4 x SMA 5G antenna
  • 3 x dual-band WiFi antenna
  • GNSS SMA antenna with adhesive mounting
  • 1.5 m Ethernet cable
  • SIM adapter kit
  • Quick Start Guide
1208037

Data sheet

Cellular Network Standard
5G SA/NSA / 4G LTE Cat 19/18 / 3G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n/ac/ax
WiFi Band
2,4 GHz / 5 GHz
Number of Ethernet Ports
5
Number of SIM Cards
2
eSIM
Yes
GNSS
Yes
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
Yes
Power supply voltage
9 - 50 V DC
Tightness class
IP30
