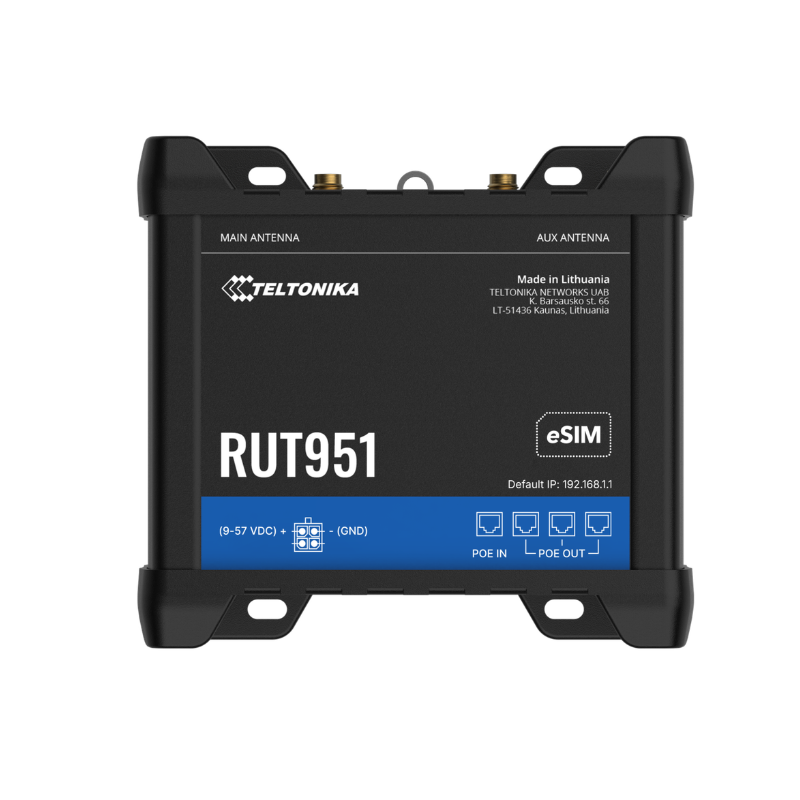

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208022
4779051843718
zł1,182.58
Tax included

zł961.45 tax excl.

Industrial 4G LTE Cat 4 cellular router for IoT, automation and monitoring systems; download speeds up to 150 Mbps and upload speeds up to 50 Mbps; Dual SIM; WiFi 4; 1 WAN and 3 LAN 10/100 Mbps ports; IEEE 802.3af/at PoE+; PoE IN on LAN1; PoE OUT on LAN2, LAN3 and WAN; up to 30 W per port and 90 W total PoE power budget; digital input and output; Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet/IP and MQTT; VPN; RutOS; Teltonika RMS; operating temperature from -40°C to 75°C; version with power supply. Teltonika RUT951 PoE+

24h
Available
Available quantity: 1

Description

Industrial cellular router designed to provide LTE, Ethernet and WiFi connectivity in IoT systems, automation, monitoring and distributed network installations. Teltonika RUT951 PoE+ supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as 3G and 2G networks. Two Mini SIM slots enable automatic SIM switching in cases such as weak signal, network loss, roaming, data connection failure or exceeded data limits. The router provides WiFi 4 802.11b/g/n with support for up to 100 simultaneous connections, one WAN port and three 10/100 Mbps LAN ports, automatic WAN Failover and load balancing.

IEEE 802.3af/at compliant PoE and PoE+ support allows the router to be powered through the LAN1 port and to supply power to network devices through LAN2, LAN3 and WAN. PoE outputs provide up to 30 W per port and a total power budget of up to 90 W, allowing devices such as IP cameras, access points and other compatible network equipment to be powered without separate power cables. RutOS based on OpenWrt provides routing, firewall, VLAN, VPN and support for Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet/IP and MQTT, while Teltonika RMS enables remote device management and monitoring. The aluminium enclosure, operating temperature range from -40°C to 75°C and IP30 protection rating support use in industrial installations, surveillance systems, telemetry and IoT infrastructure. Supplied with a power supply.

Features

  • Cellular connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 10/11 depending on hardware version
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Multiple PDN
    • Band management and band lock
    • SIM PIN code management
    • Auto APN
    • Bridge and Passthrough modes
    • 2 x SMA connector for LTE antennas
  • Dual SIM
    • 2 x Mini SIM slot (2FF)
    • SIM voltage: 1.8 V / 3 V
    • External SIM holders
    • Automatic SIM switching
    • SIM Idle Protection
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure
  • WiFi
    • Standard: IEEE 802.11b/g/n
    • Class: WiFi 4
    • Operating modes: Access Point (AP), Station (STA)
    • Maximum simultaneous connections: 100
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11s Wireless Mesh
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • Relayd
    • SSID hiding
    • MAC address-based access control
    • MAC allowlist and blocklist
    • WiFi connection QR code generator
    • TravelMate
    • 2 x RP-SMA connector for WiFi antennas
  • Ethernet
    • 1 x WAN RJ45 10/100 Mbps port
    • 3 x LAN RJ45 10/100 Mbps ports
    • Total: 4 x 10/100 Mbps Ethernet ports
    • IEEE 802.3 and IEEE 802.3u compliant
    • WAN port compliant with IEEE 802.3az
    • Auto MDI/MDIX
    • Port Mirroring
  • PoE
    • PoE IN: LAN1 port
    • PoE IN standard: IEEE 802.3af PoE / IEEE 802.3at PoE+
    • PoE IN: Alternative B
    • PoE OUT: LAN2, LAN3 and WAN ports
    • PoE OUT standard: IEEE 802.3af PoE / IEEE 802.3at PoE+
    • PoE OUT: Alternative A
    • Maximum PoE OUT power per port: 30 W
    • Maximum total PoE power budget: 90 W
    • PoE input voltage range: 44-57 V DC
    • When powered through 802.3at PoE+: up to 15 W total PoE output, 1 x IEEE 802.3af port
    • When powered through 802.3af PoE: PoE OUT unavailable
    • When powered through the DC connector below 44 V: PoE OUT unavailable
    • When powered through the DC connector above 44 V with at least 100 W available: full PoE+ operation up to 90 W
  • Inputs and outputs
    • 1 x digital input
    • 1 x digital output
    • Input and output available on the 4-pin power connector
    • Event support via Email, RMS and SMS
    • I/O Juggler
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • DNP3: Station, Outstation
    • DNP3 over TCP
    • DLMS/COSEM: Client
    • DLMS/COSEM over TCP
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Custom Lua scripting support in Data to Server
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, mobile, VRRP, wired
    • Automatic WAN Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • SSHFS
    • Real-time traffic monitoring
    • Port Mirroring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port- and tag-based VLAN
    • DDoS attack prevention
    • Port scan prevention
    • Mobile data quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Authentication using pre-shared keys and X.509 certificates
    • TACACS+
    • RADIUS
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: RutOS based on OpenWrt
    • WEB UI over HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • Processor: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash memory: 16 MB SPI Flash
  • Power supply
    • Power connector: industrial 4-pin DC connector
    • Router input voltage range: 9-57 VDC
    • PoE input voltage range: 44-57 V DC
    • Reverse polarity protection
    • Surge protection
    • Idle power consumption: below 5 W
    • Maximum router power consumption: below 6.5 W
    • Maximum power consumption with PoE: 100 W
    • Power supply included
  • Mechanical and environmental parameters
    • Housing: aluminium with plastic panels
    • Dimensions: 110 x 50 x 100 mm
    • Weight: 287 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional mounting kit
    • 1 x bi-colour connection status LED
    • 5 x mobile signal strength LED
    • 4 x Ethernet status LED
    • 1 x power LED
    • Reset button

Kit includes

  • Teltonika RUT951 PoE+ router
  • Power supply
  • 2 x LTE antenna
  • 2 x WiFi antenna
  • 1.5 m Ethernet cable
  • SIM adapter kit
  • Quick Start Guide
1208022

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n
WiFi Band
2,4 GHz
Number of Ethernet Ports
4
Number of SIM Cards
2
eSIM
No
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
Yes
Power supply voltage
9 - 57 V DC
Tightness class
IP30
