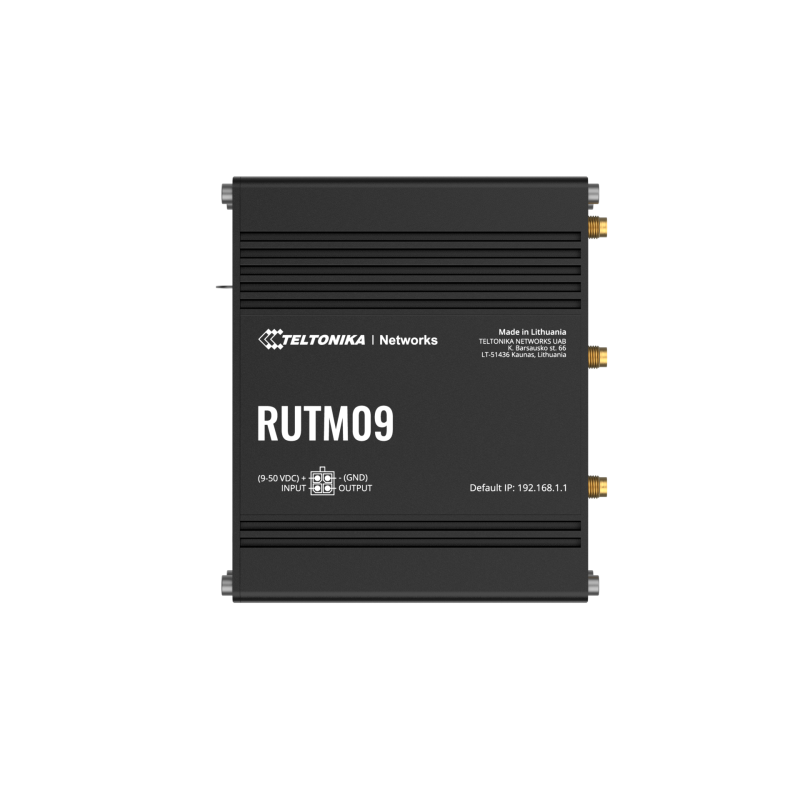

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208040
4779051840472
zł1,265.36
Tax included

zł1,028.75 tax excl.

Industrial cellular router for IoT, M2M, automation and mobile installations; 4G LTE Cat 6 up to 300 Mbps download and 50 Mbps upload; 3G up to 42/5.76 Mbps; Dual SIM with automatic switching; Carrier Aggregation; 1 WAN port and 3 Gigabit Ethernet LAN ports; support for up to 128 port- and tag-based VLANs; GNSS with GPS, GLONASS, BeiDou, Galileo and QZSS; USB 2.0; digital input and output; Modbus TCP/USB, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; VPN; passive PoE 9-50 VDC; RutOS; Teltonika RMS; operating temperature from -40°C to 75°C. Teltonika RUTM09

24h
Available
Available quantity: 1

Description

Industrial cellular router designed to provide high-speed LTE and Ethernet connectivity in IoT, M2M, automation, telemetry and mobile installations. Teltonika RUTM09 supports 4G LTE Cat 6 with download speeds up to 300 Mbps and upload speeds up to 50 Mbps, as well as 3G connectivity up to 42 Mbps / 5.76 Mbps. Two Mini SIM slots enable automatic SIM switching in cases such as weak signal, roaming, network loss, data limit or connection failure. Carrier Aggregation improves utilization of available LTE bands, while four Gigabit Ethernet ports include one WAN and three LAN ports. The router also supports up to 128 port- and tag-based VLANs, together with Failover and Load Balancing functions.

The GNSS receiver supports GPS, GLONASS, BeiDou, Galileo and QZSS, enabling location tracking and time synchronization in mobile installations. A USB 2.0 port supports storage devices, additional modems, printers and USB-to-Serial adapters, while the digital input and open-collector output enable integration with external equipment. RutOS provides routing, firewall, VLAN, VPN and support for Modbus TCP/USB, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT, while Teltonika RMS enables remote configuration and monitoring. A 9-50 VDC input range, passive PoE through LAN1, an anodised aluminium enclosure and an operating temperature range from -40°C to 75°C support use in transportation, industrial automation, telemetry, monitoring and systems requiring location services and continuous cellular connectivity.

Features

  • Cellular connectivity
    • Standards: 4G LTE Cat 6, 3G
    • 4G LTE speed: up to 300 Mbps download / 50 Mbps upload
    • 3G speed: up to 42 Mbps download / 5.76 Mbps upload
    • 3GPP: Release 12
    • Carrier Aggregation
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Multiple PDN
    • Band management and band lock
    • SIM Idle Protection
    • SIM PIN code management
    • Auto APN
    • Bridge and Passthrough modes
    • 2 x SMA connector for cellular antennas
  • Dual SIM
    • 2 x Mini SIM slot (2FF)
    • SIM voltage: 1.8 V / 3 V
    • External SIM holders
    • Automatic SIM switching
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure
    • SIM Idle Protection
  • Ethernet
    • 1 x WAN RJ45 port 10/100/1000 Mbps
    • 3 x LAN RJ45 ports 10/100/1000 Mbps
    • Total: 4 x Gigabit Ethernet ports
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3az compliant
    • Auto MDI/MDIX
    • Support for up to 128 port- and tag-based VLANs
  • GNSS
    • Supported systems: GPS, GLONASS, BeiDou, Galileo, QZSS
    • Coordinate access via WEB UI, SMS, TAVL and RMS
    • NMEA 0183 support
    • Geofencing
    • TAVL and RMS support
    • 1 x SMA connector for GNSS antenna
  • USB
    • 1 x USB Type-A port
    • Standard: USB 2.0
    • Samba Share
    • USB-to-Serial
    • External HDD support
    • Flash drive support
    • Additional modem support
    • Printer support
    • USB-to-Serial adapter support
    • Supported file systems: FAT, FAT32, exFAT, NTFS read-only, ext2, ext3, ext4
  • Inputs and outputs
    • 1 x digital input
    • Input logic low: 0-6 V
    • Input logic high: 8-50 V
    • 1 x open-collector digital output
    • Maximum output parameters: 50 V / 300 mA
    • Input and output on the 4-pin power connector
    • Event support via Email, RMS and SMS
    • I/O Juggler
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • Modbus via USB
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • BACnet RTU via USB
    • DNP3: Station, Outstation
    • DNP3 via TCP and USB
    • DLMS/COSEM: Client
    • DLMS/COSEM via TCP and USB
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Lua scripting support in Data to Server
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: mobile, VRRP, wired
    • Automatic Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • SSHFS
    • VRF
    • Real-time traffic monitoring
  • Security
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port- and tag-based VLAN
    • 802.1X Client
    • DDoS attack prevention
    • Port scan prevention
    • Mobile data quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Authentication using pre-shared keys and X.509 certificates
    • TACACS+
    • RADIUS
    • Certificate Manager
  • VPN
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • Tailscale
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • Email notifications
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • Processor: MediaTek Dual-Core 880 MHz MIPS1004Kc
    • RAM: 256 MB DDR3
    • Flash memory: 16 MB Serial NOR Flash
    • NAND Flash: 256 MB Serial NAND Flash
  • Power supply
    • Power connector: industrial 4-pin DC
    • Input voltage: 9-50 VDC
    • Reverse polarity protection
    • Surge protection
    • Passive PoE through LAN1
    • Passive PoE: Mode B, 9-50 VDC
    • Passive PoE not compliant with IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt
    • Idle power consumption: below 2.65 W
    • Maximum power consumption: below 9.82 W
  • Mechanical and environmental specifications
    • Enclosure: anodised aluminium
    • Dimensions: 115 x 44.2 x 95.1 mm
    • Weight: 457 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 10% to 90%, non-condensing
    • 4 x RJ45 10/100/1000 Mbps ports
    • 1 x USB Type-A port
    • 1 x 4-pin power connector
    • 2 x SMA connector for cellular antennas
    • 1 x SMA connector for GNSS antenna
    • 3 x WAN type LED
    • 3 x mobile connection type LED
    • 5 x mobile signal strength LED
    • 8 x LAN status LED
    • 1 x power LED
    • 1 x grounding screw
    • Reset button
    • DIN rail, wall or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika RUTM09 router
  • 18 W power supply
  • 2 x SMA cellular antenna
  • GNSS SMA antenna with adhesive mounting
  • 1.5 m Ethernet cable
  • SIM adapter kit
  • Quick Start Guide
1208040

Data sheet

Cellular Network Standard
4G LTE Cat 6 / 3G
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
4
Number of SIM Cards
2
eSIM
No
GNSS
Yes
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
No
Power supply voltage
9 - 50 V DC
Tightness class
IP30
