Compact industrial cellular router for maintaining continuous connectivity in automation systems, industrial installations and remote monitoring; 4G LTE Cat 4 up to 150 Mbps; 3G and 2G; Dual SIM with automatic switching; 1 x 10/100 Mbps WAN port; 1 x 10/100 Mbps LAN port; WiFi 4 802.11b/g/n; up to 50 simultaneous WiFi connections; Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; passive PoE 9-30 VDC; aluminium housing; RutOS operating system; Teltonika RMS support. Teltonika RUT202

24h
Available
Available quantity: 2

Description

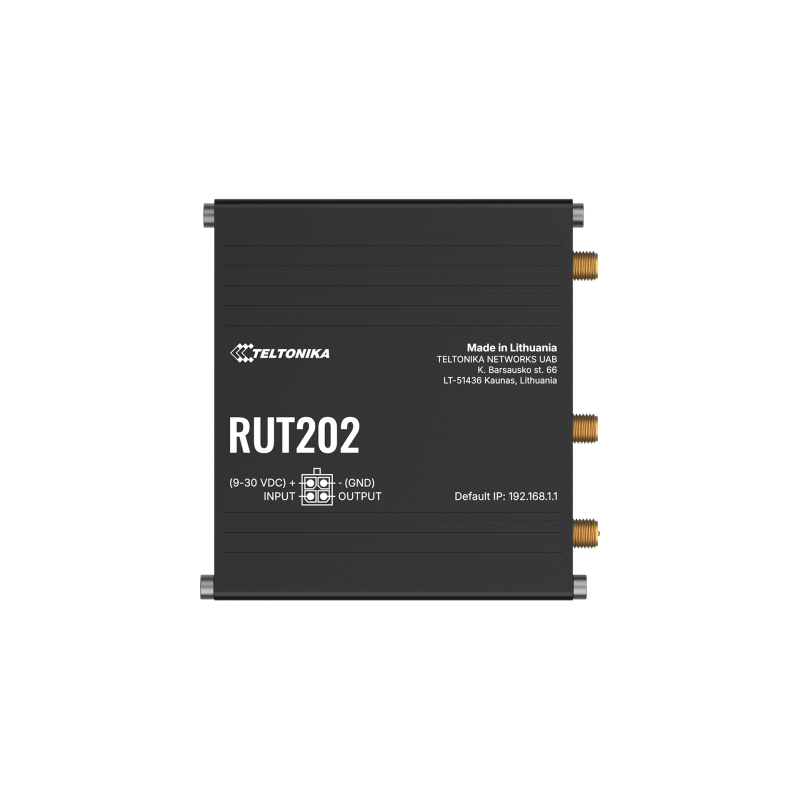

Compact industrial cellular router designed to provide stable and redundant connectivity in automation systems, industrial installations and IoT solutions. Teltonika RUT202 supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as 3G and 2G networks. Two internal Mini SIM slots support automatic switching between SIM cards in cases including weak signal, data or SMS limits, roaming, no network or data connection failure. The router also features one 10/100 Mbps WAN port, one 10/100 Mbps LAN port and a WiFi 4 802.11b/g/n module operating in Access Point or Station mode with support for up to 50 simultaneous connections.

The OpenWrt-based RutOS operating system provides routing, load balancing, firewall, VLAN, VPN, Hotspot 2.0 and support for Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT. The router provides one digital input and one open-collector digital output, enabling integration with simple automation signals. Teltonika RMS supports remote configuration, diagnostics, VPN access and device management. The aluminium housing measuring 83 x 25 x 83 mm, 9-30 VDC power input, passive PoE support and operating temperature range from -40°C to 75°C allow the RUT202 to be used in telemetry systems, industrial automation, monitoring, IoT infrastructure and other installations requiring a compact router with redundant cellular connectivity.

Features

  • Mobile connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 9
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Band management and band lock
    • SIM PIN code management
    • Auto APN
    • Bridge and Passthrough modes
  • Dual SIM
    • SIM slots: 2 x Mini SIM (2FF)
    • Internal SIM holders
    • SIM voltage: 1.8 V / 3 V
    • Automatic SIM switching
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denial, data connection failure
  • WiFi
    • Standard: IEEE 802.11b/g/n
    • Class: WiFi 4
    • Operating modes: Access Point (AP), Station (STA)
    • Maximum number of simultaneous clients: 50
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • Relayd
    • SSID hiding
    • MAC address-based access control
    • MAC allowlist and blocklist
    • QR code generator for WiFi connection
    • TravelMate
    • Antenna connector: 1 x RP-SMA for WiFi
  • Ethernet
    • 1 x RJ45 WAN port, 10/100 Mbps
    • 1 x RJ45 LAN port, 10/100 Mbps
    • IEEE 802.3 and IEEE 802.3u compliance
    • WAN port also compliant with IEEE 802.3az
    • Auto MDI/MDIX
  • Inputs and outputs
    • 1 x digital input
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-30 V
    • 1 x open-collector digital output
    • Maximum output parameters: 30 V / 300 mA
    • Event support via Email, RMS and SMS
    • I/O Juggler for triggering events based on I/O state
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • DNP3: Station, Outstation over TCP
    • DLMS/COSEM: Client over TCP
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, mobile, VRRP, wired connection
    • Automatic WAN Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • Hotspot 2.0
    • SSHFS
    • Real-time network traffic monitoring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port-based and tag-based VLAN
    • DDoS attack prevention
    • Port scan prevention
    • Mobile quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Pre-shared key and X.509 certificate authentication
    • TACACS+
    • RADIUS
    • 802.1X
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
    • OpenConnect
    • EoIP
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • CPU: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash storage: 32 MB SPI Flash
  • Power supply
    • Input voltage: 9-30 VDC
    • Power connector: industrial 4-pin connector
    • Reverse polarity protection
    • Surge protection
    • Passive PoE over spare pairs on the LAN1 port
    • Passive PoE: Mode B, 9-30 VDC
    • Passive PoE not compliant with IEEE 802.3af, 802.3at and 802.3bt
    • Maximum power consumption: < 6.5 W
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 83 x 25 x 83 mm
    • Weight: 130 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional kit
    • 3 x connection type status LED
    • 3 x connection strength LED
    • 2 x LAN status LED
    • 1 x power LED
    • Reset button

Kit includes

  • Teltonika RUT202 router
  • Power supply
  • 2 x LTE antenna
  • WiFi antenna
  • Quick Start Guide
1207991

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n
WiFi Band
2,4 GHz
Number of Ethernet Ports
2
Number of SIM Cards
2
eSIM
No
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
No
Power supply voltage
9 - 30 V DC
Tightness class
IP30
