ID: 1208015
4779051840823
zł639.02
Tax included

zł519.53 tax excl.

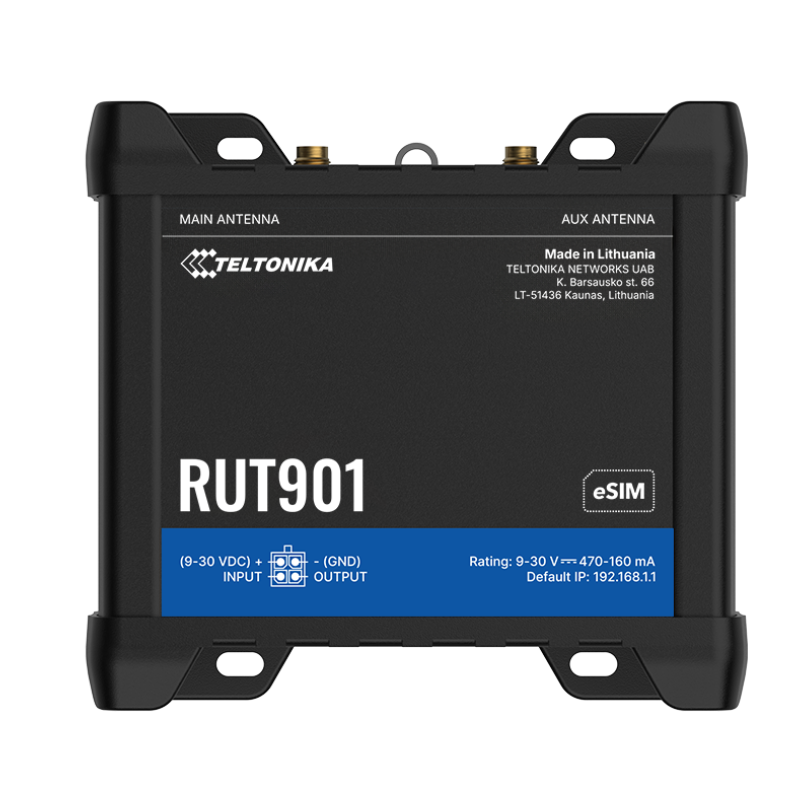

Industrial cellular router for providing primary and backup network connectivity in IoT, M2M and automation systems; 4G LTE Cat 4 up to 150 Mbps; 3G and 2G; Dual SIM with automatic switching; WiFi 4 802.11b/g/n; up to 100 simultaneous WiFi clients; 1 x WAN and 3 x LAN 10/100 Mbps ports; automatic WAN Failover; digital input and output; Modbus TCP, DNP3, DLMS/COSEM, BACnet and MQTT; passive PoE 9-30 VDC; RutOS operating system; Teltonika RMS support. Teltonika RUT901 (RUT901000000)

24h
Available
Available quantity: 5

Description

Industrial cellular router designed to provide continuous connectivity in IoT, M2M, automation and distributed network installations. Teltonika RUT901 supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as 3G and 2G networks. Two Mini SIM slots enable automatic SIM switching in cases including weak signal, data or SMS limits, roaming, no network or data connection failure. The WiFi 4 802.11b/g/n module can operate in Access Point or Station mode and supports up to 100 simultaneous clients. The router also provides four 10/100 Mbps Ethernet ports – one WAN and three LAN – enabling several wired devices to be connected directly.

The OpenWrt-based RutOS operating system provides routing, load balancing, automatic WAN Failover, firewall, VLAN, VPN and hotspot functions, as well as support for Modbus TCP, DNP3, DLMS/COSEM, BACnet and MQTT. One digital input and one open-collector digital output enable integration with simple automation signals, while Port Mirroring allows Ethernet traffic to be copied for monitoring and analysis. Teltonika RMS provides remote configuration, monitoring, firmware updates and VPN access. 9-30 VDC power input and passive PoE 9-30 VDC, an aluminium housing and an operating temperature range from -40°C to 75°C support deployment in industrial automation, telemetry, energy systems, monitoring, retail, transportation and other installations requiring redundant cellular connectivity.

Features

  • Cellular connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • LTE-FDD: B1, B3, B5, B7, B8, B20, B28
    • LTE-TDD: B38, B40, B41
    • 3G: B1, B5, B8
    • 2G: B3, B8
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 9
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Band management and band lock
    • SIM PIN management
    • Auto APN
    • Bridge and Passthrough modes
    • 2 x SMA connector for LTE antennas
  • Dual SIM
    • SIM slots: 2 x Mini SIM (2FF)
    • SIM voltage: 1.8 V / 3 V
    • External SIM holders
    • Automatic SIM switching
    • SIM Idle Protection
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denial, data connection failure
  • WiFi
    • Standard: IEEE 802.11b/g/n
    • Class: WiFi 4
    • Operating modes: Access Point (AP), Station (STA)
    • Maximum number of simultaneous clients: 100
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11s Wireless Mesh
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • Relayd
    • SSID hiding
    • MAC address-based access control
    • MAC allowlist and blocklist
    • QR code generator for WiFi connection
    • TravelMate
    • 2 x RP-SMA connector for WiFi antennas
  • Ethernet
    • 1 x RJ45 WAN port, 10/100 Mbps
    • 3 x RJ45 LAN ports, 10/100 Mbps
    • Total: 4 x Ethernet ports, 10/100 Mbps
    • IEEE 802.3 and IEEE 802.3u compliance
    • WAN port also compliant with IEEE 802.3az
    • Auto MDI/MDIX
    • Port Mirroring
  • Inputs and outputs
    • 1 x digital input
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-30 V
    • 1 x open-collector digital output
    • Maximum output parameters: 30 V / 300 mA
    • Event support via Email, RMS and SMS
    • I/O Juggler for triggering events based on I/O state
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • DNP3: Station, Outstation over TCP
    • DLMS/COSEM: Client over TCP
    • BACnet/IP: Router
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, cellular, VRRP, wired connection
    • Automatic WAN Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • Real-time network traffic monitoring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port-based and tag-based VLAN
    • DDoS attack prevention
    • Port scan prevention
    • Mobile data quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Pre-shared key and X.509 certificate authentication
    • TACACS+
    • RADIUS
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • CPU: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash storage: 16 MB SPI Flash
  • Power supply
    • Input voltage: 9-30 VDC
    • Power connector: industrial 4-pin connector
    • Reverse polarity protection
    • Surge protection
    • Passive PoE over spare pairs on the LAN1 port
    • Passive PoE: Mode B, 9-30 VDC
    • Passive PoE not compliant with IEEE 802.3af, 802.3at and 802.3bt
    • Idle power consumption: < 2 W
    • Maximum power consumption: < 7 W
  • Mechanical and environmental specifications
    • Housing: aluminium with plastic panels
    • Dimensions: 110 x 50 x 100 mm
    • Weight: 297 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional kit
    • 1 x bi-colour connection status LED
    • 5 x cellular signal strength LED
    • 4 x Ethernet status LED
    • 1 x power LED
    • Reset button

Kit includes

  • Teltonika RUT901 router
  • 9 W power supply
  • 2 x LTE antenna with SMA connector
  • 2 x WiFi antenna
  • 1.5 m Ethernet cable
  • SIM adapter kit
  • Quick Start Guide
1208015

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n
WiFi Band
2,4 GHz
Number of Ethernet Ports
4
Number of SIM Cards
2
eSIM
No
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
