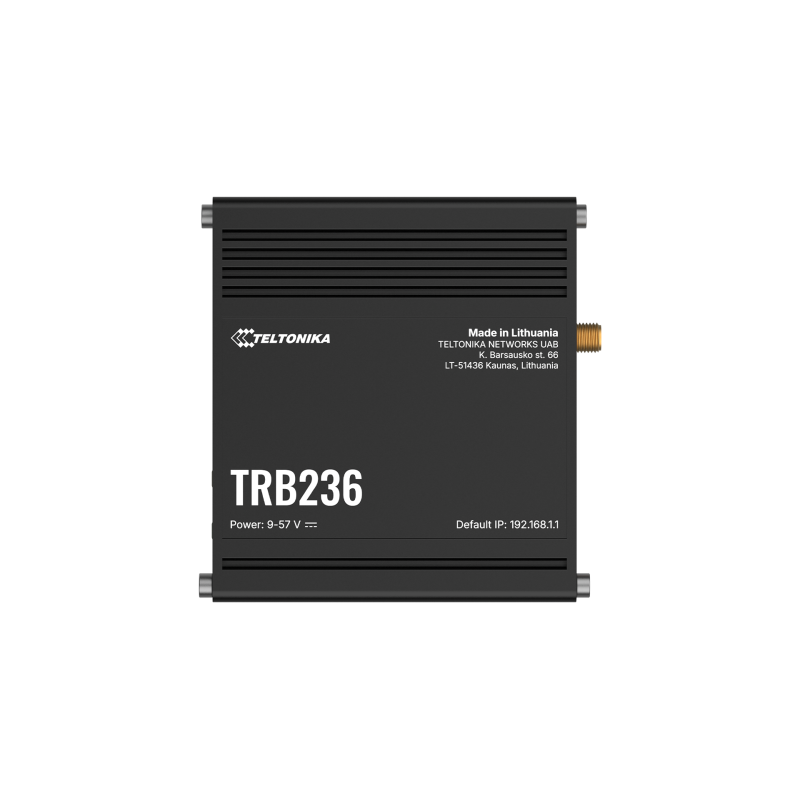

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208081
zł728.93
Tax included

zł592.63 tax excl.

Industrial IoT gateway for communication over LTE 450 networks and integration of automation and technical infrastructure equipment with IP networks; 4G LTE Cat 4 up to 150 Mbps download and 50 Mbps upload; 450 MHz band; 3G support; Dual SIM; 1 x Ethernet 10/100 Mbps; RS232; RS485; 3 x configurable digital I/O; 1 x analog input 0-30 V; Modbus TCP/RTU; BACnet; OPC UA; MQTT; DNP3; DLMS/COSEM; VPN; 9-57 VDC power supply; aluminium housing; IP30; operating temperature from -40°C to 75°C. Teltonika TRB236 Cat4 LTE450

24h
Available
Available quantity: 1

Description

Industrial IoT gateway designed for cellular communication over the LTE 450 band and data exchange between automation equipment, meters, controllers, and remote monitoring systems. Teltonika TRB236 Cat4 LTE450 supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as 3G with download speeds up to 21 Mbps and upload speeds up to 5.76 Mbps. Communication over the 450 MHz band supports distributed utility, energy, telemetry, and infrastructure installations. Two Mini SIM slots enable connection redundancy scenarios, while 10/100 Mbps Ethernet, RS232, and RS485 provide connectivity for both IP-based and serial industrial equipment. Supported industrial and IoT protocols include Modbus TCP/RTU, BACnet, OPC UA, MQTT, DNP3, and DLMS/COSEM.

Network functions include static and dynamic routing, VLAN, failover, QoS, firewall, and VPN technologies including OpenVPN, IPsec, WireGuard, ZeroTier, and DMVPN. Three configurable digital I/O channels and an 0-30 V analog input provide signal monitoring and external device control capabilities. OpenWrt-based RutOS supports management through WebUI, SSH, SNMP, FOTA, and Teltonika RMS. The 9-57 VDC input range, aluminium housing, IP30 protection rating, and operating temperature from -40°C to 75°C allow the TRB236 to operate in energy systems, telemetry, utility infrastructure, and industrial remote monitoring and control installations.

Features

  • Cellular connectivity
    • 4G LTE Cat 4: up to 150 Mbps download / 50 Mbps upload
    • 3G: up to 21 Mbps download / 5.76 Mbps upload
    • LTE communication in the 450 MHz band
    • 3GPP: Release 9
    • 1 x SMA connector for cellular antenna
    • Band Lock
    • Auto APN
    • Multiple PDN
    • Bridge
    • Passthrough
    • SMS and USSD
  • SIM card
    • 2 x Mini SIM (2FF) slots
    • Dual SIM
    • SIM voltage: 1.8 V / 3 V
    • Automatic SIM switching
    • SIM Idle Protection
    • SIM PIN management
  • Ethernet
    • 1 x RJ45 10/100 Mbps port
    • IEEE 802.3, IEEE 802.3u, and IEEE 802.3az standards
    • Auto MDI/MDIX
  • Serial interfaces
    • RS232: TX, RX, RTS, CTS
    • RS485: D+, D-, R+, R-
    • 2-wire or 4-wire RS485 interface
    • Console
    • Serial over IP
    • Modem
    • Modbus Gateway
    • NTRIP Client
  • Routing and network functions
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • IPv4 and IPv6
    • DHCP Server, DHCP Client, and DHCP Relay
    • VRRP
    • VLAN
    • QoS / Smart Queue Management
    • Automatic failover
    • DNS over HTTPS
    • Wake On LAN
    • VXLAN
    • DDNS
    • Hotspot
  • VPN and tunnelling
    • OpenVPN
    • IPsec
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • Stunnel
    • DMVPN
    • SSTP
    • ZeroTier
    • WireGuard
    • Tinc
  • Industrial and IoT protocols
    • BACnet/IP
    • BACnet over RS485
    • OPC UA Client and Server
    • Modbus TCP Client and Server
    • Modbus RTU over RS232 and RS485
    • Modbus MQTT Gateway
    • MQTT
    • DNP3 Station and Outstation
    • DNP3 over RS232, RS485, and TCP
    • DLMS/COSEM Client
    • DLMS/COSEM over RS232, RS485, and TCP
    • Data to Server via HTTP(S), MQTT, and Azure MQTT
  • Management and monitoring
    • WebUI via HTTP/HTTPS
    • SSH v1 and v2
    • SNMP v1, v2, and v3
    • TR-069
    • JSON-RPC
    • FOTA
    • Teltonika RMS
    • Teltonika Networks Web API
    • MQTT Broker
    • MQTT Publisher
    • SMS management
  • IoT platforms
    • ThingWorx
    • Cumulocity Cloud of Things
    • Azure IoT Hub
    • AWS IoT Core
  • Security
    • Firewall
    • NAT, NAT-T, and NAT64
    • DDoS attack prevention
    • Port scan prevention
    • RADIUS
    • TACACS+
    • X.509 certificates
    • Certificate Manager
    • Mobile data quota control
    • Web filtering
    • IP and login attempt blocking
  • System
    • Operating system: OpenWrt-based RutOS
    • CPU: MediaTek 580 MHz MIPS 24KEc
    • RAM: 128 MB
    • Flash memory: 16 MB
    • BusyBox Shell
    • Lua
    • C
    • C++
    • Package Manager
    • SDK
  • Inputs and outputs
    • 3 x configurable digital inputs
    • 3 x configurable digital outputs
    • 1 x analog input, 0-30 V
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-30 V
    • Open Collector outputs
    • Maximum output voltage: 30 V
    • Maximum output current: 300 mA
    • Events via email, RMS, and SMS
    • I/O Juggler
  • Power
    • Power input via 16-pin industrial terminal block
    • Input voltage: 9-57 VDC
    • Idle power consumption: < 2 W
    • Maximum power consumption: < 5 W
    • Overvoltage protection
    • Reverse polarity protection
    • Surge protection
  • Interfaces and indicators
    • 1 x RJ45 10/100 Mbps port
    • 1 x SMA connector for cellular antenna
    • 2 x Mini SIM slots
    • RS232 via 16-pin terminal block
    • RS485 via 16-pin terminal block
    • I/O via 16-pin terminal block
    • 2 x connection status LEDs
    • 3 x signal strength LEDs
    • 1 x Ethernet port status LED
    • 1 x power LED
    • Reset button
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 83 x 25 x 79.8 mm
    • Weight: 175 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall, or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika TRB236 Cat4 LTE450 IoT gateway
  • 1.5 m Ethernet cable
  • 2x8-pin connector
  • SIM adapter kit
  • Hex key
  • Quick Start Guide
1208081

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
1
Number of SIM Cards
2
eSIM
No
GNSS
No
PoE
No
VPN
Yes
Bluetooth module
No
RS232
1
RS485
1
DIN Rail Mounting
No
Power supply voltage
9 - 57 V DC
Tightness class
IP30
