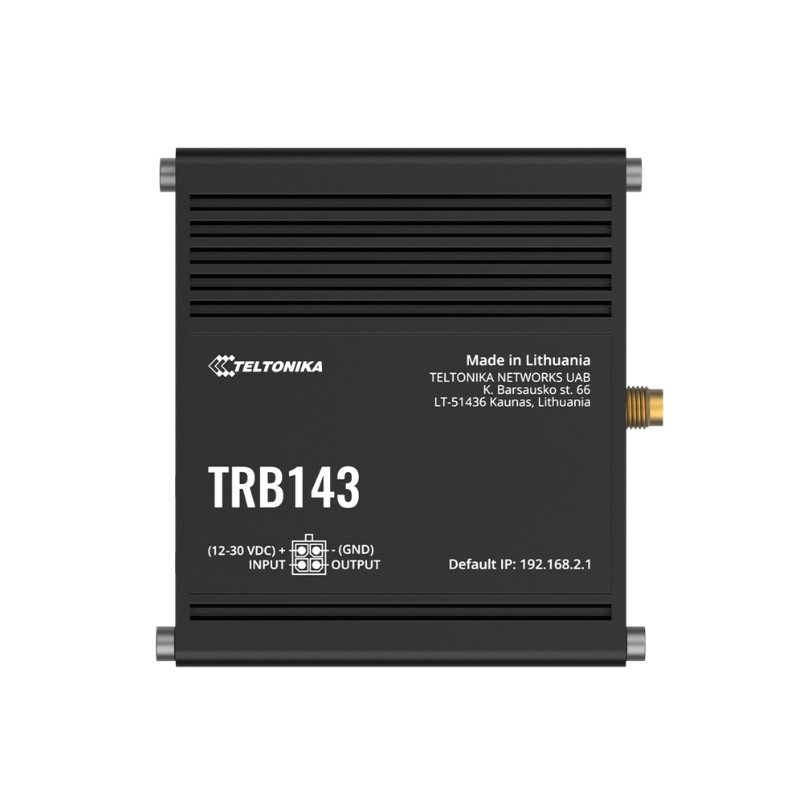

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208077
4779051840137
zł922.40
Tax included

zł749.92 tax excl.

Industrial network gateway for telemetry and utility monitoring; 4G LTE Cat 4 with speeds up to 150Mbps; M-Bus interface for up to 250 devices; power supply for up to 6 M-Bus devices; Gigabit Ethernet; digital input and output; support for Modbus TCP, DNP3, OPC UA and MQTT; 12-30VDC power supply; RutOS operating system. Teltonika TRB143

24h
Available
Available quantity: 2

Description

Industrial network gateway Teltonika TRB143 designed for telemetry, remote meter reading and monitoring of installations using the M-Bus standard. The integrated M-Bus interface supports up to 250 client devices and can power up to 6 devices, while M-Bus over IP enables remote communication with meters over an IP network. Connectivity is provided by 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, support for 3G and 2G networks, and a Gigabit Ethernet 10/100/1000 Mbps port.

The RutOS operating system based on OpenWrt supports industrial and IoT protocols, including Modbus TCP, DNP3, OPC UA, BACnet, MQTT and DLMS/COSEM, as well as VPN, firewall and remote management via Teltonika RMS. A digital input and open collector output allow integration with additional installation components. The aluminum housing, operating temperature range from -40°C to 75°C and DIN rail mounting option make the TRB143 suitable for energy, water and heat metering systems, telemetry installations, building and industrial automation, and remote infrastructure monitoring.

Features

  • Mobile connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 11
    • SIM slot: 1 x Mini SIM (2FF)
    • Antenna connector: 1 x SMA for LTE
    • SMS and USSD support
    • Automatic APN configuration
    • Band lock and band management
  • M-Bus and interfaces
    • Interface: 1 x M-Bus
    • Support for up to 250 M-Bus devices
    • Ability to power up to 6 M-Bus devices
    • M-Bus over IP support
    • Connected M-Bus device scanning
    • Primary/Secondary address configuration
    • Data filtering
    • Ethernet: 1 x RJ45 10/100/1000 Mbps
    • Ethernet standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3az
    • Auto MDI/MDIX
    • Digital input: 1 x
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-30 V
    • Digital output: 1 x, open collector
    • Maximum output parameters: 30 V / 300 mA
    • Reset button
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • DNP3: Station, Outstation
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • DLMS/COSEM: Client
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and security
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • DDoS and port scan protection
    • VLAN
    • DNS over HTTPS
    • QoS / Smart Queue Management
    • OpenVPN
    • IPsec
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP
    • SSTP
    • DMVPN
    • Tinc
  • Management and software
    • Operating system: RutOS based on OpenWrt
    • WEB UI
    • SSH
    • FOTA
    • SNMP
    • JSON-RPC
    • TR-069
    • MQTT Broker and MQTT Publisher
    • Teltonika Remote Management System (RMS)
    • Azure IoT Hub support
    • AWS IoT Core support
    • ThingWorx support
    • Cumulocity support
  • Hardware
    • Processor: ARM Cortex-A7 1.3 GHz
    • RAM: 256 MB DDR3
    • Flash memory: 512 MB SPI Flash
  • Power supply
    • Input voltage: 12-30 VDC
    • Power connector: industrial 4-pin connector
    • Passive PoE via LAN port: 12-30 VDC, Mode B
    • Passive PoE not compliant with IEEE 802.3af, 802.3at and 802.3bt
    • Idle power consumption: 3 W
    • Maximum power consumption: 6 W
  • Mechanical and environmental specifications
    • Housing: anodized aluminum
    • Dimensions: 74.5 x 25 x 73 mm
    • Weight: 145 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat surface mounting with an additional mounting kit

Kit includes

  • Teltonika TRB143 gateway
  • LTE antenna with SMA connector
  • 18 W power supply
  • 1.5 m Ethernet cable
  • Hex key
  • Quick Start Guide
1208077

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
1
Number of SIM Cards
1
eSIM
No
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
Yes
Power supply voltage
12 - 30 V DC
Tightness class
IP30
