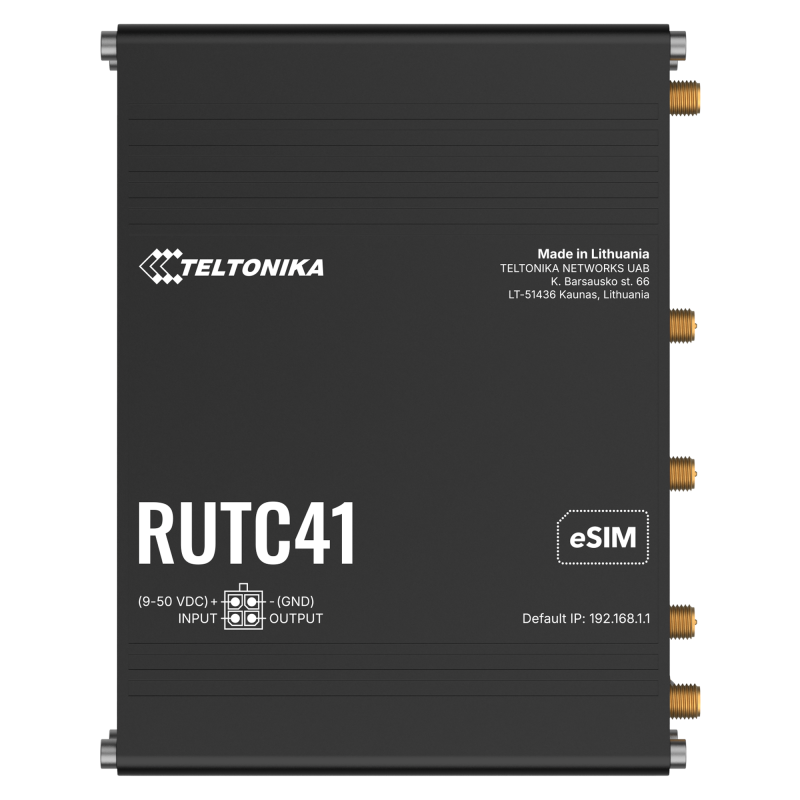

Industrial edge router for IoT systems, automation, telemetry and local data processing; 4G LTE Cat 4 up to 150 Mbps download and 50 Mbps upload; 3G up to 21/5.76 Mbps; 2G; Dual SIM and eSIM; WiFi 6 Dual Band with MU-MIMO up to 2402 Mbps at 5 GHz and 576 Mbps at 2.4 GHz; up to 500 simultaneous WiFi clients; 1 WAN and 4 LAN Gigabit Ethernet ports; Docker support; dual-core 1.3 GHz ARM Cortex-A53 processor; 1 GB RAM; 8 GB eMMC; USB 2.0; digital input and output; Modbus TCP/USB, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; passive PoE 9-50 VDC; RutOS; Teltonika RMS; operating temperature from -40°C to 75°C. Teltonika RUTC41

24h
Available
Available quantity: 1

Description

Industrial edge router designed to provide 4G LTE, Ethernet and WiFi connectivity combined with local data processing in IoT systems, automation and distributed industrial installations. Teltonika RUTC41 supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, along with 3G and 2G networks. Two Mini SIM slots and eSIM support provide automatic connection switching based on conditions such as weak signal, roaming, network loss or data connection failure. The router provides dual-band WiFi 6 802.11b/g/n/ac/ax with MU-MIMO, speeds up to 2402 Mbps at 5 GHz and 576 Mbps at 2.4 GHz, support for up to 500 simultaneous clients and five Gigabit Ethernet ports, including one WAN and four LAN ports.

A dual-core 1.3 GHz ARM Cortex-A53 processor, 1 GB of RAM and 8 GB of eMMC storage provide resources for local data processing and logging, while Docker support enables containerized applications and services to run directly on the router. A USB 2.0 port and digital input and output expand integration options for external equipment. RutOS provides routing, firewall, VLAN and VPN functionality along with support for Modbus, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT, while Teltonika RMS enables remote configuration and monitoring. A 9-50 VDC input range, passive PoE through LAN1, anodized aluminium enclosure and operating temperature range from -40°C to 75°C support deployments in edge computing, industrial automation, energy systems, monitoring and installations requiring local application execution.

Features

  • Mobile connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 9
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Band management and band lock
    • SIM Idle Protection
    • SIM PIN code management
    • Auto APN
    • Bridge and Passthrough modes
    • Framed Routing
    • 2 x SMA connector for mobile antennas
  • Dual SIM and eSIM
    • 2 x Mini SIM (2FF) slot
    • SIM voltage: 1.8 V / 3 V
    • External SIM holders
    • eSIM support
    • Up to 7 eSIM profiles
    • eSIM profile download and removal
    • Automatic SIM and eSIM switching
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure
    • SIM Idle Protection
  • WiFi
    • Standard: IEEE 802.11b/g/n/ac/ax
    • Class: WiFi 6
    • Bands: 2.4 GHz and 5 GHz
    • MU-MIMO
    • Maximum speed at 5 GHz: 2402 Mbps
    • Maximum speed at 2.4 GHz: 576 Mbps
    • Maximum simultaneous connections: 500
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11s Wireless Mesh
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • Hidden SSID
    • MAC-based access control
    • MAC allowlist and blocklist
    • WiFi QR code generator
    • TravelMate
    • 3 x RP-SMA connector for WiFi antennas
  • Ethernet
    • 1 x WAN RJ45 10/100/1000 Mbps port
    • 4 x LAN RJ45 10/100/1000 Mbps ports
    • Total: 5 x Gigabit Ethernet ports
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3az compliance
    • Auto MDI/MDIX
    • Port Mirroring
    • Edge computing and Docker
    • Docker container support
    • Custom applications and services running directly on the router
    • Local data logging and processing
    • Cloud service integration
  • USB
    • 1 x USB Type-A port
    • Standard: USB 2.0
    • Samba Share support
    • USB-to-Serial support
    • External HDD support
    • USB flash drive support
    • Additional modem support
    • Printer support
    • USB-to-Serial adapter support
    • Supported file systems: FAT, FAT32, exFAT, read-only NTFS, ext2, ext3, ext4
  • Inputs and outputs
    • 1 x digital input
    • Digital input logic low: 0-6 V
    • Digital input logic high: 8-50 V
    • 1 x open-collector digital output
    • Maximum output parameters: 50 V / 300 mA
    • Input and output on the 4-pin power connector
    • Events via Email, RMS and SMS
    • I/O Juggler
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • Modbus via USB
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • BACnet RTU via USB
    • DNP3: Station, Outstation
    • DNP3 over TCP
    • DLMS/COSEM: Client
    • DLMS/COSEM over TCP and USB
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Lua scripting in Data to Server
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, mobile, VRRP, wired
    • Automatic WAN Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • Hotspot 2.0
    • SSHFS
    • VRF
    • IGMP Proxy
    • Real-time network traffic monitoring
    • Port Mirroring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port-based and tag-based VLAN
    • 802.1X Client and Server
    • DDoS attack prevention
    • Port scan prevention
    • Mobile data quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Pre-shared key and X.509 certificate authentication
    • TACACS+
    • RADIUS
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • Tailscale
    • NetBird
    • GRE
    • EoIP
    • OpenConnect
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • WEB UI via HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • Email notifications
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
    • Docker support
  • Hardware
    • Processor: MediaTek dual-core 1.3 GHz ARM Cortex-A53
    • RAM: 1 GB DDR4
    • Flash memory: 16 MB Serial NOR Flash
    • eMMC storage: 8 GB
  • Power
    • Power connector: 4-pin industrial DC socket
    • Input voltage: 9-50 VDC
    • Reverse polarity protection
    • Surge and transient voltage protection
    • Passive PoE through LAN1
    • Passive PoE: Mode B, 9-50 VDC
    • Passive PoE not compatible with IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt
    • Idle power consumption: below 5.5 W
    • Maximum power consumption: below 13.5 W
  • Mechanical and environmental parameters
    • Enclosure: anodized aluminium
    • Dimensions: 130.4 x 42.6 x 104 mm
    • Weight: 480 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • 5 x RJ45 10/100/1000 Mbps ports
    • 1 x USB Type-A port
    • 1 x 4-pin power connector
    • 2 x SMA connector for mobile antennas
    • 3 x RP-SMA connector for WiFi antennas
    • 1 x grounding screw
    • WAN, mobile network, Ethernet, WiFi and power status LEDs
    • Reset button
    • DIN rail, wall or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika RUTC41 router
  • 24 W EU power supply
  • 2 x SMA mobile antenna
  • 3 x dual-band WiFi antenna
  • 1.5 m Ethernet cable
  • SIM adapter kit
  • Quick Start Guide
1208035

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n/ac/ax
WiFi Band
2,4 GHz / 5 GHz
Number of Ethernet Ports
5
Number of SIM Cards
2
eSIM
Yes
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
Yes
Power supply voltage
9 - 50 V DC
Tightness class
IP30
