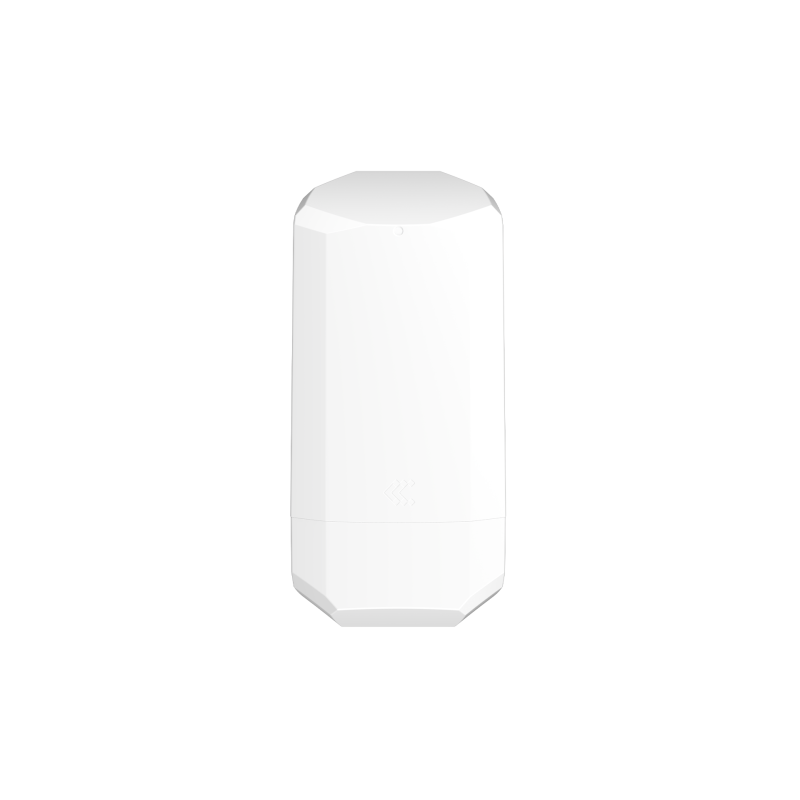

Teltonika OTD500 - outdoor 5G Dual SIM router with eSIM™, Gigabit Ethernet and PoE In/Out - IP55

Description

Outdoor 5G router designed to provide high-speed mobile connectivity in installations operating outside buildings. Teltonika OTD500 supports 5G Sub-6 GHz SA/NSA with download speeds up to 3.4 Gbps, 4G LTE Cat 19 with download speeds up to 1.6 Gbps, as well as 3G networks. Dual SIM with automatic SIM switching helps maintain connectivity in cases such as weak signal, network loss, roaming or data connection failure. The router also supports eSIM™ with storage for up to 7 profiles, expanding operator flexibility without replacing a physical SIM card. The PC+ASA plastic housing provides an IP55 ingress protection rating, while four integrated mobile antennas support frequency bands used by 5G, LTE and 3G networks.

The router is equipped with two 10/100/1000 Mbps Gigabit Ethernet ports, which can be configured as WAN, including 1 x PoE In 802.3af/at and 1 x PoE Out 802.3af Alternative B with a maximum output power of 15 W. The OpenWrt-based RutOS operating system provides routing, load balancing, firewall, VLAN, VPN and VRF functions, as well as support for Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT. A TPM 2.0 module supports identification and authentication mechanisms, while Teltonika RMS enables remote monitoring, configuration and firmware updates. An operating temperature range from -40°C to 55°C and a mounting bracket for vertical surfaces or poles allow the OTD500 to be used in energy systems, industrial automation, monitoring installations, smart city infrastructure and outdoor IoT applications requiring high-throughput mobile connectivity.

Features

• Mobile connectivity
  • Standards: 5G Sub-6 GHz SA/NSA, 4G LTE, 3G
  • 5G download speed: up to 2.4 / 3.4 Gbps, 4x4 MIMO
  • 5G upload speed: up to 900 / 550 Mbps, 2x2 MIMO
  • 4G LTE: Cat 19 up to 1.6 Gbps download
  • 4G LTE: Cat 18 up to 200 Mbps upload
  • 3G: up to 42 Mbps download / 5.76 Mbps upload
  • 3GPP: Release 16
  • Dual SIM: 2 x Mini SIM (2FF)
  • Automatic SIM switching in case of weak signal, data or SMS limit, roaming, no network, network denial or data connection failure
  • SIM Idle Protection
  • Auto APN
  • Band management and band lock
  • SMS and USSD support
  • Bridge and Passthrough modes
  • Framed Routing
• eSIM™
  • Type: consumer eSIM™
  • Profile download and removal support
  • Up to 7 stored eSIM™ profiles
  • eSIM™ SGP.22 support
  • Data plans not included with the device
• Ethernet and PoE
  • 2 x RJ45 10/100/1000 Mbps port
  • Ethernet ports configurable as WAN
  • IEEE 802.3, IEEE 802.3u and IEEE 802.3az compliance
  • Auto MDI/MDIX
  • 1 x PoE In
  • PoE In standard: IEEE 802.3af/at
  • 1 x PoE Out
  • PoE Out standard: IEEE 802.3af Alternative B
  • Maximum PoE Out power: 15 W, depending on the power supply unit
• Industrial and IoT protocols
  • Modbus TCP: Client, Server
  • DNP3: Station, Outstation over TCP
  • DLMS/COSEM: Client over TCP
  • OPC UA: Client, Server
  • BACnet/IP: Router
  • MQTT
  • Modbus MQTT Gateway
  • Data to Server: HTTP(S), MQTT, Azure MQTT
  • Teltonika Networks Web API
• Network and routing
  • Static routing
  • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
  • Policy Based Routing
  • Load Balancing for multiple WAN connections
  • VRF support
  • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
  • DHCP Server and DHCP Relay
  • QoS / Smart Queue Management
  • DDNS
  • DNS over HTTPS
  • Network Backup
  • Hotspot
  • SSHFS
  • Real-time network traffic monitoring
• Security and VPN
  • TPM 2.0 module
  • Firewall
  • NAT, NAT-T, NAT64 and DMZ
  • Port-based and tag-based VLAN
  • DDoS attack prevention
  • Port scan prevention
  • Access control for SSH, WEB UI, CLI and Telnet
  • Pre-shared key and X.509 certificate authentication
  • TACACS+
  • RADIUS
  • 802.1X
  • Certificate Manager
  • OpenVPN
  • IPsec with IKEv1 and IKEv2
  • WireGuard
  • Tailscale
  • ZeroTier
  • GRE
  • PPTP
  • L2TP and L2TPv3
  • SSTP
  • DMVPN
  • Tinc
  • Stunnel
• Management and software
  • Operating system: OpenWrt-based RutOS
  • WEB UI via HTTP/HTTPS
  • Teltonika Remote Management System (RMS)
  • FOTA
  • SSH v1 and v2
  • SNMP v1, v2 and v3
  • SNMP Trap
  • TR-069
  • JSON-RPC
  • MQTT Broker and MQTT Publisher
  • Azure IoT Hub support
  • AWS IoT Core support
  • ThingWorx support
  • Cumulocity support
  • Package Manager
  • BusyBox shell, Lua, C and C++ support
  • Python and Java support via Package Manager
  • SDK for custom software development
• Hardware
  • CPU: MediaTek Dual-Core 880 MHz, MIPS1004Kc
  • RAM: 256 MB DDR3
  • Flash storage: 16 MB Serial NOR Flash
  • Flash storage: 256 MB Serial NAND Flash
• Antennas
  • 4 x integrated omnidirectional antenna
  • Frequency ranges: 617-960 MHz / 1695-2690 MHz / 3300-4200 MHz / 4200-5000 MHz
  • Impedance: 50 Ω
  • VSWR: < 3.5
  • Gain: < 4.9 dBi
• Power supply
  • Power supply via PoE In
  • Input voltage: 42.5-57 VDC
  • Reverse polarity protection
  • Voltage surge and transient protection
  • Idle power consumption: < 2.5 W
  • Maximum power consumption without PoE Out: < 9 W
  • Maximum power consumption with PoE: < 24 W
• Mechanical and environmental specifications
  • Housing material: PC+ASA plastic
  • Ingress protection rating: IP55
  • Dimensions: 110 x 49.3 x 235 mm
  • Weight: 385 g
  • Operating temperature: -40°C to 55°C
  • Operating humidity: 10% to 90%, non-condensing
  • Mounting bracket
  • Mounting on a vertical flat surface or pole
  • 3 x mobile connection type LED
  • 3 x mobile signal strength LED
  • 4 x Ethernet status LED
  • Reset button

Kit includes

• Teltonika OTD500 router
• Mounting bracket
• Quick Start Guide
