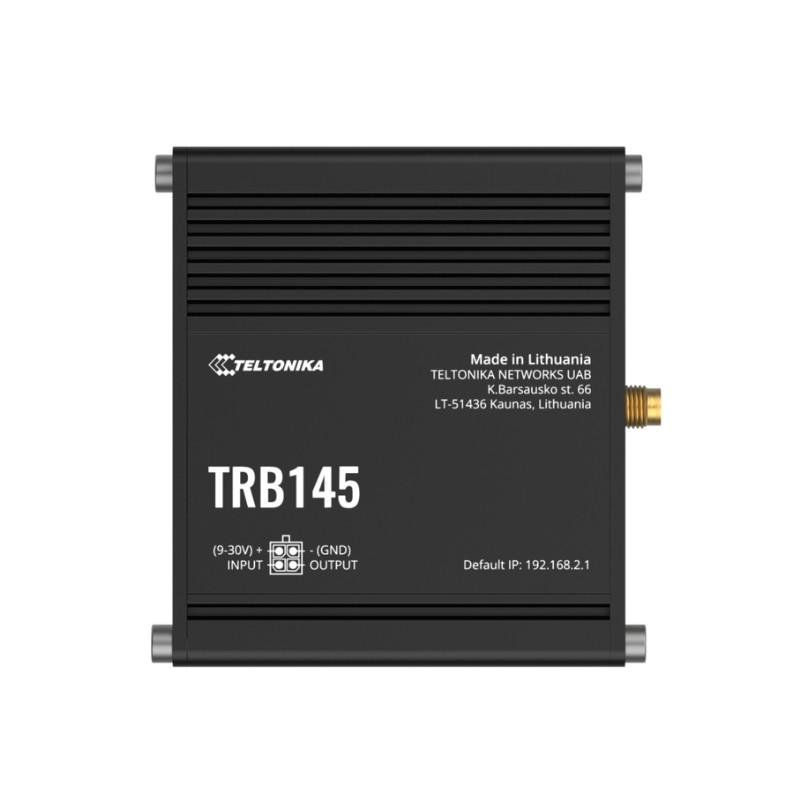

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208078
4779027312415
zł478.15
Tax included

zł388.74 tax excl.

Industrial network gateway for remote communication with serial devices; 4G LTE Cat 1 with speeds up to 10Mbps; 3G and 2G; 2-wire or 4-wire RS485 interface; support for Modbus TCP/RTU, DNP3, BACnet, DLMS/COSEM and MQTT; 2 configurable inputs/outputs; 9-30VDC power supply; RutOS operating system. Teltonika TRB145

24h
Available
Available quantity: 1

Description

Industrial network gateway Teltonika TRB145 designed for remotely connecting devices using RS485 serial communication to a cellular network. It supports 4G LTE Cat 1 with download speeds up to 10 Mbps and upload speeds up to 5 Mbps, as well as 3G and 2G networks. The RS485 interface with a 6-pin terminal block supports 2-wire and 4-wire communication, enabling integration with controllers, meters, measuring equipment and other industrial devices. Selected versions also provide 2 configurable digital inputs/outputs on the power connector.

The RutOS operating system based on OpenWrt supports industrial and IoT protocols, including Modbus TCP and RTU, DNP3, BACnet, OPC UA, MQTT and DLMS/COSEM, as well as VPN, firewall and remote management via Teltonika RMS. The aluminum housing, operating temperature range from -40°C to 75°C, power consumption below 5 W and DIN rail mounting option allow the TRB145 to be used in industrial automation, energy systems, telemetry applications and installations requiring remote access to RS485 devices.

Features

  • Mobile connectivity
    • Standards: 4G LTE Cat 1, 3G, 2G
    • 4G LTE speed: up to 10 Mbps download / 5 Mbps upload
    • 3G speed: up to 384 kbps download / 384 kbps upload
    • 2G speed: up to 296 kbps download / 236.8 kbps upload
    • 3GPP: Release 12
    • SIM slot: 1 x Mini SIM (2FF)
    • Antenna connector: 1 x SMA for LTE
    • SMS and USSD support
    • Automatic APN configuration
    • Band lock and band management
  • RS485 and inputs/outputs
    • Serial interface: 1 x RS485
    • RS485 connector: 6-pin terminal block
    • 2-wire and 4-wire communication support
    • 2 x configurable digital input/output on the 4-pin power connector
    • Digital input logic low: 0-5 V
    • Digital input logic high: 8-30 V
    • Open collector output
    • Maximum output parameters: 30 V / 300 mA
    • Output control via HTTP POST/GET and schedule
    • USB: 1 x micro USB with virtual network interface
    • Reset button
    • Configurable I/O not available in TRB1452*** versions
  • Industrial and IoT protocols
    • Modbus: Client, Server
    • Modbus TCP
    • Modbus RTU via RS485
    • DNP3: Station, Outstation
    • DNP3 via TCP and RTU RS485
    • BACnet/IP: Router
    • BACnet RTU via RS485
    • OPC UA: Client, Server
    • DLMS/COSEM: Client
    • DLMS/COSEM via TCP and RTU RS485
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and security
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL, TLS, ARP, VRRP, PPP, PPPoE, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • DDoS and port scan protection
    • VLAN
    • DNS over HTTPS
    • QoS / Smart Queue Management
    • OpenVPN
    • IPsec
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP
    • SSTP
    • DMVPN
    • Tinc
  • Management and software
    • Operating system: RutOS based on OpenWrt
    • WEB UI
    • SSH
    • FOTA
    • SNMP v1, v2, v3
    • JSON-RPC
    • TR-069
    • MQTT Broker and MQTT Publisher
    • Teltonika Remote Management System (RMS)
    • Azure IoT Hub support
    • AWS IoT Core support
    • ThingWorx support
    • Cumulocity support
  • Hardware
    • Processor: ARM Cortex-A7 1.2 GHz
    • RAM: 128 MB DDR2
    • Flash memory: 512 MB SPI Flash
  • Power supply
    • Input voltage: 9-30 VDC
    • Power connector: industrial 4-pin connector
    • Reverse polarity protection
    • Surge protection
    • Power consumption: less than 5 W
  • Mechanical and environmental specifications
    • Housing: anodized aluminum
    • Dimensions: 74.5 x 25 x 64.4 mm
    • Weight: 130 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat surface mounting with an additional mounting kit

Kit includes

  • Teltonika TRB145 gateway
  • 9 W power supply
  • LTE antenna with SMA connector
  • 0.8 m micro USB cable
  • Hex key
  • 2 x 3-pin terminal block
  • Quick Start Guide
1208078

Data sheet

Cellular Network Standard
4G LTE Cat 1 / 3G / 2G
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
None
Number of SIM Cards
1
eSIM
No
GNSS
No
PoE
No
VPN
Yes
Bluetooth module
No
RS232
None
RS485
1
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
