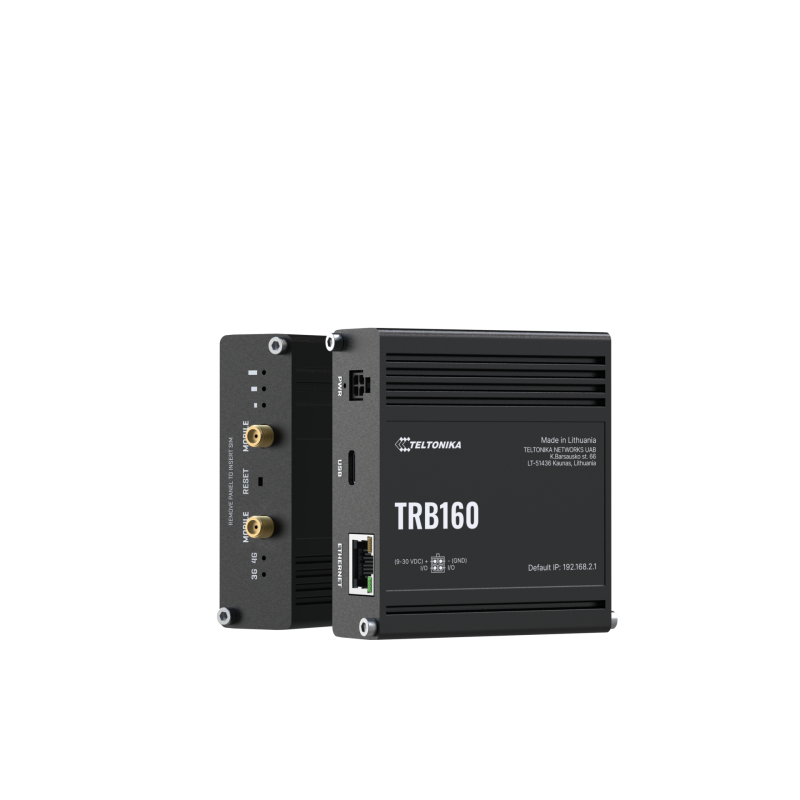

Main view
search
  • Main view
  • Main view (rotated)
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208079
4779051841349
zł839.62
Tax included

zł682.62 tax excl.

Industrial IoT gateway for connecting automation, telemetry and M2M systems to cellular networks; 4G LTE Cat 6 with download speeds up to 300 Mbps and upload speeds up to 50 Mbps; carrier aggregation; 1 x Gigabit Ethernet; USB Type-C for power and network data; Mini SIM; 2 x SMA; configurable digital I/O; Modbus TCP, MQTT, DNP3, DLMS/COSEM and BACnet/IP; VPN support; RutOS; 9-30 VDC or 5 VDC via USB Type-C; passive PoE; aluminium enclosure; IP30; operating temperature from -40°C to 75°C. Teltonika TRB160

24h
Available
Available quantity: 2

Description

Industrial IoT gateway designed to provide cellular connectivity and data exchange between automation devices, telemetry systems and M2M installations. Teltonika TRB160 supports 4G LTE Cat 6 with carrier aggregation, providing download speeds up to 300 Mbps and upload speeds up to 50 Mbps, while 3G support enables transmission speeds up to 42 Mbps download and 5.76 Mbps upload. Interfaces include 1 x Gigabit Ethernet 10/100/1000 Mbps and USB Type-C, which supports simultaneous 5 V power delivery and data transmission through a virtual network interface. The gateway supports Modbus TCP, OPC UA Client, MQTT, DNP3, DLMS/COSEM and BACnet/IP, while routing, VLAN, Failover, Load Balancing and VPN functions enable integration of industrial equipment with local and remote network systems.

Two configurable digital I/O channels can operate as inputs or outputs for monitoring signals and controlling external equipment. Management options include WebUI, SSH, SNMP, FOTA and Teltonika RMS, while the OpenWrt-based RutOS runs on a Qualcomm ARM Cortex-A7 1.28 GHz processor with 128 MB RAM and 256 MB Flash memory. Power can be supplied through the industrial 4-pin 9-30 VDC connector, USB Type-C at 5 VDC or passive PoE over Ethernet at 9-30 VDC. An anodised aluminium enclosure, IP30 rating and operating temperature range from -40°C to 75°C support use in industrial automation, telemetry, energy systems, remote monitoring and distributed IoT installations.

Features

  • Cellular connectivity
    • 4G LTE Cat 6: up to 300 Mbps download / 50 Mbps upload
    • 3G: up to 42 Mbps download / 5.76 Mbps upload
    • 3GPP: Release 12
    • Carrier Aggregation
    • 2 x SMA connector for cellular antennas
    • Band Lock
    • Auto APN
    • Bridge mode
    • Passthrough mode
    • SMS and USSD
  • Ethernet and USB
    • 1 x RJ45 10/100/1000 Mbps port
    • IEEE 802.3, IEEE 802.3u and IEEE 802.3az
    • Auto MDI/MDIX
    • 1 x USB Type-C port
    • Virtual network interface via USB Type-C
    • Data transmission and power supply via USB Type-C
  • SIM card
    • 1 x internal Mini SIM slot (2FF)
    • SIM voltage: 1.8 V / 3 V
  • Routing and network functions
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • IPv4 and IPv6
    • DHCP Server, DHCP Client and DHCP Relay
    • VRRP
    • VLAN
    • QoS / Smart Queue Management
    • Load Balancing
    • Automatic Failover
    • DNS over HTTPS
    • Wake On LAN
    • VXLAN
  • VPN and tunnelling
    • OpenVPN
    • IPsec
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • Stunnel
    • DMVPN
    • SSTP
    • ZeroTier
    • WireGuard
    • Tinc
  • Industrial and IoT protocols
    • BACnet/IP
    • OPC UA Client
    • Modbus TCP Client and Server
    • Modbus MQTT Gateway
    • MQTT
    • DNP3 Station and Outstation
    • DLMS/COSEM Client
    • Data to Server via HTTP(S), MQTT and Azure MQTT
  • Management and monitoring
    • WebUI via HTTP/HTTPS
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • TR-069
    • JSON-RPC
    • FOTA
    • Teltonika RMS
    • Teltonika Networks Web API
    • MQTT Broker and MQTT Publisher
    • SMS
  • IoT platforms
    • ThingWorx
    • Cumulocity Cloud of Things
    • Azure IoT Hub
    • AWS IoT Core
  • Security
    • Firewall
    • NAT, NAT-T and NAT64
    • DDoS attack prevention
    • Port scan prevention
    • MAC address filtering
    • RADIUS
    • TACACS+
    • X.509 certificates
    • Certificate Manager
    • Mobile data quota control
    • Web filtering
  • System
    • Operating system: OpenWrt-based RutOS
    • Processor: Qualcomm ARM Cortex-A7 1.28 GHz
    • RAM: 128 MB
    • Flash memory: 256 MB
    • BusyBox Shell
    • Lua
    • C
    • C++
    • Package Manager
    • SDK
  • Inputs and outputs
    • Up to 2 x configurable shared digital I/O
    • Input logic low: 0-6 V
    • Input logic high: 8-30 V
    • Open Collector output
    • Maximum output voltage: 30 V
    • Maximum output current: 300 mA
    • Events via email, RMS and SMS
    • I/O Juggler
  • Power supply
    • 1 x industrial 4-pin DC power connector
    • Input voltage via 4-pin connector: 9-30 VDC
    • Power supply via USB Type-C: 5 VDC
    • Passive PoE via Ethernet port
    • Passive PoE: Mode B, 9-30 VDC
    • Passive PoE not compatible with IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt
    • Idle power consumption: below 0.25 W
    • Maximum power consumption: below 3.3 W
  • Interfaces and indicators
    • 1 x RJ45 10/100/1000 Mbps port
    • 1 x USB Type-C port
    • 1 x industrial 4-pin power connector
    • 2 x SMA connector for cellular antennas
    • 2 x connection type status LED
    • 3 x signal strength LED
    • 2 x Ethernet status LED
    • 1 x Power LED
    • Reset button
  • Mechanical and environmental parameters
    • Enclosure: anodised aluminium
    • Dimensions: 83 x 25 x 74.2 mm
    • Weight: 172 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional mounting kit

Kit Includes

  • Teltonika TRB160 IoT Gateway
  • 9 W power supply
  • 2 x magnetic SMA cellular antenna
  • 0.8 m USB Type-C cable
  • 1.5 m Ethernet cable
  • Hex key
  • Quick Start Guide
1208079

Data sheet

Cellular Network Standard
4G LTE Cat 6 / 3G
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
1
Number of SIM Cards
1
eSIM
No
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
No
Power supply voltage
9 - 30 V DC / 5 V DC USB-C
Tightness class
IP30
