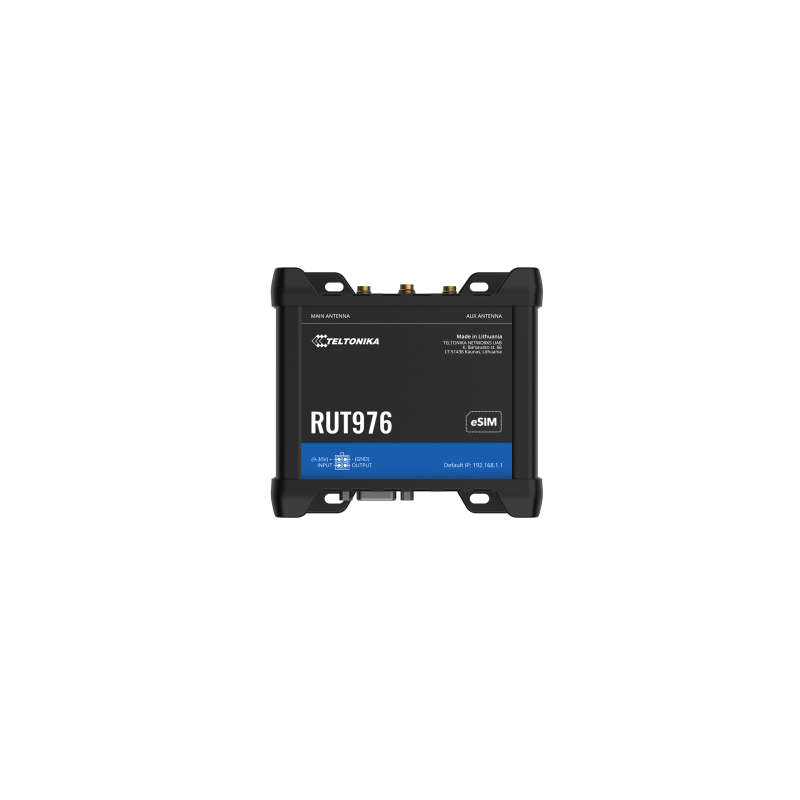

  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208024
4779051842568
zł1,533.81
Tax included

zł1,247.00 tax excl.

Industrial 5G RedCap cellular router for automation, telemetry, IoT and M2M systems; 5G Sub-6 GHz SA up to 223 Mbps download and 123 Mbps upload; backward compatible with 4G LTE Cat 4 up to 195/105 Mbps; 3GPP Release 17 RedCap; Dual SIM with automatic switching; WiFi 4; 1 WAN port and 3 LAN 10/100 Mbps ports; RS232 and RS485; GNSS with GPS, GLONASS, BeiDou, Galileo and QZSS; USB 2.0; microSD up to 2 TB; extensive inputs and outputs; Modbus RTU/TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT; passive PoE 9-30 VDC; RutOS; Teltonika RMS; operating temperature from -40°C to 75°C. Teltonika RUT976

24h
Available
Available quantity: 1

Description

Industrial cellular router designed to provide connectivity in automation installations, telemetry systems, IoT applications and distributed industrial networks. Teltonika RUT976 supports 5G RedCap Sub-6 GHz in SA architecture with download speeds up to 223 Mbps and upload speeds up to 123 Mbps, while maintaining backward compatibility with 4G LTE Cat 4 when 5G coverage is limited. Two Mini SIM slots enable automatic SIM switching in cases such as weak signal, roaming, network loss or data connection failure. The router provides WiFi 4 802.11b/g/n for up to 100 simultaneous connections, one WAN port and three 10/100 Mbps LAN ports, as well as automatic WAN Failover and load balancing.

RS232 and RS485 interfaces, a USB 2.0 port, an internal microSD slot and a set of inputs and outputs enable integration of controllers, meters, sensors and other industrial devices. The GNSS receiver supports GPS, GLONASS, BeiDou, Galileo and QZSS, as well as NMEA 0183, NTRIP and geofencing functions. RutOS provides routing, firewall, VLAN, VPN and support for Modbus RTU/TCP, DNP3, DLMS/COSEM, OPC UA, BACnet and MQTT, while Teltonika RMS supports remote device management and monitoring. 9-30 VDC power supply and passive PoE on the LAN1 port, combined with the aluminium enclosure and operating temperature range from -40°C to 75°C, support use in industrial automation, energy systems, transport, monitoring and remote infrastructure supervision.

Features

  • Cellular connectivity
    • Standard: 5G RedCap Sub-6 GHz SA
    • Backward compatibility: 4G LTE Cat 4
    • 5G speed: up to 223 Mbps download / 123 Mbps upload
    • 4G LTE speed: up to 195 Mbps download / 105 Mbps upload
    • 3GPP: Release 17 RedCap
    • SMS and USSD support
    • Operator blocklist and allowlist
    • Band management and band lock
    • SIM Idle Protection
    • SIM PIN code management
    • Auto APN
    • Bridge and Passthrough modes
    • 2 x SMA connector for cellular antennas
  • Dual SIM
    • 2 x Mini SIM slot (2FF)
    • SIM voltage: 1.8 V / 3 V
    • External SIM holders
    • Automatic SIM switching
    • Switching criteria: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure
    • SIM Idle Protection
  • WiFi
    • Standard: IEEE 802.11b/g/n
    • Class: WiFi 4
    • Operating modes: Access Point (AP), Station (STA)
    • Maximum simultaneous connections: 100
    • WPA2-Enterprise
    • WPA2-PSK
    • WPA-EAP
    • WPA-PSK
    • WPA3-SAE
    • WPA3-EAP
    • OWE
    • AES-CCMP
    • TKIP
    • EAP-TLS with PKCS#12 certificates
    • 802.11w Protected Management Frames
    • 802.11s Wireless Mesh
    • 802.11r Fast Roaming
    • 802.11v BSS Transition Management
    • 802.11k Radio Resource Measurement
    • SSID hiding
    • MAC address-based access control
    • MAC allowlist and blocklist
    • WiFi connection QR code generator
    • TravelMate
    • 2 x RP-SMA connector for WiFi antennas
  • Ethernet
    • 1 x WAN RJ45 10/100 Mbps port
    • 3 x LAN RJ45 10/100 Mbps ports
    • Total: 4 x 10/100 Mbps Ethernet ports
    • IEEE 802.3 and IEEE 802.3u compliant
    • WAN port also compliant with IEEE 802.3az
    • Auto MDI/MDIX
    • Port Mirroring
  • RS232 and RS485
    • 1 x RS232 interface
    • RS232 connector: DB9
    • RTS/CTS flow control
    • 1 x RS485 interface
    • RS485 Full Duplex: 4-wire
    • RS485 Half Duplex: 2-wire
    • RS485 baud rate: 300 to 115200 baud
    • RS485 connector: 6-pin industrial connector
    • Serial functions: Console, Serial over IP, Modem, Modbus Gateway, NTRIP Client
  • GNSS
    • Supported systems: GPS, GLONASS, BeiDou, Galileo, QZSS
    • Coordinate access via WEB UI, SMS, TAVL and RMS
    • NMEA 0183 support
    • NTRIP support
    • Geofencing
    • TAVL and RMS support
    • 1 x SMA connector for GNSS antenna
  • USB
    • 1 x USB Type-A port
    • Standard: USB 2.0
    • Samba Share support
    • USB-to-Serial support
    • External HDD support
    • Flash drive support
    • Printer support
    • USB-Serial adapter support
    • Supported file systems: FAT, FAT32, exFAT, NTFS read-only, ext2, ext3, ext4
  • microSD memory
    • Internal microSD slot
    • Maximum card capacity: 2 TB
    • Samba Share support
    • Storage Memory Expansion
    • DLNA
    • Supported file systems: FAT32, NTFS, ext2, ext3, ext4
  • Inputs and outputs
    • 1 x digital dry input 0-3 V
    • 1 x galvanically isolated digital input 0-30 V
    • 1 x analog input 0-24 V with 4-20 mA support
    • 1 x non-isolated digital input on the 4-pin power connector
    • Logic low for non-isolated digital input: 0-5 V
    • Logic high for non-isolated digital input: 8-30 V
    • 1 x digital open collector output 30 V / 250 mA
    • 1 x SPST relay output 40 V / 4 A
    • 1 x digital open collector output 30 V / 300 mA on the power connector
    • Event support via Email, RMS and SMS
    • I/O Juggler
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • Modbus RTU over RS232 and RS485
    • Modbus over USB
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • BACnet RTU over RS485 and USB
    • DNP3: TCP Master, Outstation
    • DNP3 over RS232, RS485, TCP and USB
    • DLMS/COSEM: Client
    • DLMS/COSEM over RS232, RS485 and TCP
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Lua scripting support in Data to Server
    • Teltonika Networks Web API
  • Network and routing
    • Static routing
    • Dynamic routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
    • Policy Based Routing
    • Network Backup: WiFi WAN, mobile, VRRP, wired
    • Automatic WAN Failover
    • Load Balancing for multiple WAN connections
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN
    • VoIP Passthrough: H.323 and SIP ALG
    • DHCP Server and DHCP Relay
    • QoS / Smart Queue Management
    • DDNS
    • DNS over HTTPS
    • Hotspot
    • SSHFS
    • Port Mirroring
  • Security and VPN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • Port- and tag-based VLAN
    • 802.1X
    • DDoS attack prevention
    • Port scan prevention
    • Mobile data quota control
    • Web filtering
    • Access control for SSH, WEB UI, CLI and Telnet
    • Authentication using pre-shared keys and X.509 certificates
    • TACACS+
    • RADIUS
    • Certificate Manager
    • OpenVPN
    • IPsec with IKEv1 and IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP and L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: RutOS based on OpenWrt
    • WEB UI over HTTP/HTTPS
    • Teltonika Remote Management System (RMS)
    • FOTA
    • SSH v1 and v2
    • SNMP v1, v2 and v3
    • SNMP Trap
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • Email notifications
    • ThingWorx support
    • Cumulocity support
    • Azure IoT Hub support
    • AWS IoT Core support
    • Package Manager
    • BusyBox shell, Lua, C and C++ support
    • SDK for custom software development
  • Hardware
    • Processor: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash memory: 32 MB NOR Flash
  • Power supply
    • Power connector: industrial 4-pin DC connector
    • Input voltage: 9-30 VDC
    • Reverse polarity protection
    • Surge protection
    • Passive PoE over spare pairs of the LAN1 port
    • Passive PoE: Mode B, 9-30 VDC
    • Passive PoE not compliant with IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt
    • Idle power consumption: below 3 W
    • Maximum power consumption: below 7 W
  • Mechanical and environmental parameters
    • Housing: aluminium with plastic panels
    • Dimensions: 110 x 50 x 100 mm
    • Weight: 295 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 10% to 90%, non-condensing
    • 4 x RJ45 10/100 Mbps port
    • 1 x USB Type-A port
    • 1 x DB9 connector for RS232
    • 1 x 6-pin industrial RS485 connector
    • 1 x 10-pin industrial I/O connector
    • 1 x 4-pin power connector
    • 1 x bi-colour connection status LED
    • 5 x mobile signal strength LED
    • 4 x Ethernet status LED
    • 1 x power LED
    • Reset button
    • DIN rail, wall or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika RUT976 router
  • 9 W power supply
  • 2 x 5G antenna
  • 2 x WiFi antenna
  • GNSS antenna
  • Connector set
  • 1.5 m Ethernet cable
  • SIM adapter kit
  • Quick Start Guide
1208024

Data sheet

Cellular Network Standard
5G RedCap / 4G LTE Cat 4
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n
WiFi Band
2,4 GHz
Number of Ethernet Ports
4
Number of SIM Cards
2
eSIM
No
GNSS
Yes
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
1
RS485
1
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
