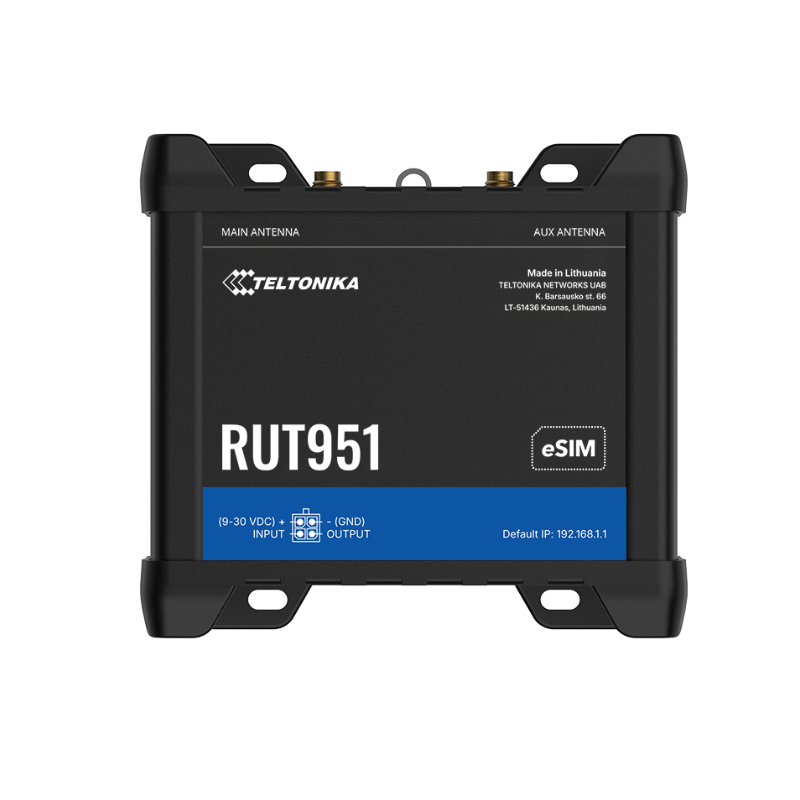

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208018
4779051840168
zł921.29
Tax included

zł749.02 tax excl.

Industrial 4G LTE Cat 4 cellular router for IoT, automation and monitoring systems; download speeds up to 150 Mbps and upload speeds up to 50 Mbps; Dual SIM; WiFi 4; 1 WAN port and 3 LAN 10/100 Mbps ports; passive PoE on LAN1; digital input and output; Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet/IP and MQTT; VPN; RutOS; Teltonika RMS; operating temperature from -40°C to 75°C; 9 W power supply included. Teltonika RUT951

2 weeks
Awaiting delivery

Description

Industrial cellular router designed to provide LTE, Ethernet and WiFi connectivity in IoT systems, automation, monitoring and distributed network installations. Teltonika RUT951 supports 4G LTE Cat 4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as 3G and 2G networks. Two Mini SIM slots enable automatic SIM switching based on conditions such as weak signal, network loss, roaming, data connection failure or data limit. The router provides WiFi 4 802.11b/g/n, one WAN port and three 10/100 Mbps LAN ports, automatic WAN Failover and load balancing.

Power is supplied through a 4-pin industrial connector with an input voltage range of 9-30 V DC. The router also supports passive PoE Mode B, 9-30 V DC through the LAN1 port, which is not compatible with IEEE 802.3af, 802.3at or 802.3bt standards. OpenWrt-based RutOS provides routing, security and VPN functions, as well as support for industrial and IoT protocols including Modbus TCP, DNP3, DLMS/COSEM, OPC UA, BACnet/IP and MQTT. Teltonika RMS enables remote device management and monitoring.

The aluminium housing with plastic panels, IP30 protection rating and operating temperature range from -40°C to 75°C support deployment in industrial automation, telemetry, monitoring systems and IoT installations. The enclosure measures 110 x 50 x 100 mm.

Features

  • Cellular connectivity
    • Standards: 4G LTE Cat 4, 3G, 2G
    • 4G LTE speed: up to 150 Mbps download / 50 Mbps upload
    • 3G speed: up to 21 Mbps download / 5.76 Mbps upload
    • 2G speed: up to 236.8 kbps download / 236.8 kbps upload
    • 3GPP: Release 10/11 depending on hardware version
    • SMS and USSD support
    • Multiple PDN
    • Automatic APN configuration
    • Band management and band lock
    • Bridge and Passthrough modes
    • 2 x SMA connector for LTE antennas
  • Dual SIM
    • 2 x Mini SIM (2FF) slot
    • SIM voltage: 1.8 V / 3 V
    • Automatic SIM switching
    • SIM Idle Protection
    • Switching criteria include weak signal, data limit, roaming, no network and data connection failure
  • WiFi
    • Standard: IEEE 802.11b/g/n
    • Class: WiFi 4
    • Operating modes: Access Point (AP), Station (STA)
    • Maximum number of simultaneous connections: 100
    • Wireless Mesh 802.11s
    • Fast Roaming 802.11r
    • BSS Transition Management 802.11v
    • Radio Resource Measurement 802.11k
    • 2 x RP-SMA connector for WiFi antennas
  • Ethernet
    • 1 x WAN RJ45 10/100 Mbps port
    • 3 x LAN RJ45 10/100 Mbps ports
    • Total: 4 x RJ45 10/100 Mbps
    • Auto MDI/MDIX
    • Port Mirroring
  • Inputs and outputs
    • 1 x digital input
    • Input logic low: 0-6 V
    • Input logic high: 8-30 V
    • 1 x open collector digital output
    • Maximum output parameters: 30 V / 300 mA
    • I/O available through the 4-pin power connector
    • Event support via Email, RMS and SMS
    • I/O Juggler
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • DNP3: Station, Outstation over TCP
    • DLMS/COSEM: Client over TCP
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network, security and VPN
    • Automatic WAN Failover
    • Load Balancing
    • Static and dynamic routing
    • VLAN
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • OpenVPN
    • IPsec IKEv1 / IKEv2
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP / L2TPv3
    • SSTP
    • DMVPN
    • Tinc
    • Stunnel
  • Management and software
    • Operating system: OpenWrt-based RutOS
    • Teltonika Remote Management System (RMS)
    • WEB UI via HTTP/HTTPS
    • FOTA
    • SSH
    • SNMP
    • TR-069
    • JSON-RPC
    • MQTT Broker and MQTT Publisher
    • Package Manager
    • SDK
  • Hardware
    • Processor: MediaTek 580 MHz, MIPS 24KEc
    • RAM: 128 MB DDR2
    • Flash memory: 16 MB SPI Flash
  • Power supply
    • Power connector: industrial 4-pin DC
    • Input voltage: 9-30 V DC
    • Passive PoE: LAN1, Mode B, 9-30 V DC
    • Passive PoE is not compatible with IEEE 802.3af, 802.3at or 802.3bt
    • Reverse polarity protection
    • 9 W power supply included
  • Mechanical and environmental parameters
    • Housing: aluminium with plastic panels
    • Dimensions: 110 x 50 x 100 mm
    • Weight: 287 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • Reset button

Kit includes

  • Teltonika RUT951 router
  • 9 W EU power supply
  • 2 x LTE antenna with SMA connector
  • 2 x WiFi antenna with RP-SMA connector
  • 1.5 m Ethernet cable
  • SIM adapter kit
  • Quick Start Guide (QSG)
1208018

Data sheet

Cellular Network Standard
4G LTE Cat 4 / 3G / 2G
WiFi module
Yes
Wi-Fi standard
802.11 b/g/n
WiFi Band
2,4 GHz
Number of Ethernet Ports
4
Number of SIM Cards
2
eSIM
No
GNSS
No
PoE
Yes
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
