ID: 1208075
4779027312620
zł527.71
Tax included

zł429.03 tax excl.

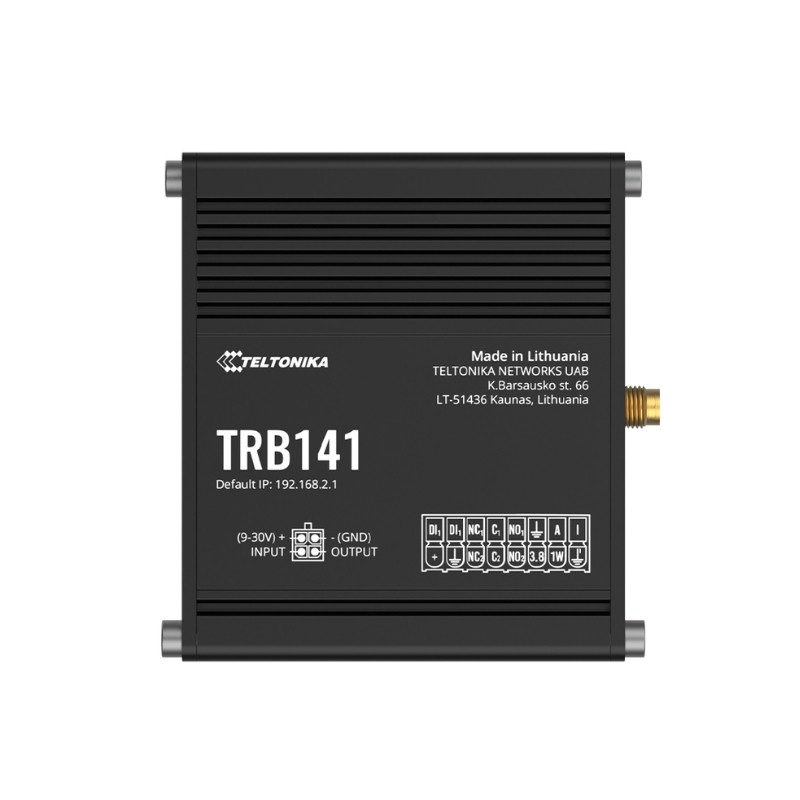

Industrial network gateway for remote device monitoring and control; 4G LTE Cat 1 with speeds up to 10Mbps; 3G and 2G; extensive set of digital and analog inputs and outputs; 2 relay outputs; 1-Wire interface; support for Modbus TCP, DNP3, OPC UA and MQTT; 9-30VDC power supply; RutOS operating system. Teltonika TRB141

24h
Available
Available quantity: 1

Description

Industrial Teltonika TRB141 network gateway designed for remote monitoring and control of devices in automation systems and IoT installations. It supports 4G LTE Cat 1 with download speeds up to 10 Mbps and upload speeds up to 5 Mbps, as well as 3G and 2G networks. The extensive I/O set includes digital inputs, an isolated input, an analog input with 4-20 mA support, relay outputs, an open collector output and a 1-Wire interface. These interfaces enable direct connection of sensors, actuators and other automation devices.

The RutOS operating system based on OpenWrt provides support for industrial and IoT protocols, including Modbus TCP, DNP3, OPC UA, BACnet, MQTT and DLMS/COSEM, as well as VPN, firewall and remote management functions through Teltonika RMS. The aluminum housing, operating temperature range from -40°C to 75°C, 9-30 VDC power supply and DIN rail mounting option allow the TRB141 to be used in telemetry systems, industrial automation, energy applications, remote installation supervision and cellular-based device control.

Features

  • Mobile connectivity
    • Standards: 4G LTE Cat 1, 3G, 2G
    • 4G LTE speed: up to 10 Mbps download / 5 Mbps upload
    • 3G speed: up to 384 kbps download / 384 kbps upload
    • 2G speed: up to 296 kbps download / 236.8 kbps upload
    • 3GPP: Release 12
    • SIM slot: 1 x Mini SIM (2FF)
    • Antenna connector: 1 x SMA for LTE
    • SMS and USSD support
    • Automatic APN configuration
    • Band lock and band management
  • Inputs, outputs and interfaces
    • 2 x configurable digital input, active or passive
    • 1 x isolated input
    • 1 x analog input with 4-20 mA support
    • 1 x configurable input
    • Digital input levels: 0-5 V detected as logic low, 8-30 V as logic high
    • 2 x relay output, latching and non-latching mode
    • 1 x configurable open collector output
    • Maximum open collector output: 30 V / 300 mA
    • 1 x 1-Wire interface
    • USB: 1 x micro USB with virtual network interface
    • I/O connector: 16-pin
    • Reset button
  • Industrial and IoT protocols
    • Modbus TCP: Client, Server
    • DNP3: Station, Outstation
    • OPC UA: Client, Server
    • BACnet/IP: Router
    • DLMS/COSEM: Client
    • MQTT
    • Modbus MQTT Gateway
    • Data to Server: HTTP(S), MQTT, Azure MQTT
    • Teltonika Networks Web API
  • Network and security
    • Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL, TLS, ARP, VRRP, PPP, PPPoE, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
    • Firewall
    • NAT, NAT-T, NAT64 and DMZ
    • DDoS and port scan protection
    • VLAN
    • DNS over HTTPS
    • QoS / Smart Queue Management
    • OpenVPN
    • IPsec
    • WireGuard
    • ZeroTier
    • GRE
    • PPTP
    • L2TP
    • SSTP
    • DMVPN
    • Tinc
  • Management and software
    • Operating system: RutOS based on OpenWrt
    • WEB UI
    • SSH
    • FOTA
    • SNMP v1, v2, v3
    • JSON-RPC
    • TR-069
    • MQTT Broker and MQTT Publisher
    • Teltonika Remote Management System (RMS)
    • Azure IoT Hub support
    • AWS IoT Core support
    • ThingWorx support
    • Cumulocity support
  • Hardware
    • Processor: ARM Cortex-A7 1.2 GHz
    • RAM: 128 MB DDR2
    • Flash memory: 512 MB SPI Flash
  • Power supply
    • Input voltage: 9-30 VDC
    • Power connector: industrial 4-pin connector
    • Reverse polarity protection
    • Surge protection
    • Power consumption: less than 5 W
  • Mechanical and environmental specifications
    • Housing: anodized aluminum
    • Dimensions: 74.5 x 25 x 64.4 mm
    • Weight: 136 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall or flat surface mounting with an additional mounting kit

Kit includes

  • Teltonika TRB141 gateway
  • LTE antenna with SMA connector
  • Power supply
  • micro USB cable
  • Quick Start Guide
1208075

Data sheet

Cellular Network Standard
4G LTE Cat 1 / 3G / 2G
WiFi module
No
Wi-Fi standard
None
WiFi Band
None
Number of Ethernet Ports
None
Number of SIM Cards
1
eSIM
No
GNSS
No
PoE
No
VPN
Yes
Bluetooth module
No
RS232
None
RS485
None
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
