KAmodRPi Pico Dual Expander – Dual pinout expander for Raspberry Pi Pico
ID: 1197507
5902186304017
zł25.90
Tax included
zł21.06 tax excl.
The KAmodRPi Pico Dual Expander enables simultaneous connection of multiple modules to the Raspberry Pi Pico and provides convenient access to all its signals. Integrated USB-C power supply, Qwire connector, and clearly labeled pinouts support rapid prototyping and project development.
Description

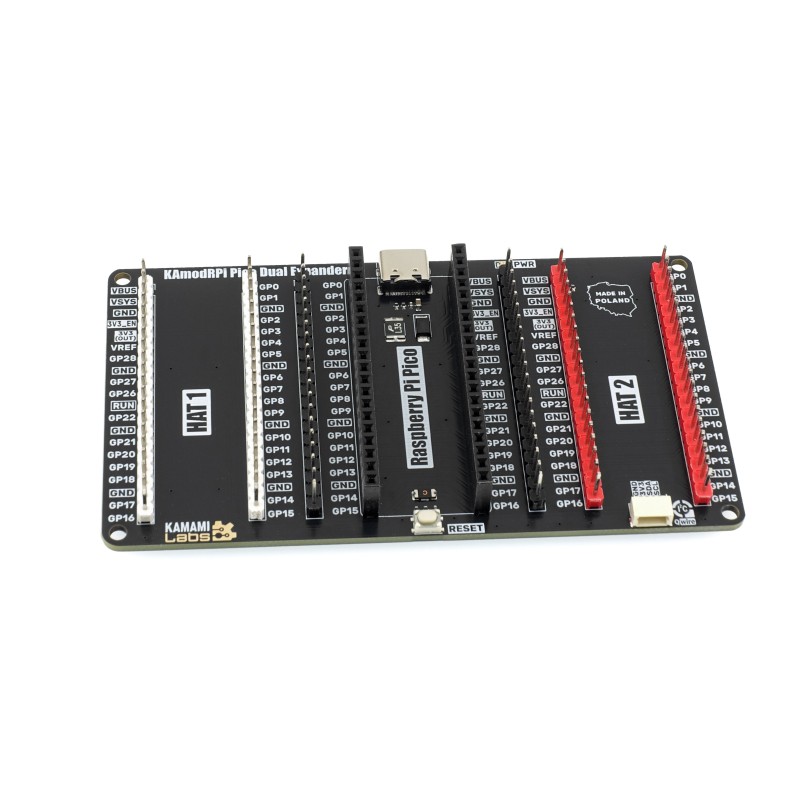

The KAmodRPi Pico Dual Expander module is designed to expand the capabilities of the Raspberry Pi Pico by allowing simultaneous connection of multiple peripheral modules. The board features a 2x20-pin female header for direct insertion of the Raspberry Pi Pico. Two 2x20-pin male headers enable the use of expansions in two directions, and additional 20-pin male headers provide easy access to all Raspberry Pi Pico signals.
The expander includes a USB Type-C power connector that distributes voltage to all connected modules, a RESET button, and a Qwire I2C connector in JST SH format (compatible with Qwiic and STEMMA QT). Clearly labeled pin descriptions are printed on the top of the board, facilitating prototyping and quick project connections. The board measures 59 × 104 mm.
Specifications
- 2x20-pin female header for Raspberry Pi Pico
- Two 2x20-pin male headers for expansions
- Additional 20-pin male headers with full Pico signal access
- USB Type-C power connector for module power distribution
- RESET button
- I2C Qwire connector, JST SH 4-pin 1 mm (compatible with Qwiic / STEMMA QT)
- Labeled pinouts on the top side of the PCB
- Board dimensions: 59 × 104 mm
1197507
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
