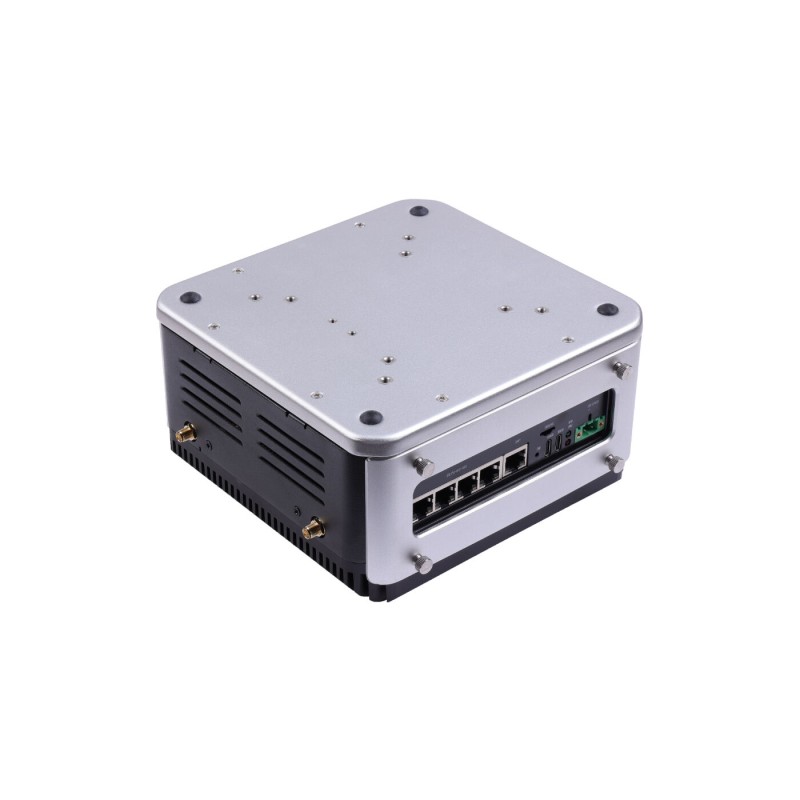

reServer J4012 - industrial AI server with NVIDIA Jetson Orin NX 16GB - Seed Studio 114110247
ID: 1200415
zł6,460.14
Tax included
zł5,252.15 tax excl.
reServer J4012 is an edge server with NVIDIA Jetson Orin NX 16GB offering 100 TOPS performance, designed for video analytics and AI applications in surveillance and IoT systems. Thanks to its fanless design and rich interfaces, it enables reliable operation in industrial applications and environments requiring high stability. Seed Studio 114110247
Description
reServer Industrial J4012 is a fanless industrial edge NVR server based on the NVIDIA Jetson Orin NX 16GB module with computing power up to 100 TOPS. The device is designed for use in video surveillance systems and AI data analytics at the network edge, with the ability to process multiple high-resolution video streams simultaneously. Equipped with five Ethernet ports, including four with PoE, two 2.5" SATA drive bays, RS232/RS422/RS485 interfaces, CAN, and digital inputs/outputs, the reServer J4012 provides a complete platform for intelligent industrial and IoT applications. Passive cooling and a wide power supply range ensure reliability in demanding environmental conditions.
Properties
- Compute module: NVIDIA Jetson Orin NX 16GB
- AI performance: up to 100 TOPS
- GPU: 1024-core NVIDIA Ampere architecture with 32 Tensor cores
- CPU: 8-core Arm Cortex-A78AE v8.2 64-bit
- RAM: 16 GB LPDDR5, 128-bit
- Video decoding: up to 1× 8K30 H.265, 2× 4K60 H.265, 4× 4K30 H.265, 9× 1080p60 H.265, 18× 1080p30 H.265
- Video encoding: up to 1× 4K60 H.265, 3× 4K30 H.265, 6× 1080p60 H.265, 12× 1080p30 H.265
- AI accelerators: 2× NVDLA v2
- Data storage: 1× M.2 NVMe 2280 SSD 128 GB (included), 2× 2.5" SATA drive bays (SATA III 6 Gb/s)
- Networking: 1× RJ45 GbE, 4× RJ45 GbE PoE (802.3af, 15 W)
- USB ports: 4× USB 3.1 Type A, 2× USB 2.0 Type C
- COM ports: 1× DB9 (RS232/RS422/RS485)
- Additional interfaces: 4× DI, 4× DO, CAN, HDMI 1.4
- Expansion: Mini PCIe (e.g. 4G/LoRa), M.2 Key B (3042/3052, 4G/5G), TPM 2.0 (optional)
- SIM slot: 1× Nano SIM
- Power supply: 12–36 V DC (terminal block)
- Cooling: passive, fanless, 1× 5 V PWM fan header
- Dimensions: 194.33 × 187 × 95.5 mm
- Weight: 2.8 kg
- Operating temperature range: -20°C to +60°C (with 0.7 m/s airflow)
- Storage temperature: -40°C to +85°C
- Vibration resistance: 3 Grms (5–500 Hz, 1 h/axis)
- Shock resistance: 50 G, 11 ms
Included
- reServer Industrial J4012 (installed system) ×1
- DIN rail mount ×1
- Mounting screws ×10
- 16-pin terminal block for DIO ×1
- 24 V / 5 A power supply (without power cord) ×1
- 2-pin power terminal block ×1
