- New
A203v2 Carrier Board – expansion board for Jetson Nano / Xavier NX / TX2 NX - Seeed Studio 103110043
ID: 1200453
zł897.40
Tax included
zł729.59 tax excl.
The Seeed Studio A203v2 103110043 board offers a compact design and a wide range of interfaces for projects with Jetson Nano, Xavier NX, and TX2 NX, proving itself in AI applications, robotics, and video analysis in demanding industrial environments. Seeed Studio 103110043
Description

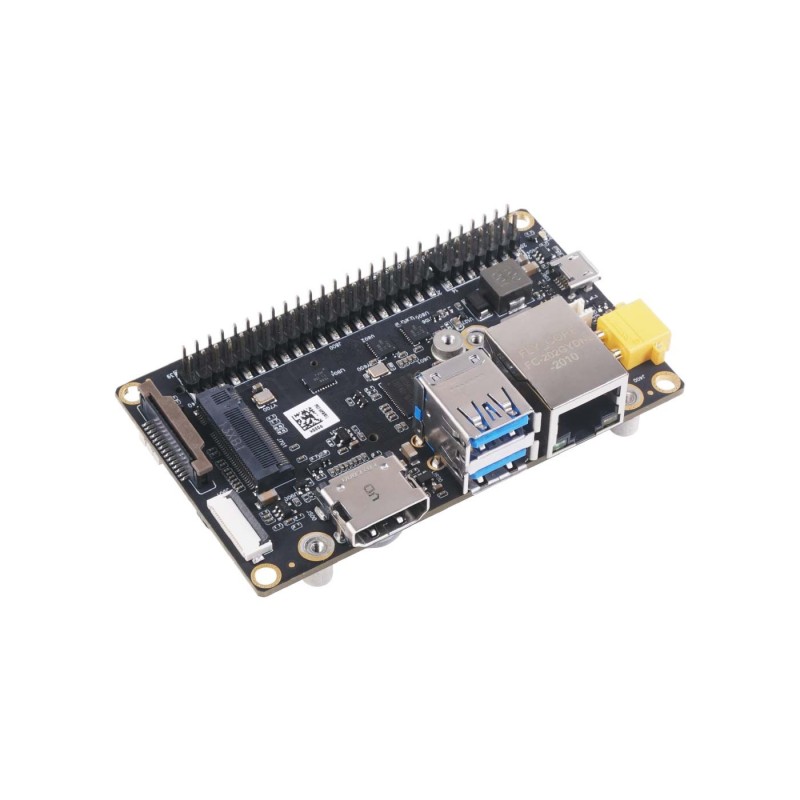

The A203v2 board from Seeed Studio is a modernized version of the A203 board, designed to work with NVIDIA Jetson Nano, Xavier NX, and TX2 NX modules. Compact dimensions and a rich set of communication interfaces make it suitable for autonomous robotic systems, image analysis, and projects using AI in sectors such as logistics, agriculture, industry, and commerce. The board offers support for wireless communication (WiFi/Bluetooth), data storage (M.2 SSD and microSD), as well as integration with CSI cameras and HDMI displays. 19 V DC power supply, support for a fan, and GPIO, UART, CAN, and SPI connectors allow flexible integration with many edge applications.

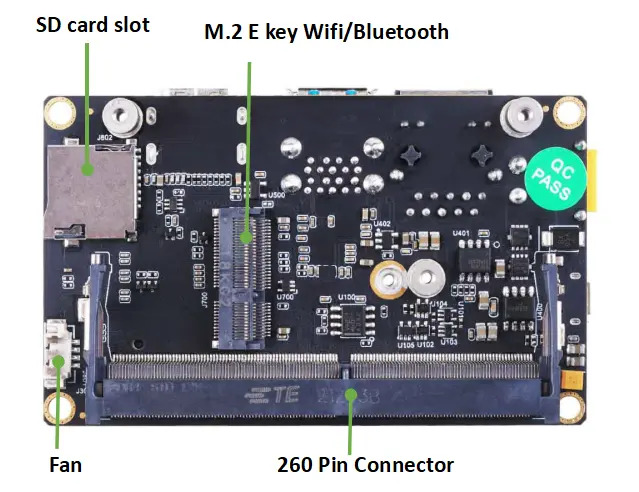

Properties
- Compatibility with Jetson Nano, Xavier NX, and TX2 NX
- 1x M.2 Key M slot (2242 SSD)
- 1x microSD card slot
- 1x RJ-45 Gigabit Ethernet (10/100/1000M)
- 1x M.2 Key E PCIe 2230 slot (WiFi/Bluetooth modules)
- 2x USB 3.0 Type-A
- 1x USB 2.0 Micro-B
- 1x USB 3.0 ZIF (20-pin, 0.5 mm)
- 1x CSI
- 1x HDMI (vertical angle connector)
- 1x fan connector (Picoblade)
- 1x 40-pin 2.0 mm connector (UART, GPIO, SPI)
- 1x 14-pin 2.0 mm connector (Reset, CAN, Recovery)
- 1x RTC 3 V connector (2-pin)
- Power supply: 19 V / 4.74 A
- Dimensions: 87 × 52 × 26 mm
- Operating temperature range: -25°C to 65°C
Included
- A203v2 board x1
- 90 W / 19 V power supply (without power cable) x1
- XT30 adapter cable (female) – DC plug x1
