A205 Carrier Board for Jetson Nano / Xavier NX / TX2 NX - Seeed Studio 114110048
ID: 1200455
zł2,001.03
Tax included
zł1,626.85 tax excl.

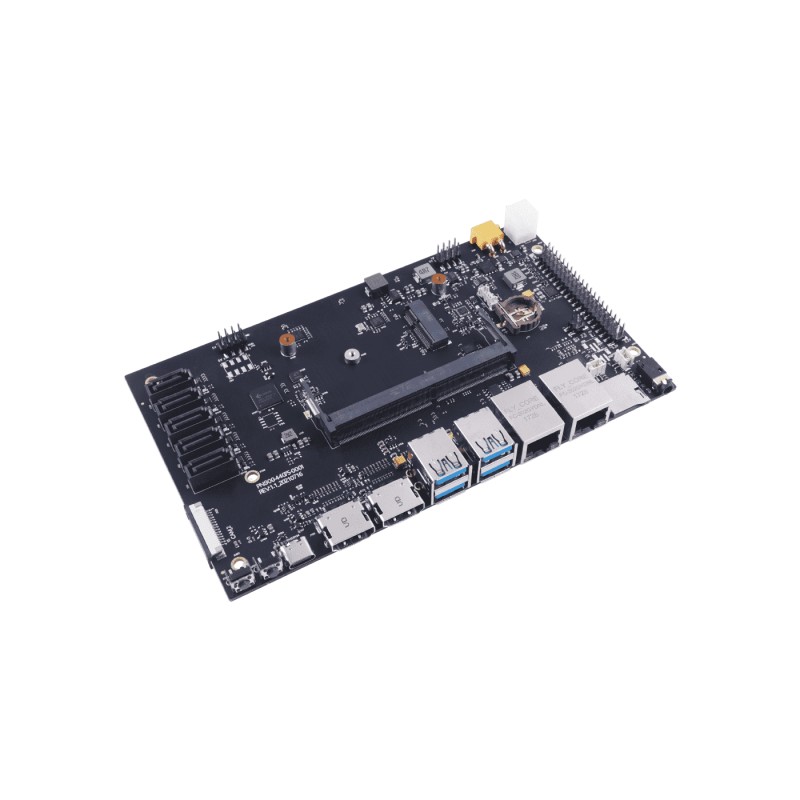

The A205 Carrier Board Seeed Studio offers a rich set of interfaces for Jetson Nano, Xavier NX, and TX2 NX modules, enabling the creation of AI edge applications in industry and robotics. Equipped with SATA, CSI, HDMI, USB, and M.2, it supports machine vision systems, AMR, and video analysis.
Description

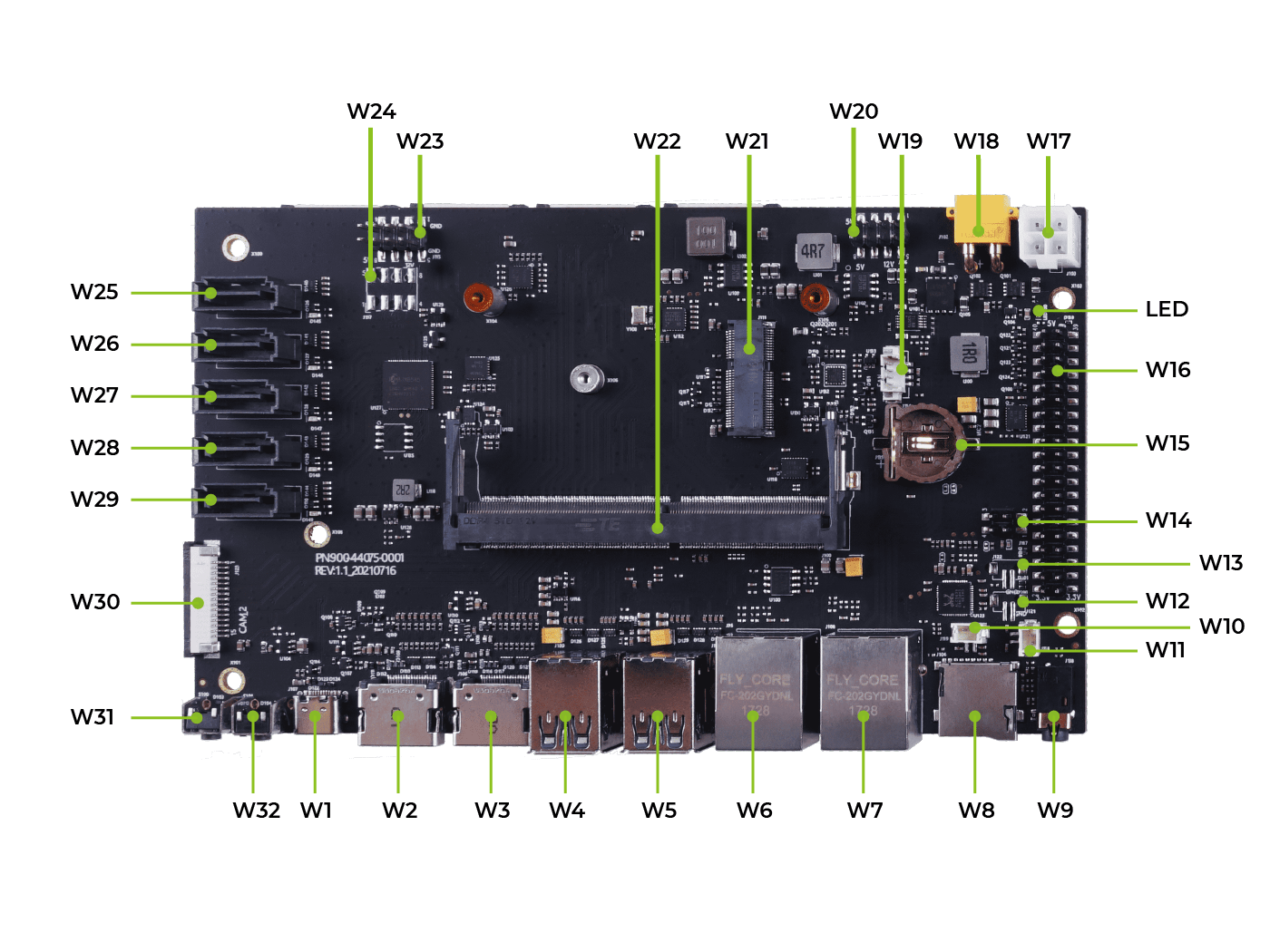

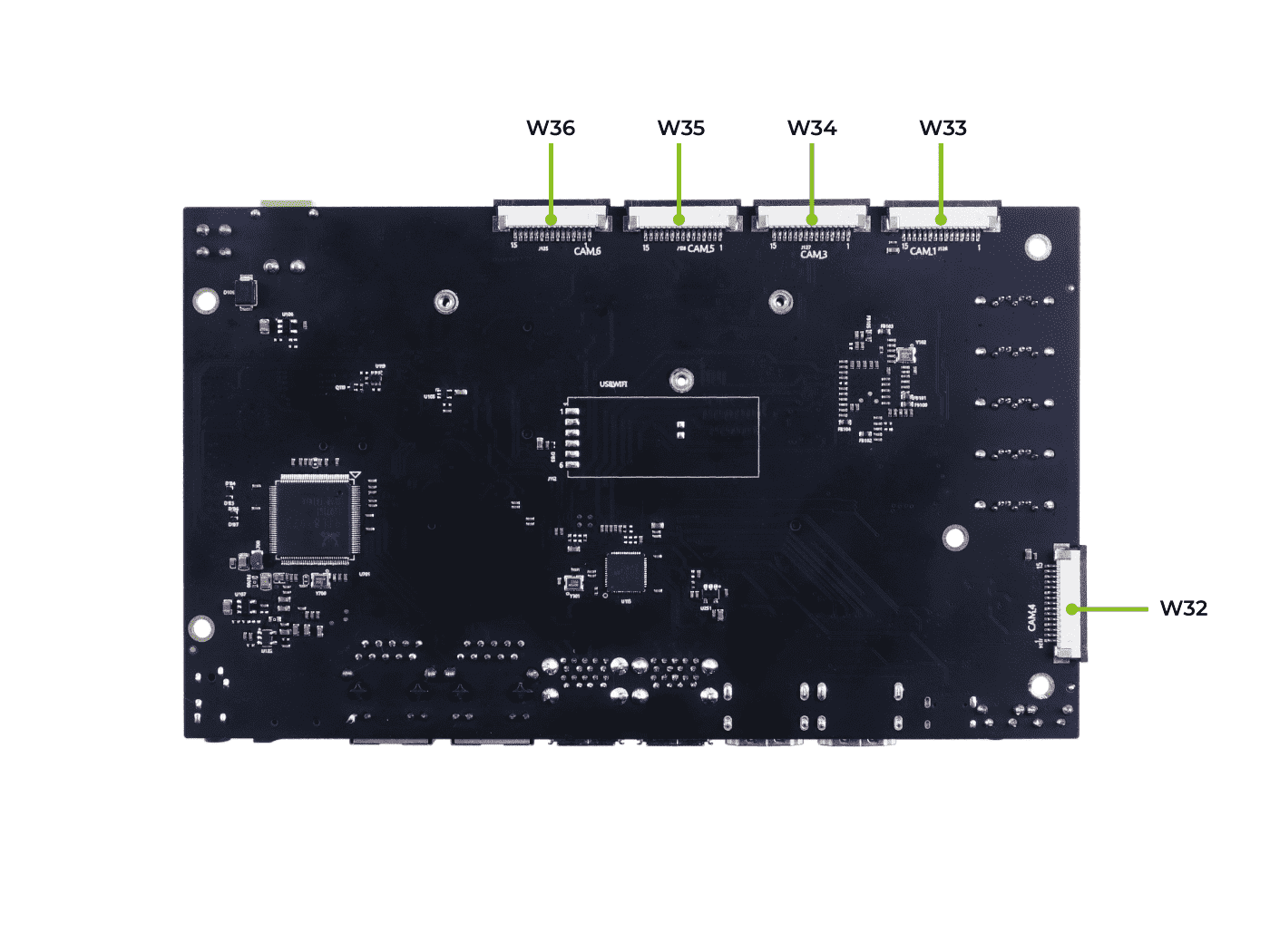

The A205 Carrier Board from Seeed Studio is an advanced expansion platform designed for NVIDIA Jetson Nano, Xavier NX, and TX2 NX compute modules (modules sold separately). With a rich set of interfaces such as 5 SATA connectors, 6 MIPI CSI-2 camera connectors, two HDMI ports, an M.2 Key E slot, and two 1 Gb/s Ethernet ports, the board enables the development of high-performance AI edge systems. It supports multiple applications in robotics, autonomous mobile systems (AMR), AI-powered video analytics, and industrial vision inspection systems.
The A205 board also provides a wide power supply range (13–19 V DC), a rich set of communication interfaces (UART, I2C, SPI, GPIO), and support for system updates via USB recovery mode. The enclosure with dimensions of 170 × 100 mm is adapted to operate in temperatures from -25°C to 80°C, making it suitable for industrial applications in manufacturing, logistics, agriculture, and retail sectors.
Properties
- Compatibility: NVIDIA Jetson Nano, Xavier NX, TX2 NX
- Power supply: 13–19 V DC @ 8 A
- Storage: 5 × SATA, 1 × TF Card slot
- Network: 2 × Gigabit Ethernet (10/100/1000 Mb/s)
- USB: 4 × USB 3.0 Type A, 1 × USB 2.0 Type C (OTG)
- Camera: 6 × MIPI CSI-2
- Display: 2 × HDMI
- Cooling: 2 × 12 V/5 V fans, 1 × 5 V PWM fan
- Audio: 1 × audio jack, 2 × microphone, 2 × 1 W speaker
- 2 × I2C (+3.3 V)
- 2 × SPI (+3.3 V)
- 2 × GPIO (+3.3 V)
- 1 × UART (+3.3 V)
- 1 × SPI bus
- 1 × system control
- 1 × power control
- 1 × status LED
- M.2 interface: 1 × M.2 Key E
- Dimensions: 170 × 100 mm
- Operating temperature: from -25°C to +80°C
Set includes
- 1 × A205 Carrier Board
- 1 × 19 V / 4.74 A power supply (90 W, without power cord)
1200455
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
