reServer J4011 - industrial AI server with NVIDIA Jetson Orin NX 8GB - Seeed Studio 114110248
search
  • reServer J4011 - industrial AI server with NVIDIA Jetson Orin NX 8GB - Seeed Studio 114110248
ID: 1200414
zł5,345.37
Tax included

zł4,345.83 tax excl.

reServer J4011 is a compact, fanless AI server with Jetson Orin NX 8GB, providing 70 TOPS computing power and extensive expansion and communication options. Dedicated to surveillance systems, video analytics, and IoT applications, it offers stable operation in demanding industrial conditions. Seeed Studio 114110248

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

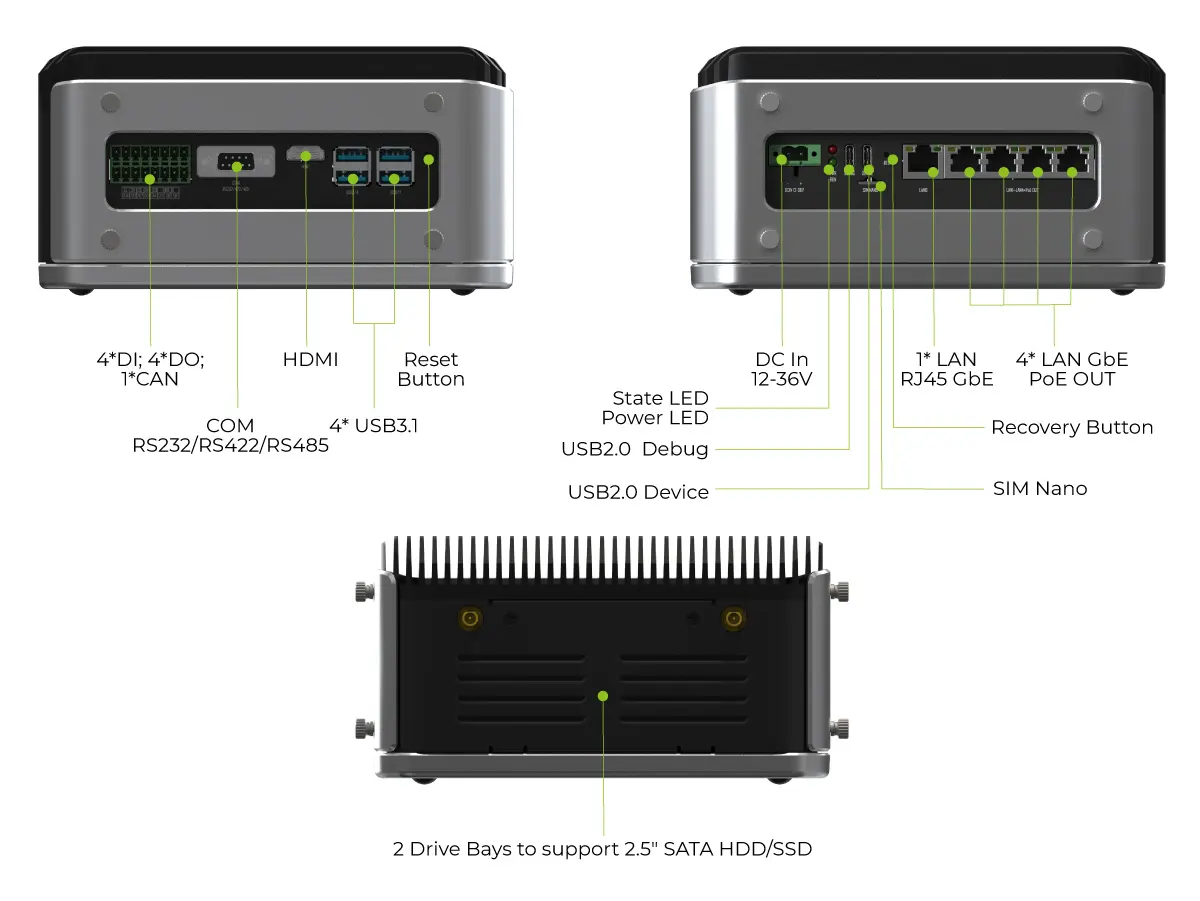

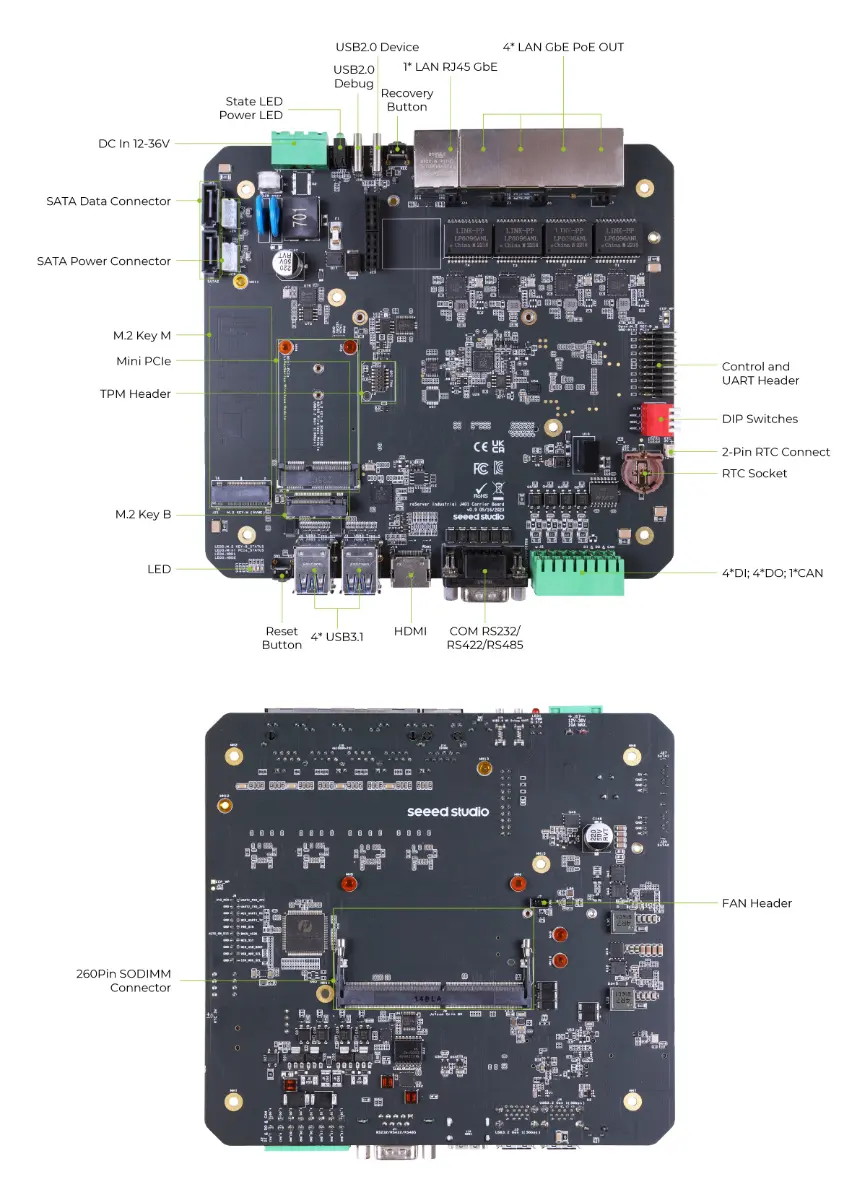

reServer Industrial J4011 is a fanless edge NVR server with the NVIDIA Jetson Orin NX 8GB module, offering AI performance up to 70 TOPS. The device supports and processes multiple video streams in real time, enabling the deployment of advanced image analytics solutions in surveillance systems and industrial applications. The server is equipped with five network ports (including four with PoE), two bays for 2.5" SATA drives, RS232/RS422/RS485 serial ports, a CAN interface, and digital inputs/outputs. Passive cooling, wide power supply range, and robust design ensure reliable operation in harsh environmental conditions. The package includes a preinstalled JetPack system.

Properties

  • Compute module: NVIDIA Jetson Orin NX 8GB
  • AI performance: up to 70 TOPS
  • GPU: 1024-core NVIDIA Ampere architecture with 32 Tensor cores
  • CPU: 6-core Arm Cortex-A78AE v8.2 64-bit
  • RAM: 8 GB LPDDR5, 128-bit
  • Video decoding: up to 1× 8K30 H.265, 2× 4K60 H.265, 4× 4K30 H.265, 9× 1080p60 H.265, 18× 1080p30 H.265
  • Video encoding: up to 1× 4K60 H.265, 3× 4K30 H.265, 6× 1080p60 H.265, 12× 1080p30 H.265
  • AI accelerators: 1× NVDLA v2
  • Data storage: 1× M.2 NVMe 2280 SSD 128 GB (included), 2× 2.5" SATA drive bays (SATA III 6 Gb/s)
  • Networking: 1× RJ45 GbE, 4× RJ45 GbE PoE (802.3af, 15 W)
  • USB ports: 4× USB 3.1 Type A, 2× USB 2.0 Type C
  • COM ports: 1× DB9 (RS232/RS422/RS485)
  • Additional interfaces: 4× DI, 4× DO, CAN, HDMI 1.4
  • Expansion: Mini PCIe (e.g. 4G/LoRa), M.2 Key B (3042/3052, 4G/5G), TPM 2.0 (optional)
  • SIM slot: 1× Nano SIM
  • Power supply: 12–36 V DC (terminal block)
  • Cooling: passive, fanless, 1× 5 V PWM fan header
  • Dimensions: 194.33 × 187 × 95.5 mm
  • Weight: 2.8 kg
  • Operating temperature range: -20°C to +60°C (with 0.7 m/s airflow)
  • Storage temperature: -40°C to +85°C
  • Vibration resistance: 3 Grms (5–500 Hz, 1 h/axis)
  • Shock resistance: 50 G, 11 ms

Included

  • reServer Industrial J4011 (installed system) ×1
  • DIN rail mount ×1
  • Mounting screws (Bracket Bolt) ×10
  • 16-pin terminal block for DIO ×1
  • 24 V / 5 A power supply (without power cord) ×1
  • 2-pin power terminal block ×1
