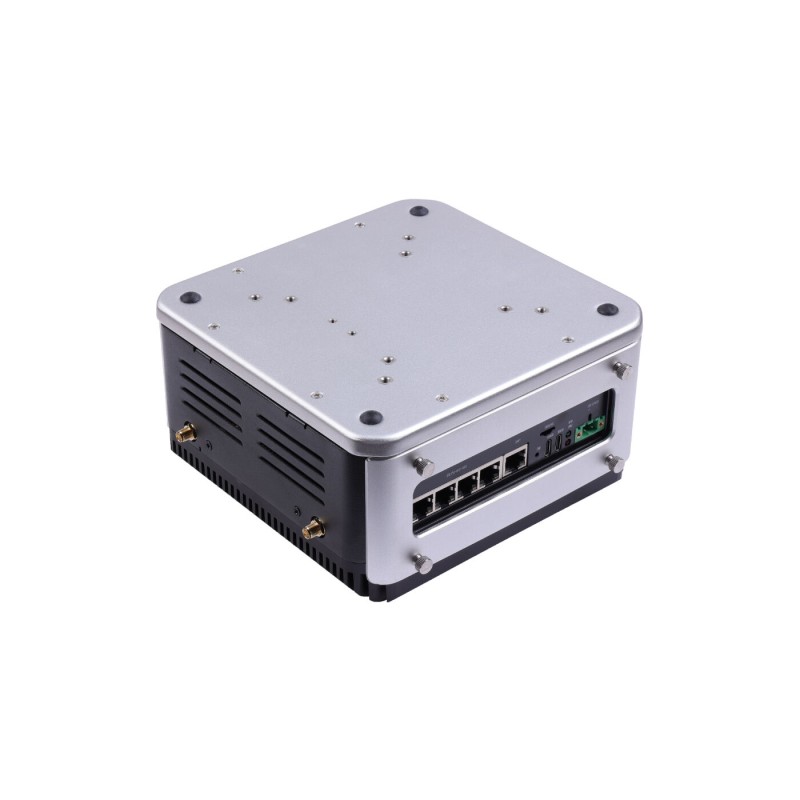

reServer J3010 - industrial AI server with Jetson Orin Nano 8GB - Seeed Studio 114110249
search
  • reServer J3010 - industrial AI server with Jetson Orin Nano 8GB - Seeed Studio 114110249
ID: 1200413
zł4,787.97
Tax included

zł3,892.66 tax excl.

reServer J3010 is a fanless NVR server with a Jetson Orin Nano 8GB module, designed for AI applications in industry, surveillance, and video analytics systems. It offers high processing performance, a wide range of interfaces, and the ability to integrate with IP cameras and IoT systems at the network edge. Seeed Studio 114110249

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

reServer Industrial J3010 is an industrial NVR server designed for edge computing, equipped with the NVIDIA Jetson Orin Nano 8GB module, offering computing performance up to 20 TOPS. The fanless passive cooling design makes the device suitable for environments requiring quiet and reliable operation. The server supports up to five Ethernet ports (including four with PoE), enabling direct powering and handling of IP cameras and network devices. With extensive functionality such as two 2.5" SATA drive bays, CAN interface, RS232/RS422/RS485 ports, and digital inputs/outputs, the reServer provides a comprehensive platform for vision systems, surveillance, and AI edge processing. The set includes a preinstalled JetPack system.

Properties

  • Compute module: NVIDIA Jetson Orin Nano 8GB
  • AI performance: 20 TOPS
  • GPU: 512-core NVIDIA Ampere architecture with 16 Tensor cores
  • CPU: 6-core Arm Cortex-A78AE 64-bit (1.5 MB L2 + 4 MB L3)
  • RAM: 8 GB LPDDR5 (64-bit, 34 GB/s)
  • Video encoding: 1080p30 (CPU-supported)
  • Video decoding: up to 1× 4K60 H.265, 2× 4K30 H.265, 5× 1080p60 H.265, 11× 1080p30 H.265
  • 1× M.2 NVMe 2280 SSD 128 GB (included)
  • 2× 2.5" SATA III (6 Gb/s) drive bays
  • 1× RJ45 GbE
  • 4× RJ45 GbE with PoE (PSE 802.3af, 15 W)
  • USB ports: 4× USB 3.1 Type A, 2× USB 2.0 Type C
  • COM ports: 1× RS232/RS422/RS485 (DB9)
  • DI/DO: 4× DI, 4× DO, 3× GND_DI, 2× GND_DO, 1× GND_ISO
  • CAN: 1× CAN interface
  • Display: 1× HDMI 1.4
  • 1× Mini PCIe (e.g., for 4G/LoRa)
  • 1× M.2 Key B (3042/3052, for 4G/5G)TPM: TPM 2.0 header (optional module)
  • SIM card slot: 1× Nano SIM
  • Cooling: passive heatsink (fanless), 1× 5 V PWM fan header
  • Power supply: 12–36 V DC (2-pin terminal block)
  • Mounting: desktop, DIN rail, or VESA
  • Dimensions: 194.33 × 187 × 95.5 mm
  • Weight: 2.8 kg
  • Operating temperature range: -20°C to +60°C (with 0.7 m/s airflow)
  • Operating humidity: up to 95% @ 40°C (non-condensing)
  • Storage temperature: -40°C to +85°C
  • Vibration resistance: 3 Grms, 5–500 Hz
  • Shock resistance: 50G, 11 ms (for eMMC, microSD, mSATA drives)
  • System: JetPack (preinstalled)

Included

  • reServer Industrial J3011 (installed system) ×1
  • DIN rail mount ×1
  • Mounting screws (Bracket screw) ×10
  • 16-pin terminal block for DIO ×1
  • 24 V / 5 A power supply (without power cord) ×1
  • 2-pin power terminal block ×1
